Why are the pipes behind a fridge warm?

Refrigerators are essential appliances in modern households, keeping food fresh and safe by maintaining cool temperatures inside their compartments. Despite the cold interior, many people notice that the pipes or coils located behind or underneath the refrigerator are warm to the touch. This observation raises a fundamental question: why does a machine designed to cool things have warm components?

The answer lies in the principles of thermodynamics and the mechanics of the refrigeration cycle. The warmth of these pipes is a direct consequence of how refrigerators transfer heat from inside their compartments to the surrounding environment. In this essay, we will explore the reasons behind this phenomenon, examining the scientific and practical mechanisms of refrigeration, the role of heat exchange, and the efficiency implications of this system.

The Basics of Refrigeration

To understand why the pipes behind a refrigerator are warm, it is essential to grasp the underlying science of refrigeration. At its core, a refrigerator operates by removing heat from its interior and releasing it into the surrounding environment. This process involves the transfer of thermal energy from a colder region to a warmer one, which seems counterintuitive at first glance.

This transfer is made possible through the refrigeration cycle, which relies on a working fluid known as a refrigerant. The refrigerant undergoes phase changes and circulates through a closed-loop system, absorbing heat inside the refrigerator and releasing it outside. The refrigeration cycle consists of four main stages:

1. Compression
2. Condensation
3. Expansion
4. Evaporation

The Refrigeration Cycle and Heat Transfer

The warmth of the pipes can be explained by analysing the role of each stage in the refrigeration cycle:

1. Compression:

   • The refrigerant enters the compressor as a low-pressure, low-temperature gas. The compressor, typically located at the back or bottom of the refrigerator, compresses the refrigerant, increasing its pressure and temperature.
   • During compression, energy is added to the refrigerant in the form of work, causing it to become a high-pressure, high-temperature gas.
   • This step is key to preparing the refrigerant for the next stage: condensation.

2. Condensation:

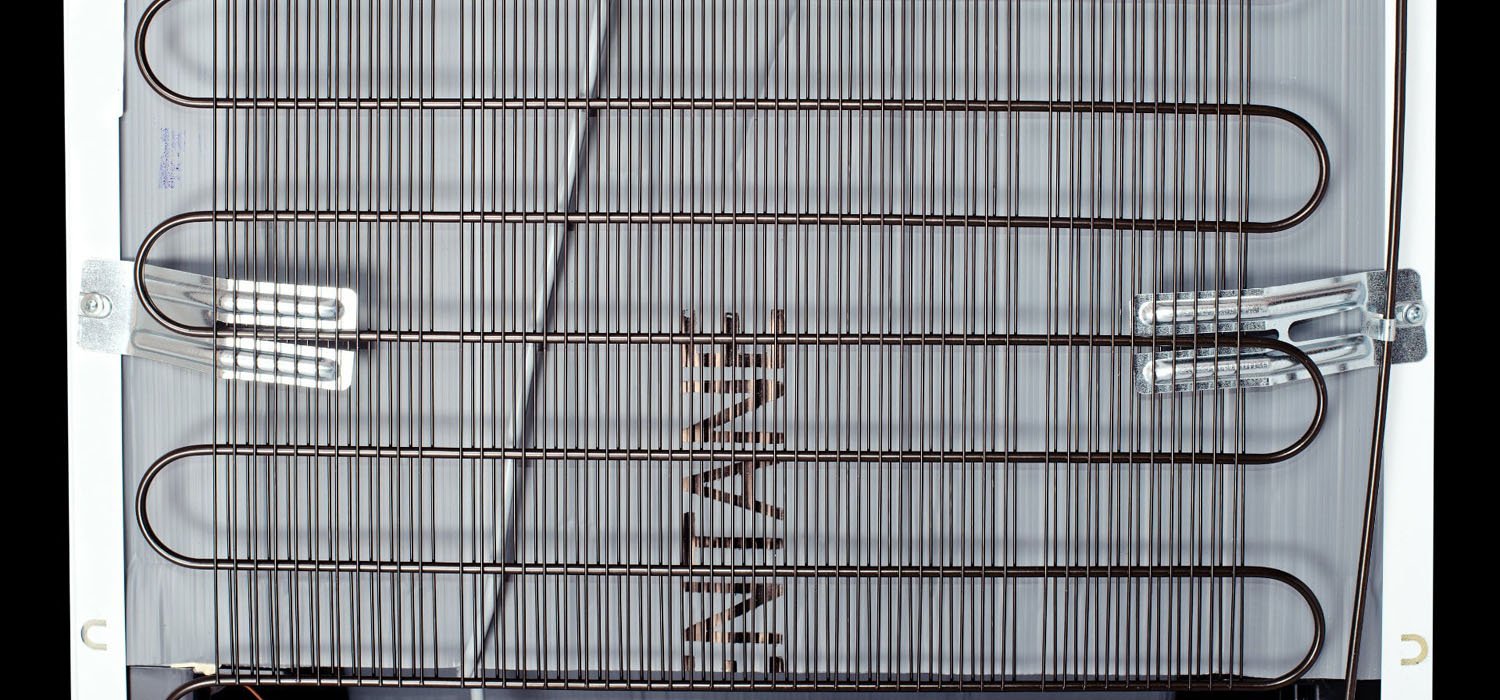

   • The high-pressure, high-temperature refrigerant gas flows through a series of coils or pipes, commonly referred to as the condenser coils. These are often located behind or beneath the refrigerator.
   • As the refrigerant travels through the condenser coils, it releases the heat it absorbed earlier in the cycle, as well as the heat generated during compression. This heat is transferred to the surrounding air, which is why the pipes feel warm to the touch.
   • The refrigerant cools and condenses into a high-pressure liquid during this stage.

3. Expansion:

   • The refrigerant passes through an expansion valve, where its pressure drops suddenly. This drop in pressure causes the refrigerant to cool significantly, preparing it to absorb heat in the next stage.
   • The expansion process transforms the refrigerant into a low-pressure, low-temperature mixture of liquid and gas.

4. Evaporation:

   • Inside the refrigerator, the refrigerant flows through the evaporator coils. Here, it absorbs heat from the refrigerator's interior, cooling the contents.
   • As the refrigerant absorbs heat, it evaporates into a low-pressure gas, which then returns to the compressor to begin the cycle anew.

Why Are the Pipes Warm?

The warmth of the pipes behind a refrigerator is primarily due to the condensation stage of the refrigeration cycle. The condenser coils, located on the back or underneath the refrigerator, are designed to release the heat absorbed from the refrigerator's interior, as well as the heat generated during the compression stage. This heat dissipation is crucial for the refrigerator's operation.

1. Heat Absorbed from the Interior:

   • When the refrigerant passes through the evaporator coils inside the refrigerator, it absorbs heat from the air and the stored food. This heat is carried by the refrigerant to the condenser coils, where it is released into the surrounding environment.

2. Heat from Compression:

   • Compressing the refrigerant gas requires mechanical work, which adds energy to the system. This energy manifests as additional heat, which is also dissipated through the condenser coils.

3. Design of the Coils:

   • The pipes or coils are designed with a large surface area to facilitate efficient heat transfer. They are often made of thermally conductive materials like copper or aluminium, which enhance the dissipation of heat into the surrounding air.

4. Location and Ventilation:

   • The placement of the condenser coils at the back or bottom of the refrigerator allows the warm air to rise and dissipate naturally. Some refrigerators are equipped with fans to improve airflow and enhance cooling efficiency.

Energy Efficiency and Implications

The warmth of the pipes is not a sign of inefficiency; rather, it indicates that the refrigerator is working as intended. However, the efficiency of the heat transfer process can impact the overall energy consumption of the appliance. Factors that influence efficiency include:

1. Airflow Around the Coils:

   • Poor ventilation or dust accumulation on the condenser coils can reduce heat dissipation, forcing the compressor to work harder and consume more energy. Regular cleaning of the coils is essential to maintain efficiency.

2. Ambient Temperature:

   • In warmer environments, the heat dissipation process becomes less effective, as the temperature difference between the coils and the surrounding air is smaller. This can lead to increased energy usage.

3. Refrigerant Type:

   • The choice of refrigerant impacts the efficiency and environmental impact of the refrigeration cycle. Modern refrigerators use environmentally friendly refrigerants with low global warming potential (GWP), which are designed to optimize performance.

4. Insulation Quality:

   • Good insulation minimizes heat transfer into the refrigerator, reducing the workload on the refrigeration system and, consequently, the amount of heat released by the pipes.

Environmental Considerations

The warmth of the pipes also highlights the broader energy and environmental considerations associated with refrigeration. While refrigerators are indispensable, they consume significant amounts of electricity, and their operation contributes to heat generation in indoor spaces.

1. Energy Consumption:

   • The heat released by the pipes is a by-product of the energy consumed by the compressor. Using energy-efficient models and maintaining the appliance properly can reduce electricity usage.

2. Waste Heat:

   • In well-insulated homes, the heat released by the refrigerator's pipes can contribute to the indoor temperature, which may affect heating and cooling demands.

3. Refrigerant Impact:

   • The transition to low-GWP refrigerants has reduced the environmental impact of refrigerators, but the heat dissipation process remains an area of interest for improving energy efficiency.

Practical Observations and Maintenance

Understanding why the pipes are warm can help users maintain their refrigerators and optimize their performance. Some practical tips include:

1. Cleaning the Coils:

   • Dust and debris on the condenser coils act as an insulating layer, reducing heat dissipation. Cleaning the coils periodically ensures efficient operation.

2. Providing Adequate Ventilation:

   • Ensuring sufficient space around the refrigerator allows warm air to dissipate and prevents overheating of the condenser coils.

3. Monitoring Performance:

   • If the pipes become excessively hot or the refrigerator struggles to maintain cool temperatures, it may indicate a malfunction, such as a failing compressor or a refrigerant leak.

Conclusion

The warmth of the pipes behind a refrigerator is a natural and essential part of its operation, driven by the principles of thermodynamics and the refrigeration cycle. By transferring heat from the refrigerator's interior to the surrounding environment, these pipes play a crucial role in maintaining cool temperatures for food storage. Understanding the science behind this phenomenon helps us appreciate the ingenuity of refrigeration technology and underscores the importance of regular maintenance for efficient operation.

In a broader context, the heat dissipation process of refrigerators reflects the interplay between energy use, thermal dynamics, and environmental impact. As technology advances, ongoing efforts to improve the efficiency and sustainability of refrigeration systems will continue to shape their role in modern households.
