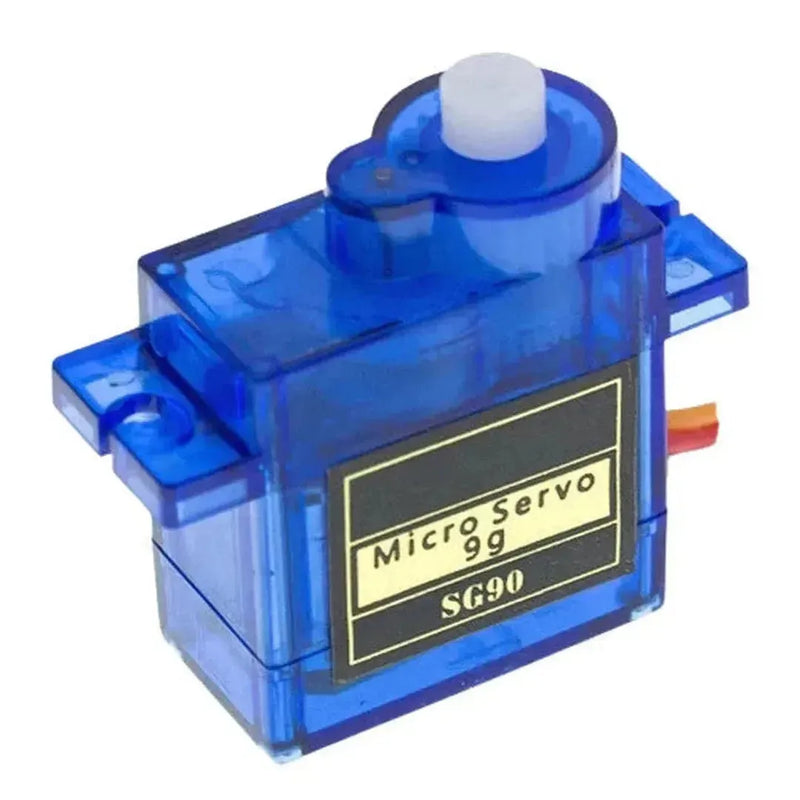

Micro Servo Motor SG90 Gear 9g
Product Overview
Unlock precise motion control in your projects with the SG90 Micro Servo Motor compact, lightweight, and engineered for lasting performance. Ideal for robotics, R/C vehicles, and automated mechanisms, the SG90 delivers fast response times and dependable torque in any DIY or professional setup.
Key Features & Benefits
-
Ultra-Compact & Lightweight
• Dimensions: 22 × 11.5 × 22.5 mm | Weight: 9 g
• Fits into tight spaces and won’t weigh down your design. -
Fast, Accurate Response
• 0.12 s / 60° (no load @ 4.8 V) ensures snappy, precise positioning. -
Strong Stall Torque
• 1 kg·cm (17.5 oz·in) at 4.8 V perfect for small arms, linkages, and control surfaces. -
Durable Construction
• Coreless motor for smooth operation and rapid startup.
• All-nylon gears resist wear while keeping weight to a minimum. -
Vibration-Free Operation
• Dual ball bearings reduce jitter and extend service life. -
Wide Voltage Compatibility
• Operates from 3.0 V to 7.2 V works with most battery packs and regulated supplies. -
Ready-to-Use Connector
• 150 mm three-wire cable (GND, VCC, PWM) for plug-and-play integration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Dimensions | 22 × 11.5 × 22.5 mm |
| Weight | 9 g |
| Speed | 0.12 s / 60° @ 4.8 V (no load) |
| Stall Torque | 1 kg·cm (17.5 oz·in) @ 4.8 V |
| Operating Voltage | 3.0 V–7.2 V |
| Dead Band Width | 7 µs |
| Operating Temp. | –30 °C to +60 °C |
| Connector | 150 mm three-wire cable |
Typical Applications
- Robotics: Articulated arms, grippers, pan-tilt camera mounts
- R/C Models: Steering servos for cars, rudders for boats, control surfaces for planes
- Automation: Precise valve actuators, lock mechanisms, small linear actuators
- DIY & Makers: Animatronics, wearable gadgets, kinetic art installations
Why Choose the SG90?
- Precision & Speed: Rapid 0.12 s response delivers smooth, lifelike motions.
- Longevity: Coreless motor and nylon gears reduce wear, even under repeated cycles.
- Versatility: Broad voltage range and standard PWM interface fit virtually any setup.
- Easy Integration: Pre-wired connector and standardized mounting points get you up and running in minutes.
Package Contents

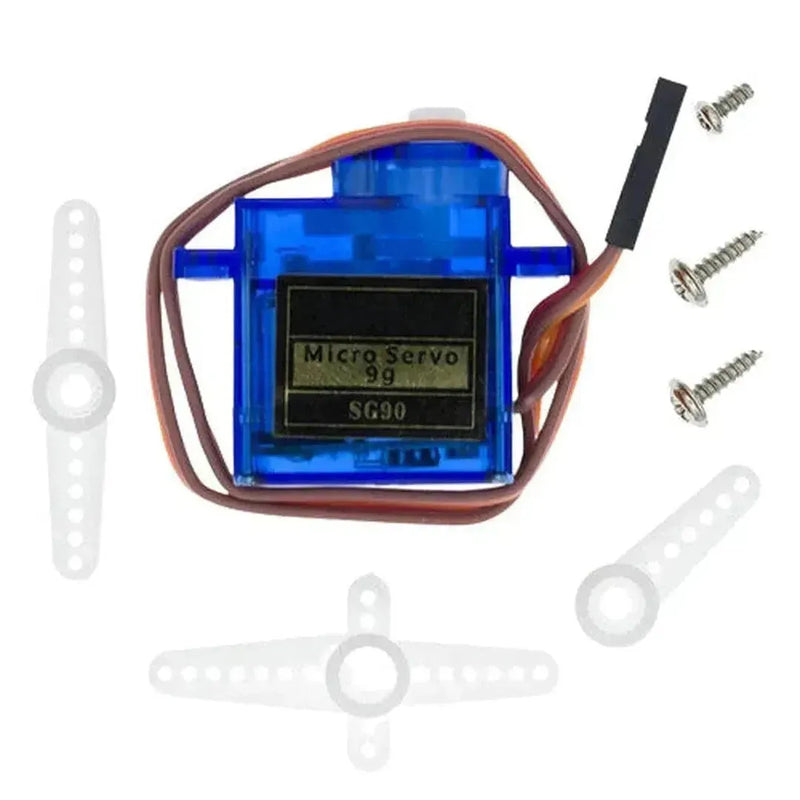

- 1 × SG90 Micro Servo Motor (with 150 mm PWM cable)
Elevate your designs with the SG90’s perfect balance of size, strength, and speed. Order now and bring professional-grade motion control to your next project!
