PanelCraft Hinged Tile Access Panel 600x600mm - Non Fire-Rated Metal - SEL7158-600
Tile-on Metal Access Panel 600x600mm – Non Fire-Rated (SEL7158-600)

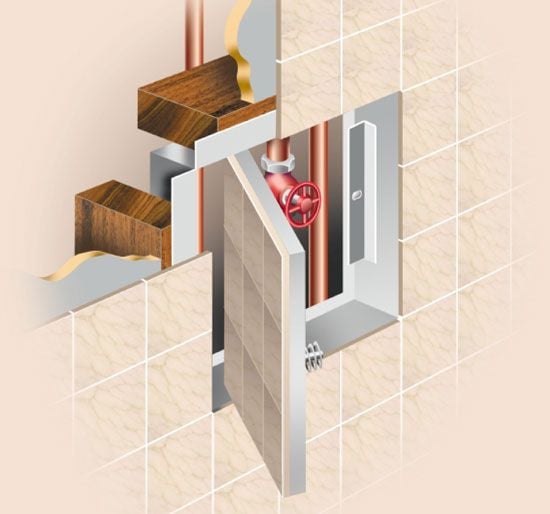

The Tile-on Metal Access Panel 600x600mm, available from Trade Counter Direct, is engineered to provide discreet and secure access to building engineering services concealed behind tiled walls. Suitable for ceramic, marble, or slate tiles, this non fire-rated panel is manufactured from robust Zintec (electro-zinc coated steel) and is designed to ensure a flush, seamless finish with surrounding tiles. The panel must be installed prior to tiling, offering an invisible and practical solution for maintenance access.
This access panel is ideal for both commercial and domestic applications where aesthetics and functionality are paramount. Its removable door and concealed frame make it easy to install and operate, while the touch catch mechanism ensures simple, tool-free access when needed.
Features
- Designed for use with ceramic, marble, or slate tiled walls
- Manufactured from precision-engineered Zintec (electro-zinc coated steel)
- Accommodates tiles up to 10 mm thick for a flush finish
- Concealed frame fixed into the wall prior to tiling for an invisible appearance
- Touch catch (push lock) mechanism as standard
- Removable door allows access without the need for tools
- Easy installation process
- Overall panel depth of 55 mm (excluding tiles)
- Fire-rated version available on request
Specifications
| SKU | SEL7158-600 |
|---|---|
| Range/Series | Tile-on Metal Access Panel |
| Size (Door Opening) | 600 x 600 mm |
| Material | Zintec (Electro-Zinc Coated Steel) |
| Tile Thickness Capacity | Up to 10 mm |
| Overall Depth | 55 mm (excluding tiles) |
| Structural Opening Requirement | Add approximately 23 mm to door opening size |
| Fire Rating | Non fire-rated (fire-rated version available on request) |
