2x uPVC Universal Window Handle Inline Locking Espag Double Glazing White UK

Product Description

Quartus Universal Straight-Lever Espag Window Handle

The Quartus universal window handle features a sleek, stylish appearance, combining high quality with an ergonomic design. It is compatible with various Espag (multi-point locking) and shoot-bolt window locking mechanisms.

Product Information

Universal design suitable for both left- and right-hand opening windows

Secure locking design (cannot be opened simply by manipulating the mechanism)

Screw hole centers: 40mm

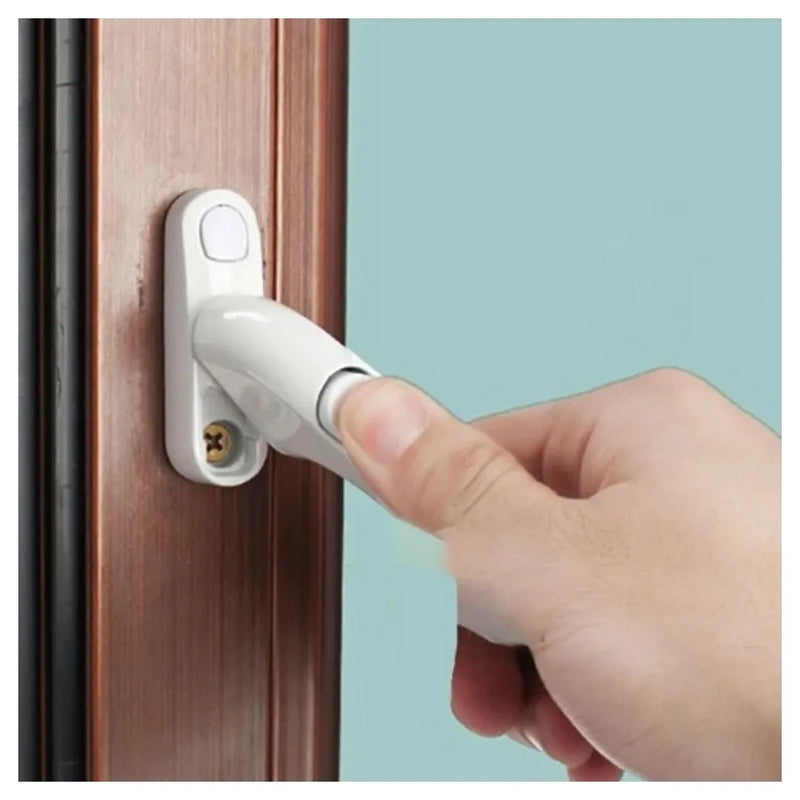

Child-safety feature: requires pressing a button to operate

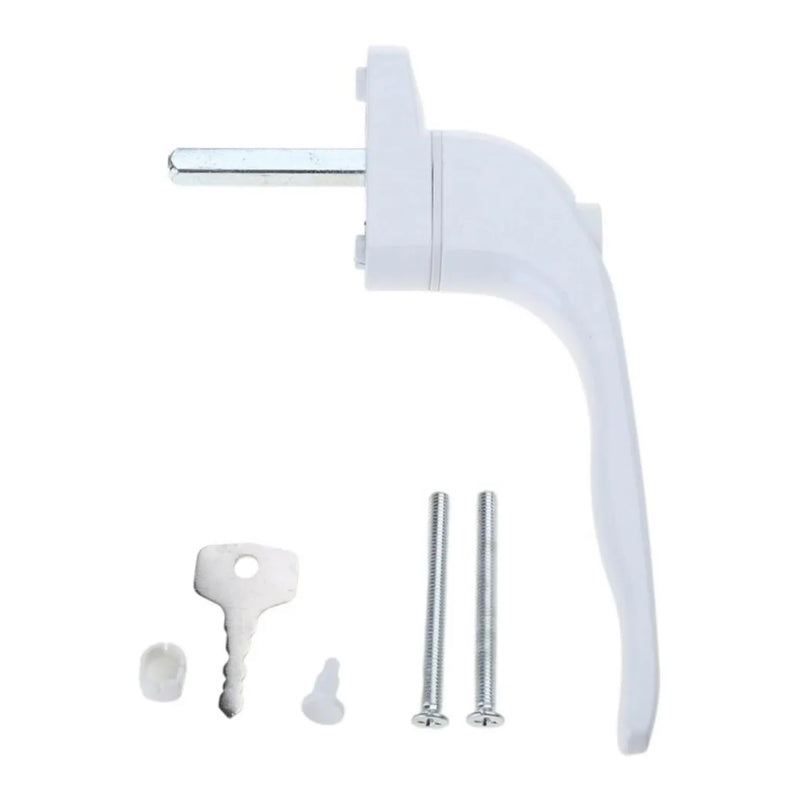

Includes 2 fixing screws per handle

Includes 1 key per handle

Includes 1 screw cover cap per handle

Key Features

New Quartus window handle

High-quality manufacturing

Universal design for left- and right-hand opening windows

Includes all necessary installation hardware (1 key and 1 cover cap per handle)

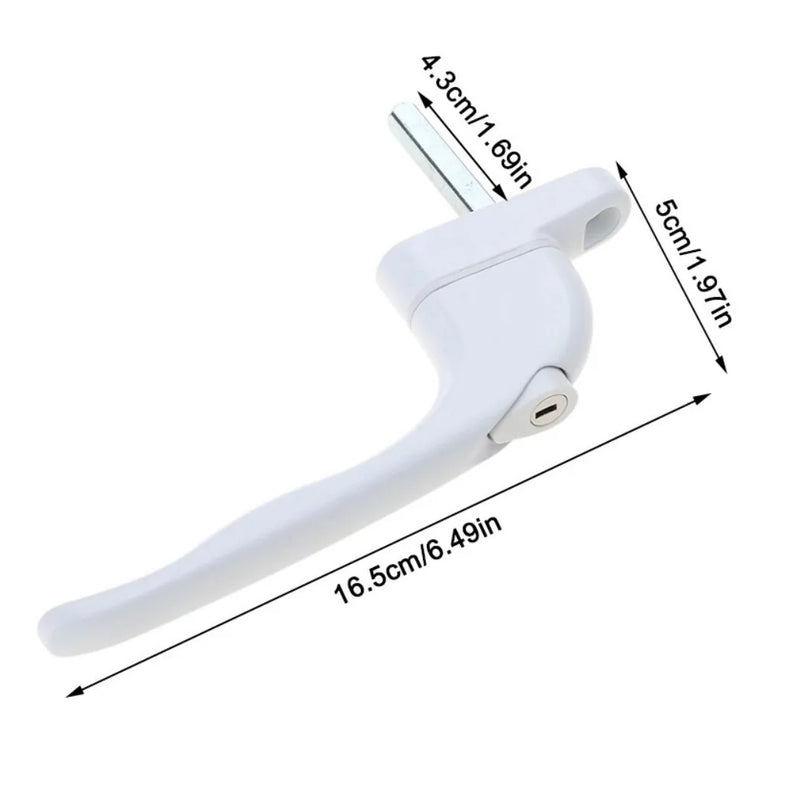

Measuring the Handle

Screw hole centers:

Most Espag handles are manufactured to an industry standard with 43mm screw hole centers. Therefore, as long as the centers measure 43mm, it will fit perfectly, even if the style differs from your existing handle.

Handing (Left/Right):

This is a straight-lever handle (non-handed), making it a universal replacement for both left- and right-hand opening windows.

Spindle length:

Remove the two fixing screws and measure the distance from the base of the handle to the end of the spindle.

Spindle width:

While the vast majority of Espag spindles are 7mm wide (square profile), it is recommended to verify this before ordering, as 8mm versions occasionally exist (commonly found on timber windows).
