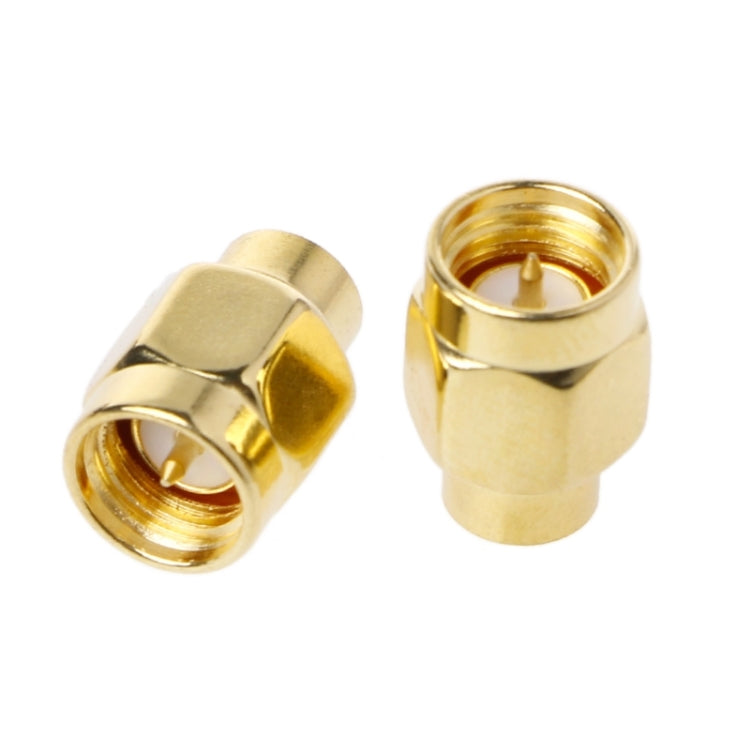

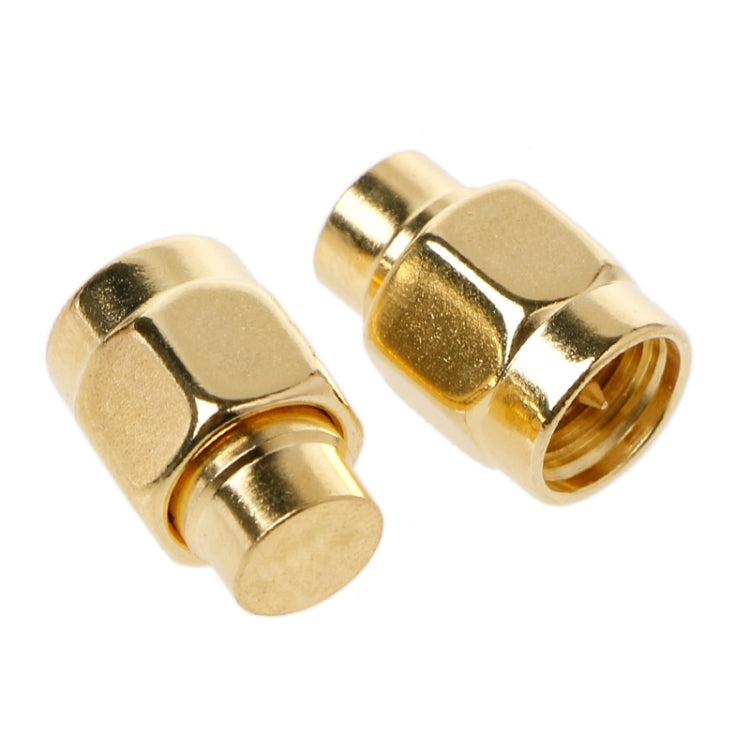

2 PCS 50 Ohm SMA Male Termination Load RF Coaxial Connector, SMA Male Load
2. Vibration: Vibration MIL-STD-202, Method 213
3. Characteristic Impedance: Impedance 50ohm
4. Frequency range: Frequency Range DC ~ 12.4GHz (half just cable 0 ~ 18GHz)
5. Operating voltage: Working Voltage 335V max (RMS)
6. Pressure: Withstand Voltage 1000V rms (sea level minimum)
7. Contact resistance: Contact resistance
8. Between the inner conductors: Center Contact <= 3M ohm
9. Outside conductor: Outer Contact <= 2M ohm
10. Insulation resistance: Insulation resistance >= 5000M ohm
11. Insertion loss: <=0.15 dB / 6 GHz
12. Voltage Standing Wave Ratio:
- Straight: Straight Soft Cable <=1.10 + 0.002f
Semi-Rigid Cable <=1.05 + 0.001f
- Curved: Right angle soft cable <=1.20 + 0.003f
semi-rigid cable <=1.10 + 0.001f
13. Durability (Dating (mating): >= 500 times (cycles)

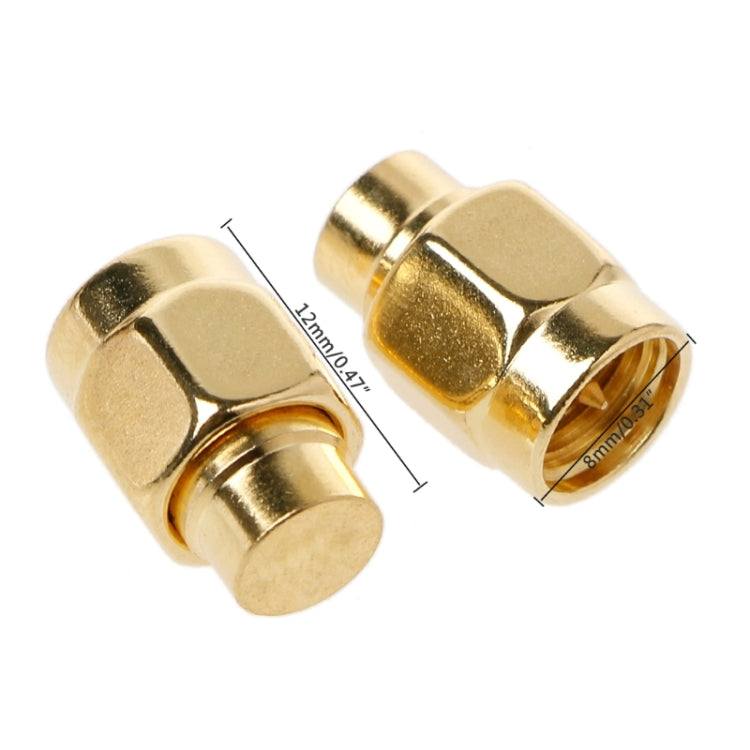

14. Size:12x8mm/0.47x0.31
| Package Weight |
|
