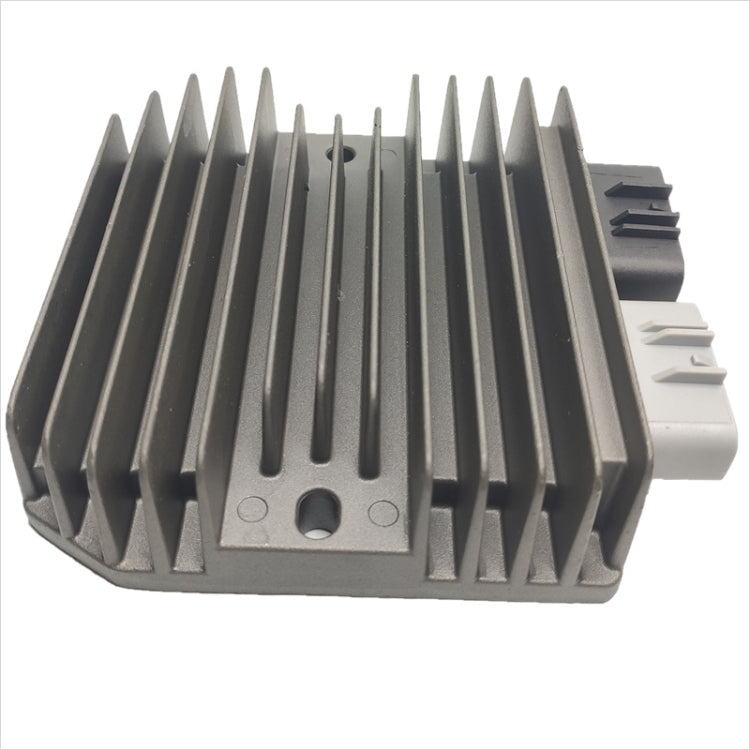

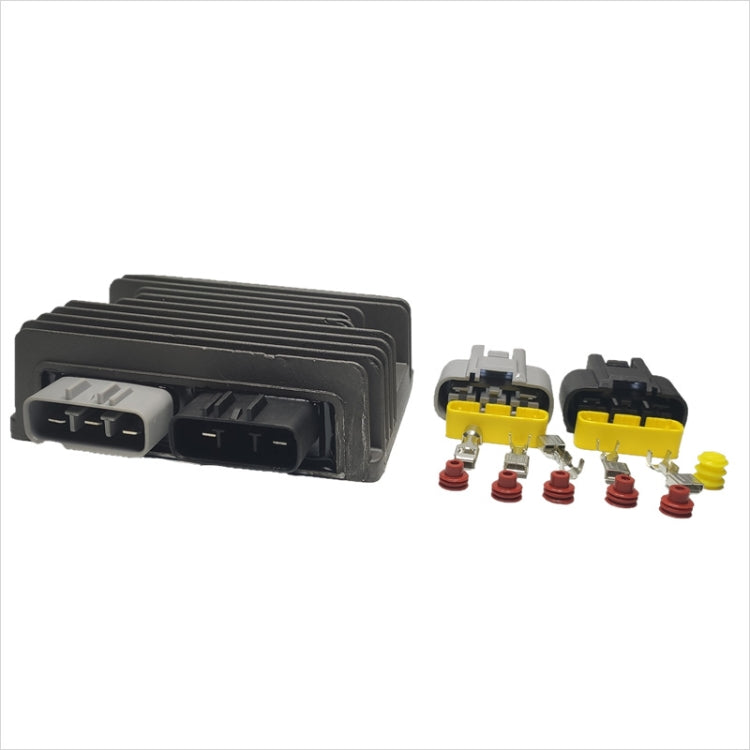

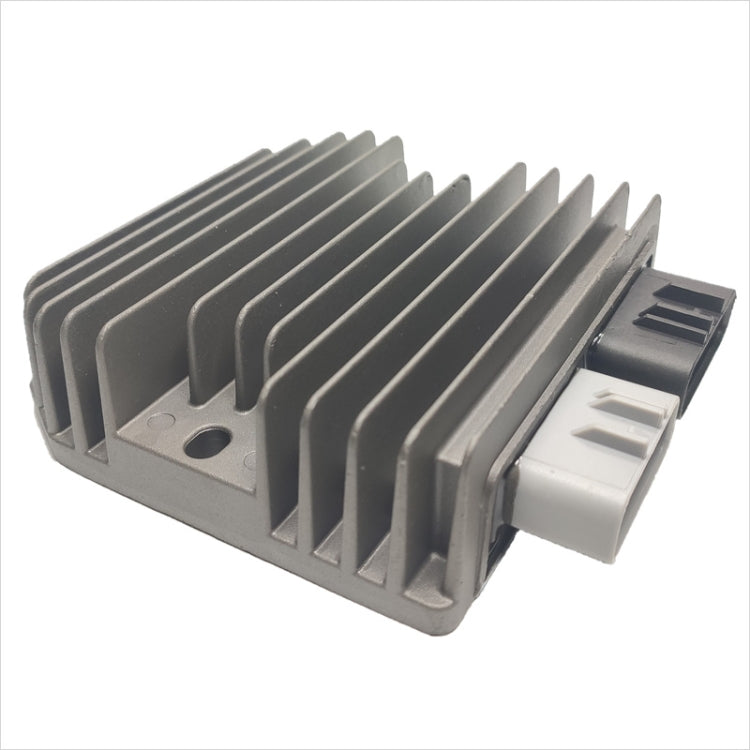

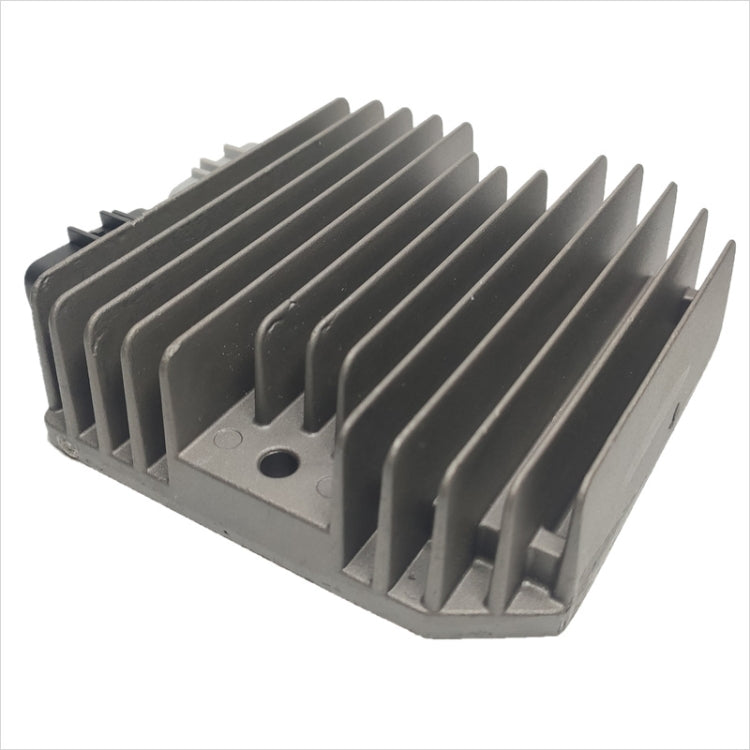

2001E.1 Motorcycle Rectifier For Can-Am Commander 800 4X4 710001191 Bombardier, 2001E.1, 2001E.1(Rectifier + Plug)
1. Weight: 560g
2. Output voltage: 14.5v
3. Output current: 50A
Installation Precautions:
1. The rectifier should be installed in a location with good ventilation and good heat dissipation. High temperature will be generated when the rectifier is working, and poor heat dissipation will damage the rectifier

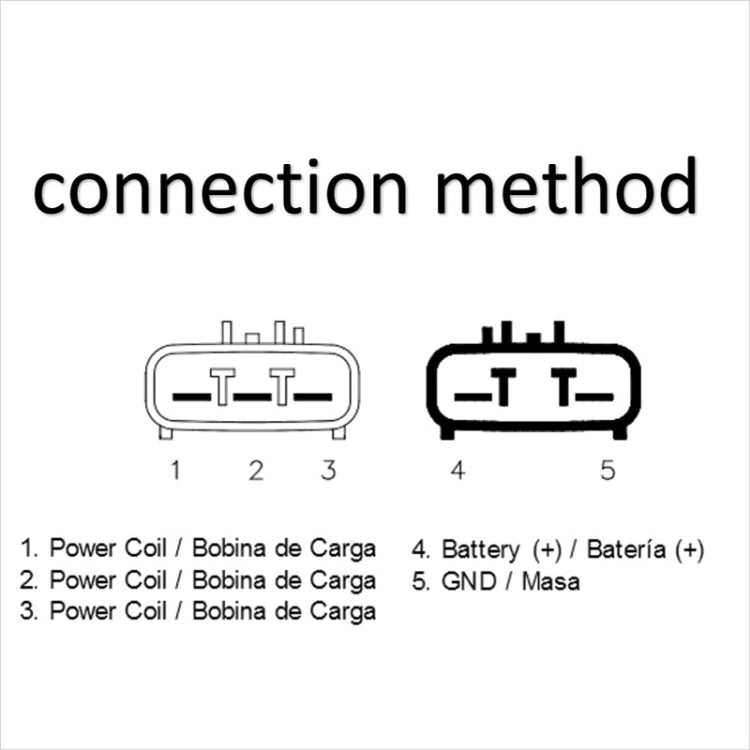

2. The installation steps of the rectifier are to connect the AC input line, the positive and negative output are not connected, start the locomotive, measure the positive and negative output voltage, and when the voltage range is reasonable, plug in the positive and negative wires, and then test the positive and negative of the battery or rectifier If the voltage range is unreasonable, stop using it and give feedback. The entire installation process should be recorded and saved.

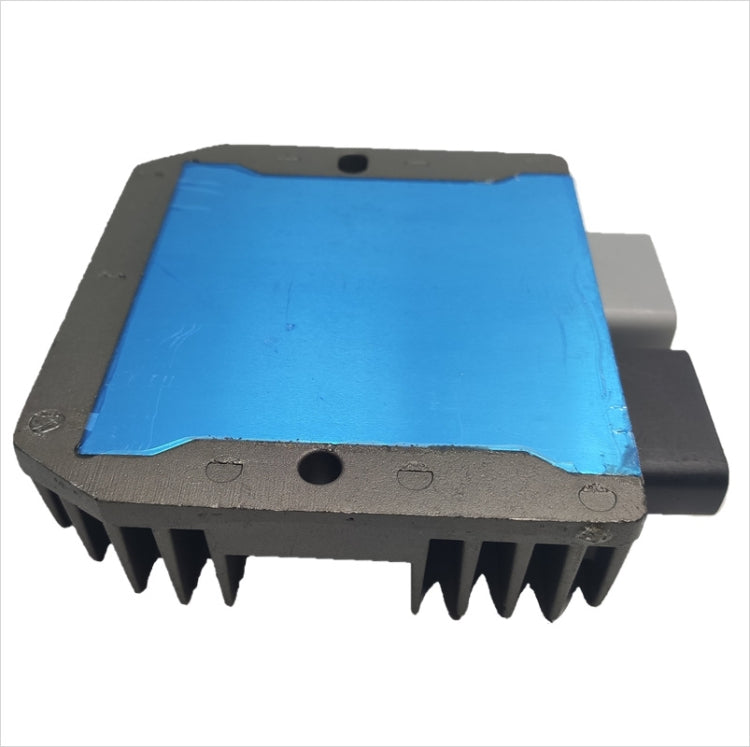

3. Note that the rectifier should be closely attached to the frame when installing it, which is conducive to heat conduction. You can also add thermally conductive glue between the rectifier and the frame
4. Do not press other wires between the rectifier and the frame
5. There should be a fuse protection device between the positive outlet of the rectifier and the battery to prevent the rectifier from being damaged and the voltage is too high and other electrical components are burnt out
Applicable models:
For CAN-AM ATV Outlan r 800R EFI XT-P DPS FH019AA 710001191
For 2015 Can-Am Comman r 800 4X4
For 2015 Can-Am Comman r 800 4x4 DPS
For 2015 Can-Am Comman r 800 4x4 XT
For 2015 Can-Am Comman r 800 4x4 XT rear opening differential
For 2014 Can-Am Comman r 800 4X4
For 2014 Can-Am Comman r 800 4x4 DPS
For 2014 Can-Am Comman r 800 4x4 XT
For 2014 Can-Am Comman r 800 4x4 XT rear opening differential
For 2011 Can-Am Comman r 800 4x4 XT
For 2017 Can-Am Comman r 800R 4X4
For 2017 Can-Am Comman r 800R 4x4 DPS
For 2017 Can-Am Comman r 800R 4x4 XT DPS
For 2016 Can-Am Comman r 800R 4X4
For 2016 Can-Am Comman r 800R 4x4 DPS
For 2016 Can-Am Comman r 800R 4x4 XT Camouflage DPS
For 2016 Can-Am Comman r 800R 4x4 XT DPS
For 2015 Can-Am Comman r 800R 4X4
For 2015 Can-Am Comman r 800R 4x4 DPS
For 2015 Can-Am Comman r 800R 4x4 XT
For 2013 Can-Am Comman r 800R 4x4 DPS EFI
