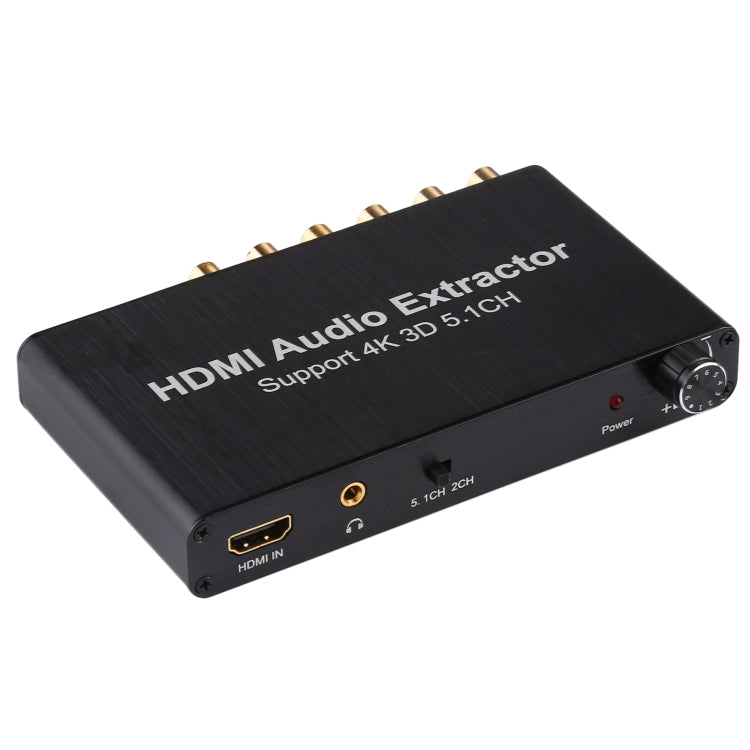

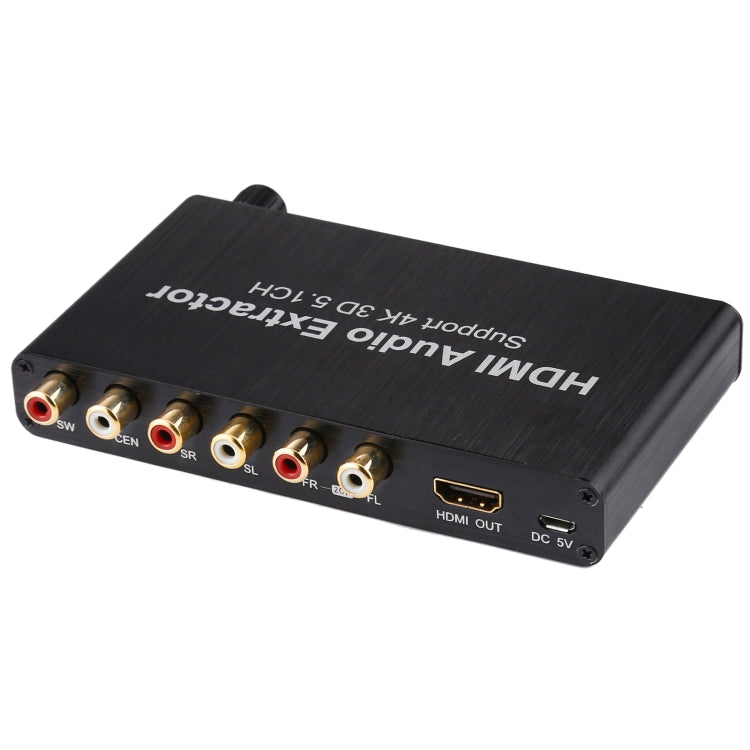

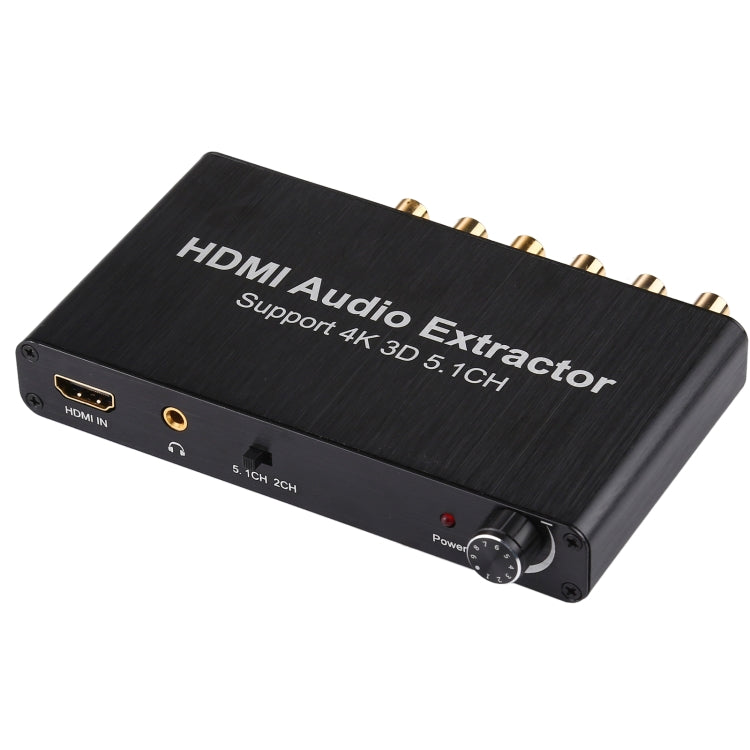

4K 3D HDMI 5.1CH Audio Decoder Extractor

Original price £22.99 - Original price £22.99
Original price
£22.99
£22.99 - £22.99
Current price £22.99
1. Built in high performance RTOS operating system and audio decoder chip, support DTS / AC-3.
2. Super fast start time about 3 seconds.

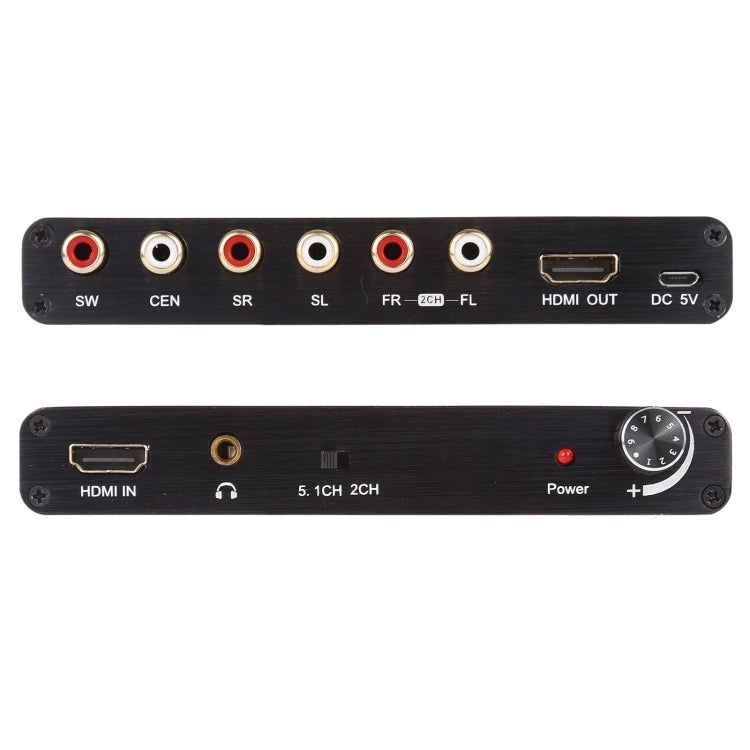

3. HDMI iutput, 1 x CEN, 1 x SW, 1 x FL, 1 x FR, 1 x SL, 1 x SR, 3.5mm headphone port.
4. HDMI input resolution: Up to 3840x2160 30Hz; 4096x2160 30Hz.
5. HDMI to achieve audio signal decoding synchronization. There are PASS / 2.0CH / 5.1CH three audio mode options.
6. Support 6CH volume synchronous adjustment.
7. Auto decode AC-3/DTS (LPCM/PCM/RAW) input signal without any action.

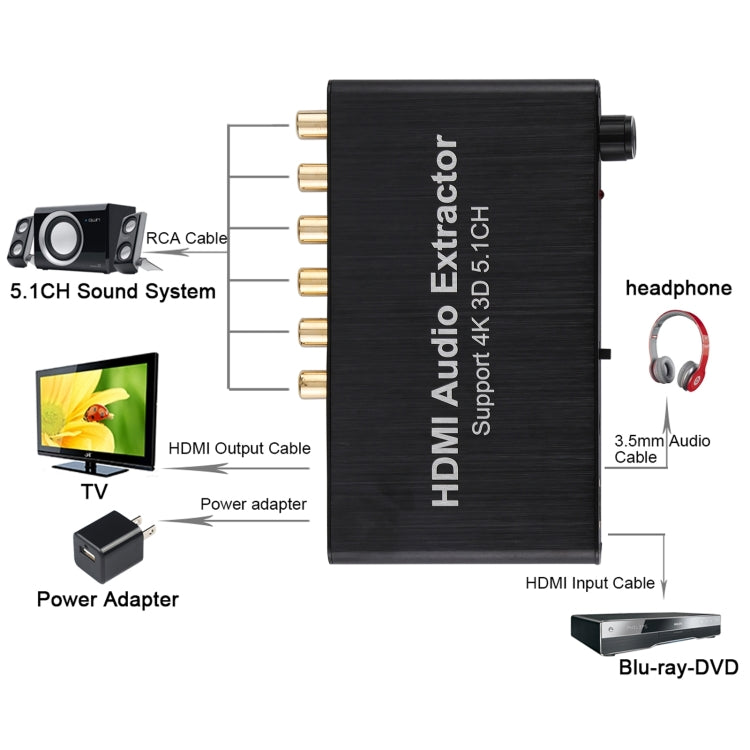

8. Compatible with network player, HDTV, Blu-ray DVD, DVD, PS4, Xbox 360, DM500S, DM800HD etc.
9. Small size and metal case, anti-interference.
10. Adopt 6CH RCA / 3.5mm headphone port output, convenient and efficient in use.


Specification:
General
Material Metal
Input Port 1 x HDMI
Interface 1 x HDMI IN, 1 x SPDIF, 1 x 3.5mm audio jack
HDMI Resolution 2160p@30Hz, 1080P@50/60Hz, 1080i, 720P, 1576i, 480P, 480i
HDMI Version V1.4b
Power Supply DC 5.0V / 2.0A
Video Color Format 24bit, 30bit, 36bit
Video Bandwidth 340MHz
Frequency Bandwidth 10.2Gbps
Audio Format DTS, MP3, AC3, WAV, WMA, AAC, ALAC, FLAC, APE, OGG, M4A
Input Cable Distance =<7m, AWG26 standard cable HDMI
Output Cable Distance =<8m, AWG26 standard cable HDMI
Input/ Output TMDS Signal 0.5-1.5Volts p-p (TTL)
Input/ Output DDC Signal 5Volts p-p (TTL)
SNR 120dB
Frequency Response 20Hz~20KHz
Operating Temperature 0 ~ 70 Degree Celsius
Storage Humidity 5 ~ 90 Percent RH (No condensing)
Size 13.5*9.5*2cm
Weight 241g

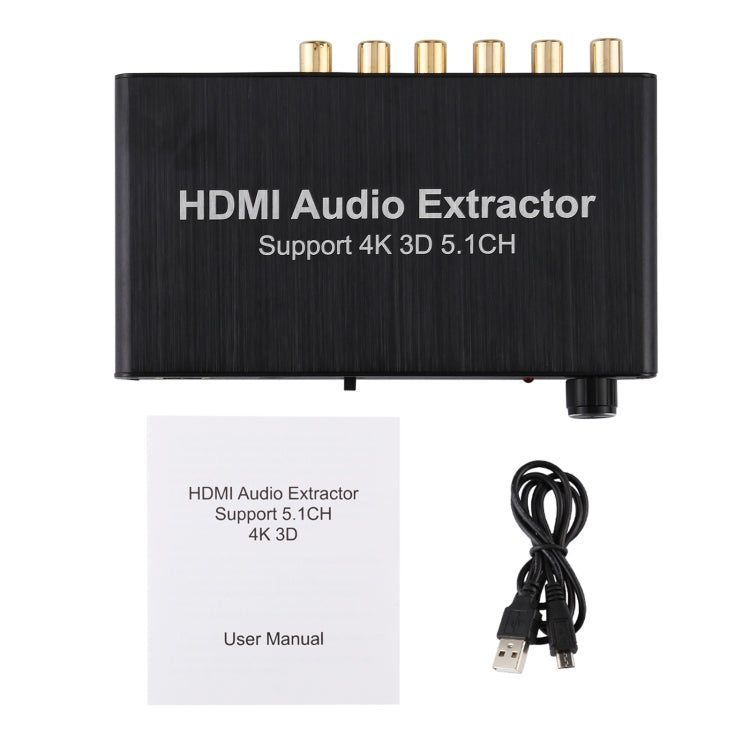

Package Include
Package Contents 1 x Converter
1 x USB Cable
1 x User Manual
Package Weight
One Package Weight 0.33kgs / 0.73lb
One Package Size 20cm * 16cm * 6cm / 7.87inch * 6.3inch * 2.36inch
Qty per Carton 20
Carton Weight 9.40kgs / 20.72lb
Carton Size 40cm * 34cm * 32cm / 15.75inch * 13.39inch * 12.6inch
Loading Container 20GP: 612 cartons * 20 pcs = 12240 pcs
40HQ: 1422 cartons * 20 pcs = 28440 pcs

SKU HDMI3023
