1. Support: AHD/TVI/CVI/CVBS/IP five signals

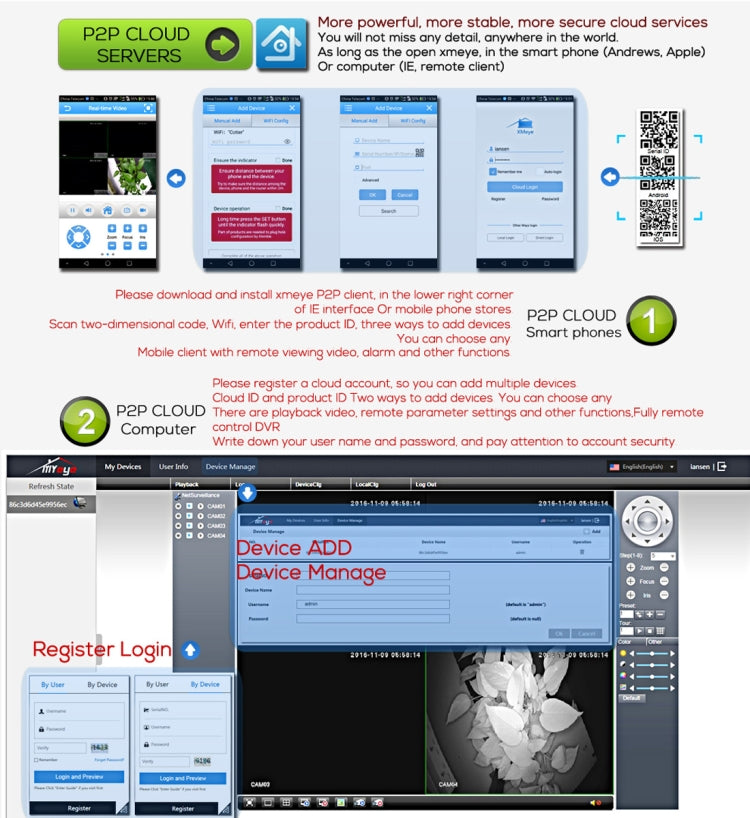

2. Step on the Internet: With cloud service, easy to achieve a variety of network penetrations, one step to remote monitoring, getting rid of various complicated network settings, easy and simple to operate.
3. Compression algorithm ideal: H.264 compression algorithm, 30% decrease of stream due to advanced space-time filtering technology.
4. Playback quality: Support full real-time encoding video, full real-time playback of multi-channel synchronous decoding.
5. Main and Sub Stream: Main stream and Sub-stream encoding. Main stream for local storage, ensure image quality; Sub-stream for real-time network transmission, easy to solve bandwidth bottleneck problem.
6. Mobile monitor: Support various mobile monitoring(iPhone, Windows Mobile, BlackBerry, Symbian, Android).
7. Display: VGA HD output simultaneously, support VGA 1080p HD output, lead the technology of HD resolution.
8. Operation interface: Similar to Windows operating style, easy to get started with powerful mouse right-click function.

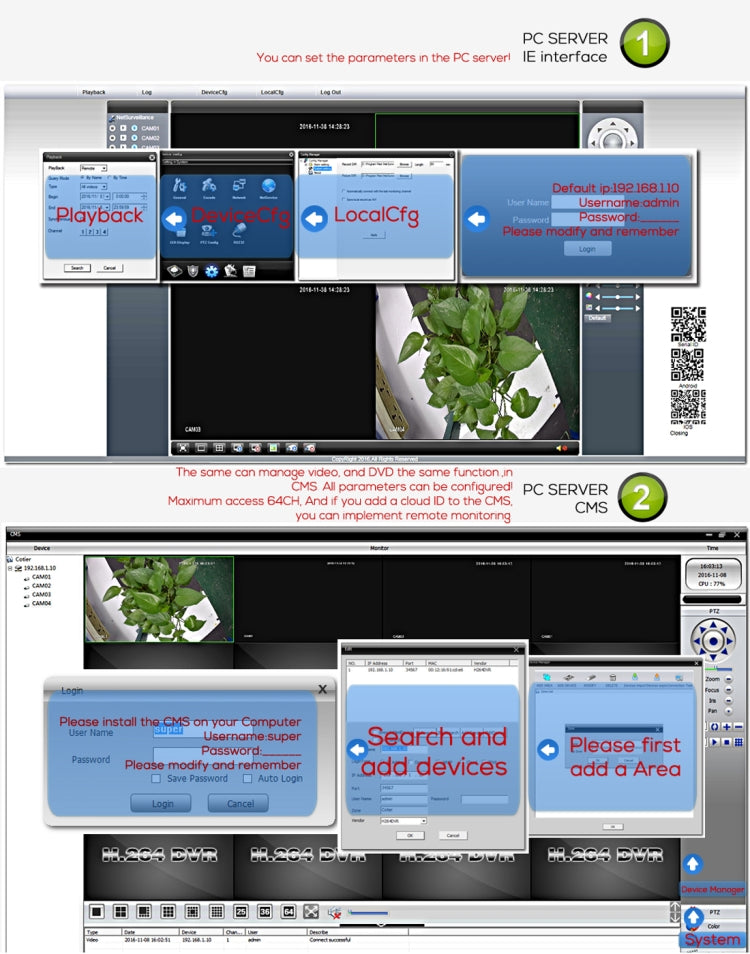

9. Network: Powerful network services (support DHCP, PPPOE, FTP, DNS, DDNS, EMAIL, IP searches etc.) And perfect support (WEB, Client, SDK), easy to achieve interoperability.
10. Browsers: Support IE, Chrome, Firefox, Safari browsers.
11. Remote Access: With DNS (ARSP), easy to monitor remotely, 3322 (Greek network), dyndns, oray (peanut shells), myq-see and other DNS are also provided.
12. Differentiation: Boot screen free replacement, more than twenty languages, over 10 sets of GUI interface, ten kinds of remote control, which make our products different from others.
13. Others: With unique black box technology, the whole process can be monitored, which greatly reduces maintenance costs.
14. Monitor quality: VGA, HDMI; Preview ability: 8*1080P; Encode ability: 8*1080N/8*1080P@12fps; Decode ability: 8*1080N/4*1080P@12fps.
15. Multi-mode input: Analog: 8*1080P, 8*1080N; Hybrid: 4*1080P(analog) + 4*1080P(network); Network: 8*1080P + 8*960P, 4*3M, 4*5M.
16. Motion Detection: Each screen can be set to 192 (16*12) detection areas; Multi-level sensitivity can be set (Limited local channel).
17. Search mode: Search by time, calendar, event, channel.
18. Backup mode: Network, USB hard disk, USB burner, SATA burner.
Specification:
| Media Format |
| Video Compression Format |
H.264 |
| Audio Compression Format |
G711-A |
|
| NVR |
| Recording |
Recording mode: Manual recording, motion detection recording, time recording, alarm recording |

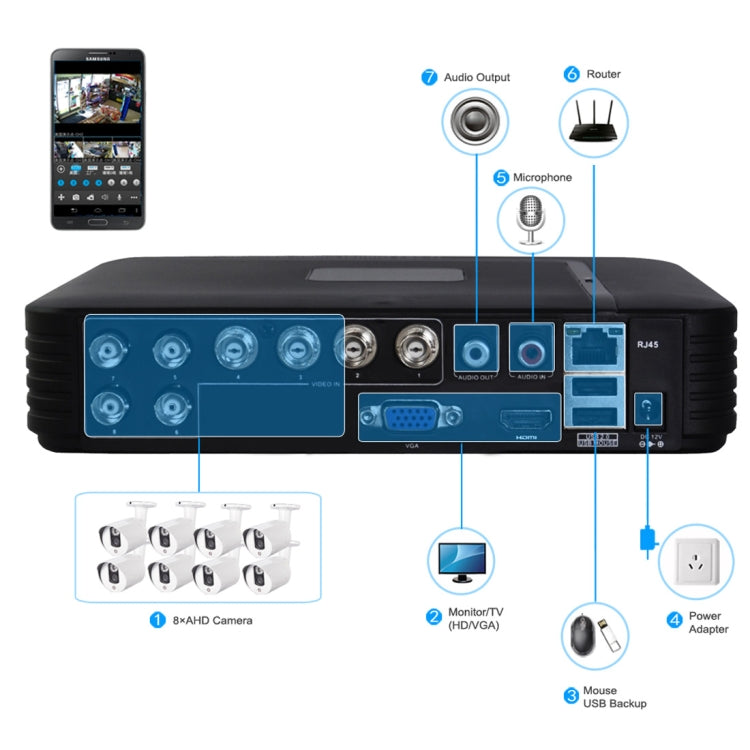

| Video interface |
Video output: 1ch VGA and 1ch HDMI, BNC Port |
| Network |
RJ45 10M/100M self-adaption |
| USB Port |
2* USB 2.0 ports |

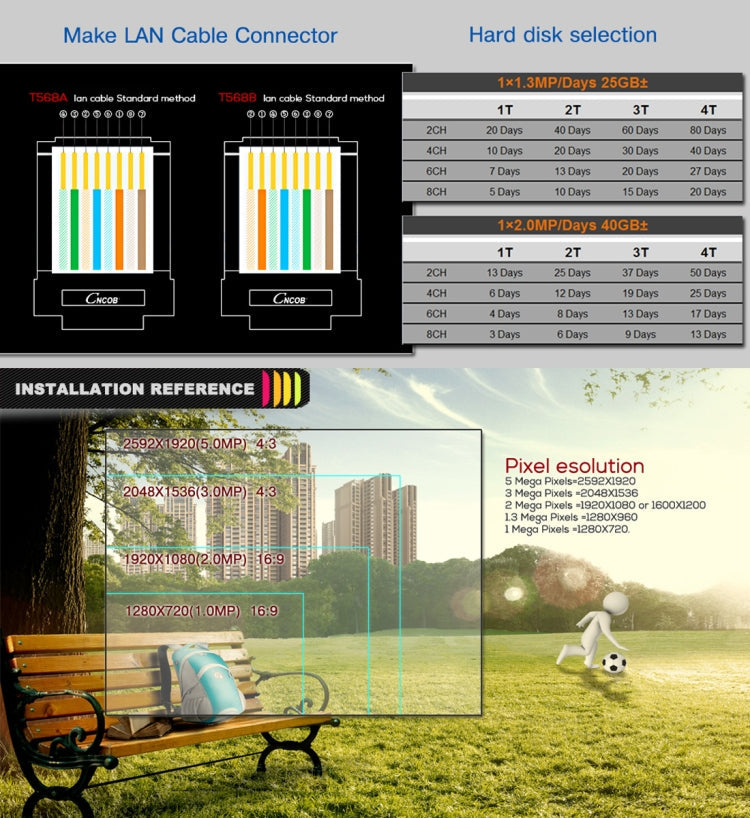

| HDD |

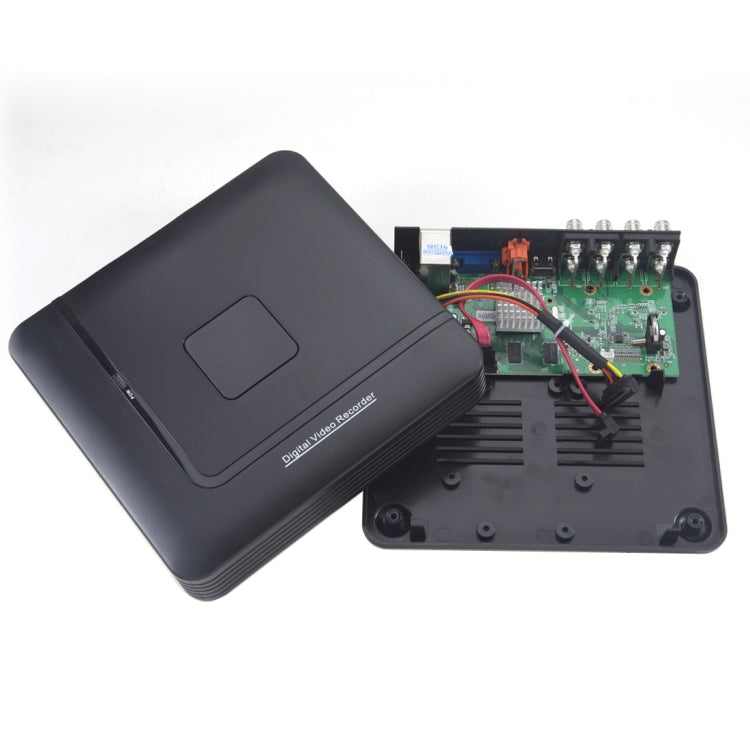

2 SATA HDDs (not included), Max 6TB / PER |
| Operation temperature |
0 to 55 Degree Celsius |
| Operation humidity |
10-90 percent |
| Power |
DC 12V 2.0A, DC 12V 4.0A |
| Power consumption |
< 15W (without HDD) |
|
| Package Include |
| Package Contents |

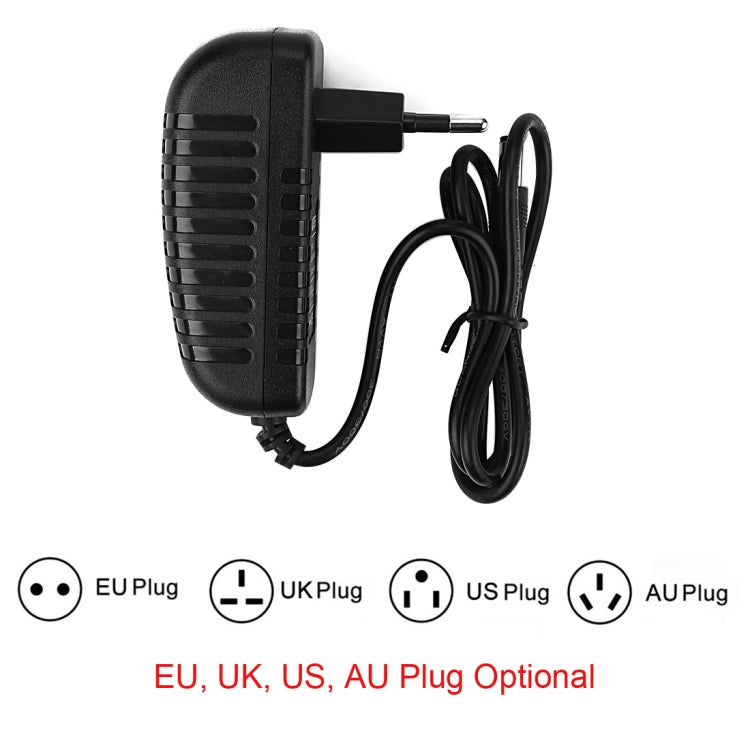

1 x Power Adapter (US, UK, EU, AU Optional)

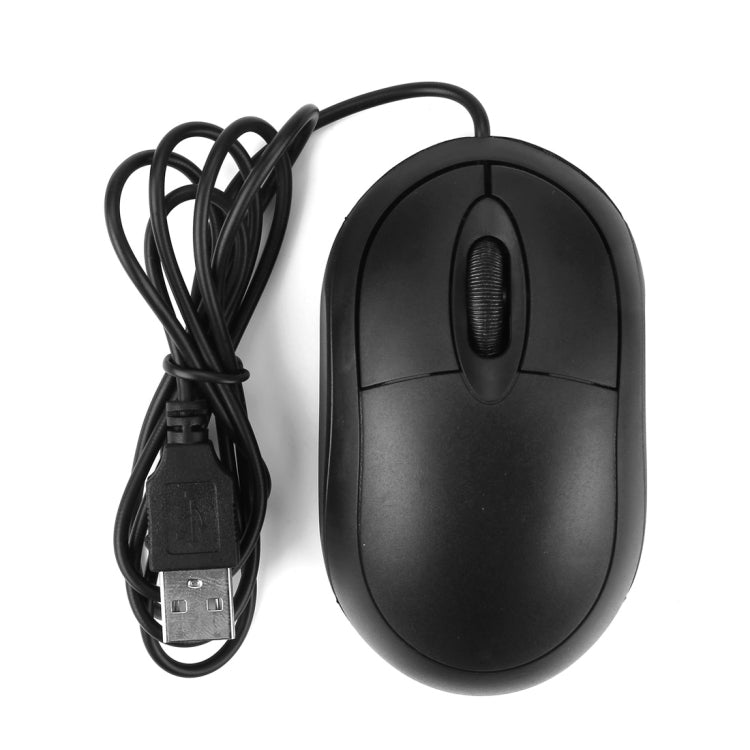

1 x USB Mouse
1 x CD
1 x User Manual
1 x DVR |
|
| Package Weight |
| One Package Weight |
0.92kgs / 2.02lb |
| One Package Size |
29cm * 26cm * 8cm / 11.42inch * 10.24inch * 3.15inch |
| Carton Weight |
10.00kgs / 22.05lb |
| Carton Size |
42cm * 54cm * 31cm / 16.54inch * 21.26inch * 12.2inch |
| Loading Container |
20GP: 379 cartons * 10 pcs = 3790 pcs
40HQ: 880 cartons * 10 pcs = 8800 pcs
|
|
