ARCTIC P8 Slim 8cm PWM PST Case Fan w/ Cable Splitter & Fluid Dynamic 300-3000 RPM
- Ultra‑Slim Design for Compact Builds – Just 15 mm installation height, perfect for HTPCs, single‑board computers, and Small Form Factor (SFF) systems.
- Wide Speed Range (300–3000 RPM) – 4‑pin PWM with PWM Sharing Technology (PST) enables synchronized control with up to four additional PST fans via built‑in daisy‑chain connectors.
- 0 dB Silent Mode – Can be throttled to a complete stop during idle for zero‑noise operation, ramping up only when cooling demand increases.
- High Static Pressure Performance – Optimised blade design delivers efficient cooling even through dust filters, radiators, or restricted airflow paths.
- Low‑Vibration, Smooth Operation – Special motor magnetization eliminates start‑up jerks and drastically reduces commutation vibration, removing the need for rubber spacers.
- Premium Sleeve Bearing – German‑engineered alloy/lubricant combination minimizes friction, heat, and noise while extending bearing life.
- Extended Service Life – Low coil temperature and reduced frictional heat multiply lifespan compared to standard fans.
- Proven Quality & Reliability – Rigorously tested under adverse conditions; backed by a 6‑year manufacturer’s warranty.
Product Description
Optimal for HTPC, SBC and Slim Systems
Thanks to its low installation height of 15 mm and highly energy-efficient operation, the P8 Slim PWM PST is suitable for use in small PCs such as single-board computers and the entire SFF range.
300 to 3000 rpm Controlled via PWM PST
With a wide speed range and innovative PWM Sharing Technology (PST), the P8 Slim PWM PST's fan speed can be controlled in sync with other fans. ARCTIC's PST fans come equipped with their own built-in daisy-chain solution, and, in addition to the plug-in connector, have another socket to which an additional fan or up to four other PST fans can be connected in series.
Ideal for Small Spaces

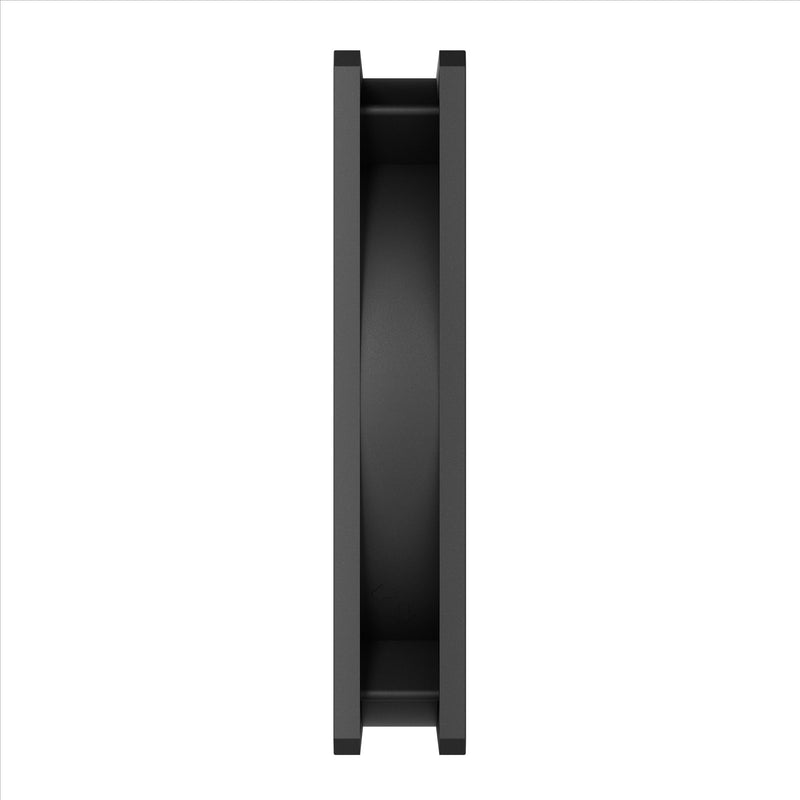

Unlike standard 80 mm case fans with a thickness of 25 mm, the P8 Slim PWM PST has a mounting height of only 15 mm. This makes it the ideal choice for Small Form Factor (SFF) builds.
0dB Mode — Zero rpm
The speed of the P8 Slim PWM PST can be throttled down to a standstill via PWM. This allows efficient and silent PC operation in idle while guaranteeing maximum performance on demand.
Optimised for High Static Pressure
Because the fan design of the P8 Slim PWM PST is optimised for focused airflow, it generates high static pressure. The fan enables extremely efficient cooling and good airflow — even with increased air resistance. This makes the P8 Slim PWM PST particularly well-suited for use on concealed case intakes, dust filters, radiators, and generally in small cases that have little space for free airflow due to compactly placed hardware.
Maximum Smoothness, Minimum Vibration
The operating noise of the newly-developed ARCTIC motor is barely perceptible, even at the lowest speed. Thanks to its special magnetization, the motor of the P-fans generates no start-up jerks and only a fraction of the commutation vibrations of a conventional DC motor. As a result, there is far less vibration on the housing at different speeds and no need for rubber buffering or additional decoupling.
High-Quality Sleeve Bearing
Thanks to a combination of alloy and lubricant developed in Germany, friction within the bearing is minimized and greater efficiency is achieved. In addition to preventing lubricant loss, wear on the pin and sleeve is also reduced to a minimum. Less heat is developed, less bearing noise is generated and the life of the fan is extended significantly.
Improved Service Life
The new ARCTIC motor generates significantly less frictional heat than its predecessors and current competitor models. The lower coil temperature therefore multiplies the service life and reduces frictional losses for more efficient operation.
Quality You Can Rely On
To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how we can permanently improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality, but also in terms of durability. This is a certainty that we are happy to pass on to our customers, which is why we give a 6-year manufacturer's guarantee.
Product Specifications
|

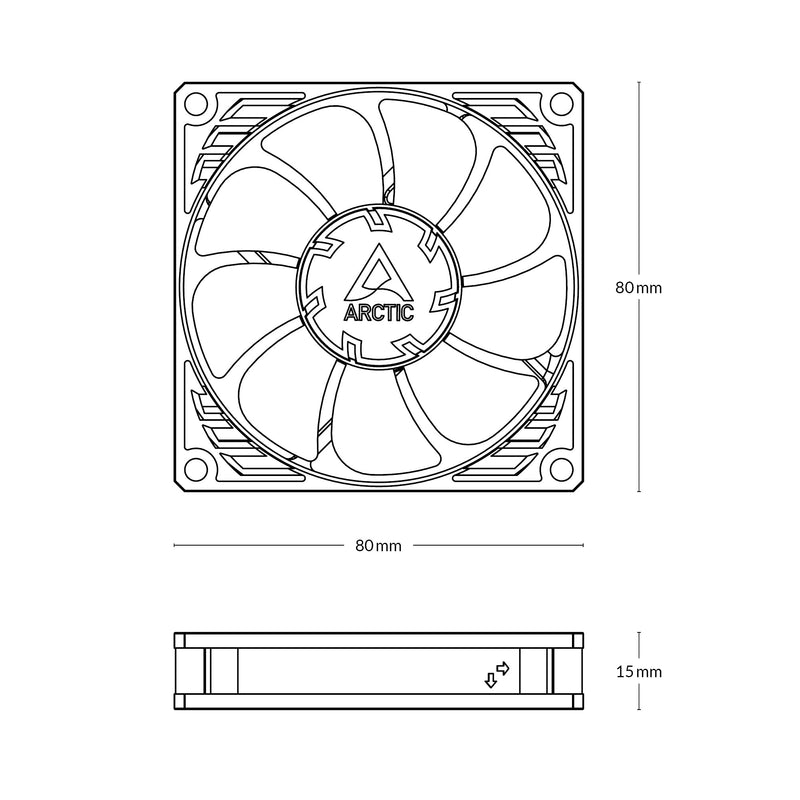

Dimensions |
80 (L) x 80 (W) x 15 (H) mm |
|
Weight |
45 g |
|
Operating Ambient Temperature |
0–40 °C |
|
Warranty |
6 Years |
Fan Specifications
|
Fan Speed |
300—3000 rpm (PWM controlled), 0 rpm below 5 % PWM |
|
Airflow |
22.50 cfm | 38.23 m³/h |
|
Static Pressure |
2.35 mmH2O |
|
Bearing |
Fluid Dynamic Bearing |
|
Connector |
4-Pin Connector + 4-Pin Socket |
|
Start-up Voltage |
6.9 V DC |
|
Current | Voltage |
0.095 A | 12 V DC |
|
Cable Length |
400 mm + 80mm, Black |
Technical specifications and Manual
