Features

【315MHZ & 433MHZ 2in1】This tire pressure monitoring sensor (for TPMS) has been manufactured to combine both 315 MHz and 433 MHz applications in one sensor to greatly simplify users’ inventory management and lower the investment as well as sales loss. It is built to perform like OE sensors in terms of signal, durability, and functionality.

【Maximum Signal Strength Wireless Programming】The extraordinary sensor signal strength allows AUTEL 1-Sensor to be easily programmed wirelessly even when the sensors have already been mounted to the wheel. With strong signal strength, now up to 16 sensors can be programmed in one session with Autel's latest TPMS tools.

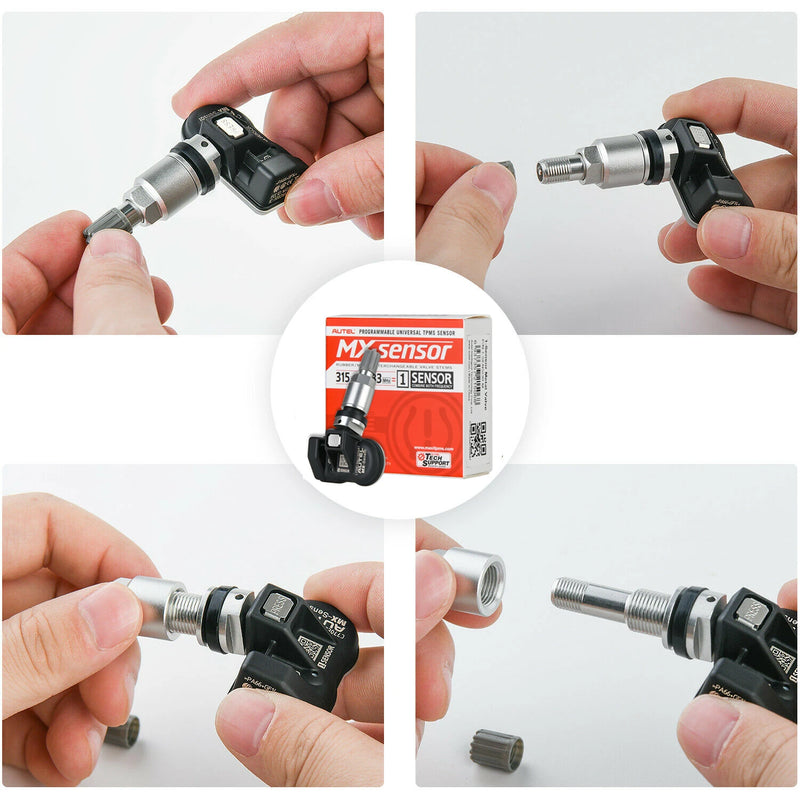

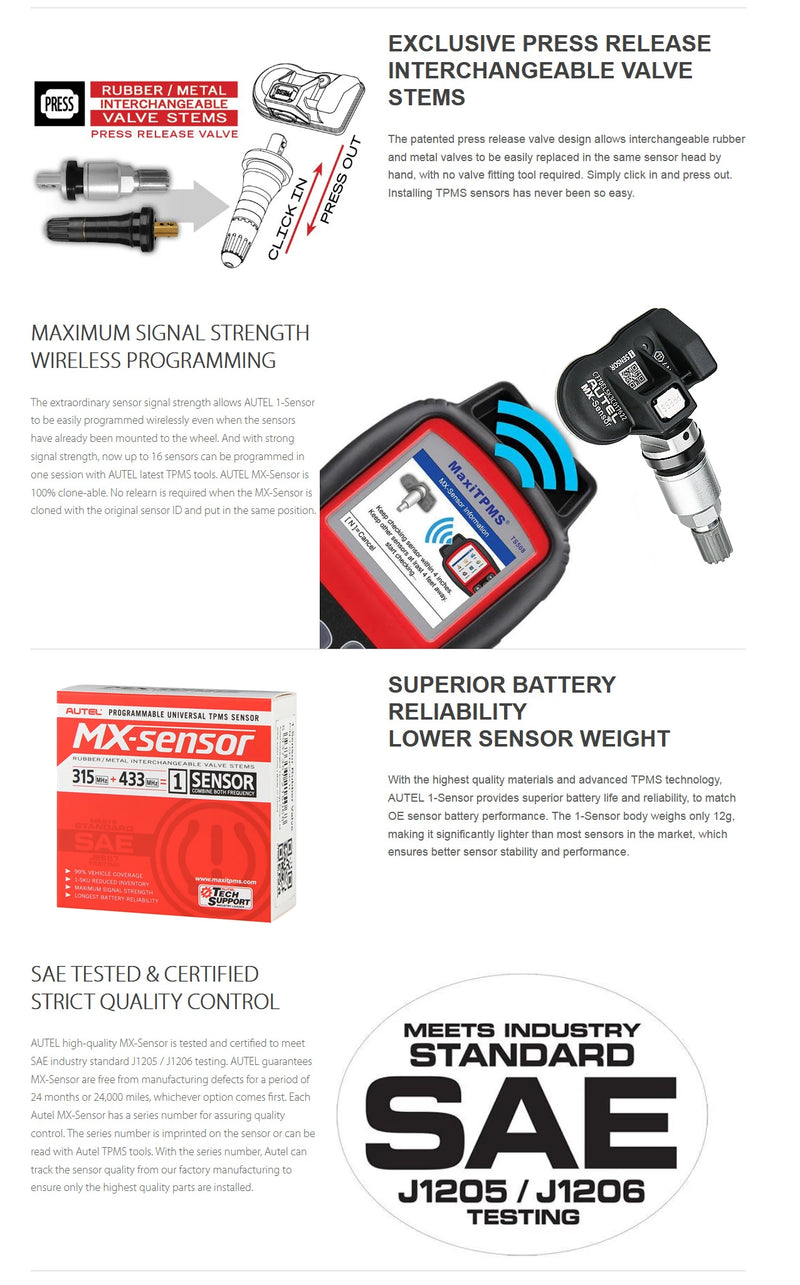

【Exclusive Press Release Interchangeable Valve Stems】The patented press release valve design allows interchangeable rubber and metal valves to be easily replaced in the same sensor head by hand, with no valve fitting tool required. Simply click in and press out. Installing TPMS sensors has never been so easy.

【Superior Battery Reliability lower Sensor】With the highest quality materials and advanced TPMS technology, AUTEL 1-Sensor provides superior battery life and reliability, to match OE sensor battery performance. The 1-Sensor body weighs only 13g, making it significantly lighter than most sensors in the market, which ensures better sensor stability and performance.

【98% Vehicle Coverage】An easy-to-use and cost-effective necessity for any shop performing TPMS repairs, the Autel 1-SKU sensor has the long ability to cover over 98% of all OE sensors on the market, to support up to 90% of North American, and European and Asian brands. On the shop level, needing only one 1-Sensor to service nearly every TPMS-equipped vehicle means lower repair cost and higher install efficiency.

【Strict Quality Control】Autel guarantees MX-Sensors are free from manufacturing defects for a period of 24 months or 24,000 miles, whichever option comes first. Each Autel MX-Sensor has a series number for assuring quality control. The series number is imprinted on the sensor or can be read with Autel TPMS tools. With the series number, Autel can track the sensor quality from our factory manufacturing to ensure only the highest quality parts are installed.

Technical Specifications

● Complete Tire Pressure Monitoring System Solution
● Autel is the only manufacturer to produce both TPMS sensors and easy-to-use TPMS tools to offer a truly complete TPMS solution.
● Most Current Vehicle Coverage
● More Compatible Tools & Sensors
● Easiest To Use Tool Navigation
● Quicker TPMS Repairs & Service
● Screw Release(flexible angle)
● 98% Vehicles Coverage
● Max Signal Strength
● SAE Standard
● Low Weightkuai
● Battery Reliability

Accident Case

How to Install

1. Loosening the tire: Remove the valve cap and core and deflate the tire. Use the bead loosener to unseat the tire bead.

2. Dismounting the tire: Clamp the tire onto the tire changer, and adjust the valve at 1 o’clock relative to the tire separation head. Insert the tire tool and lift the tire bead onto the mounting head to dismount the bead.

3. Dismounting the sensor: Remove the screw nut from the valve stem, and then remove the sensor assembly from the rim.

4. Mounting sensor and valve: Connect the sensor body and valve stem at a suitable angle (normally use the maximum angle of 30 degrees) and tighten the screw.

5. Remove the screw nut from the valve stem.

6. Slide the valve stem through the valve hole of the rim with the sensor on the inside of the rim.

7. Tighten the screw-nut with 4.0 nm with the help of the positioning pin.

8. Mounting the tire: Place the tire on the rim, and make sure that the valve faces the separation head at an angle of 180 degrees. Mount the tire over the rim.

Specification

● Battery Life: 4-6 years
● Operating Temperature: -40°C to +125°C
● Storage Temperature: -40°C to +35°C
● Operating Humidity: ≤90%
● Operating Frequency: 315 MHz / 433 MHz
● Pressure Monitoring Range: 0 to 800 kPa
● Pressure Reading Accuracy: ±10 kPa
● Temperature Reading Range: -40°C to +125°C
● Temperature Reading Accuracy: ±5°C
● G-Sensor Reading Accuracy: ±15%
● Transmission Power: 5-8 dBm
● Battery: 3.0 V

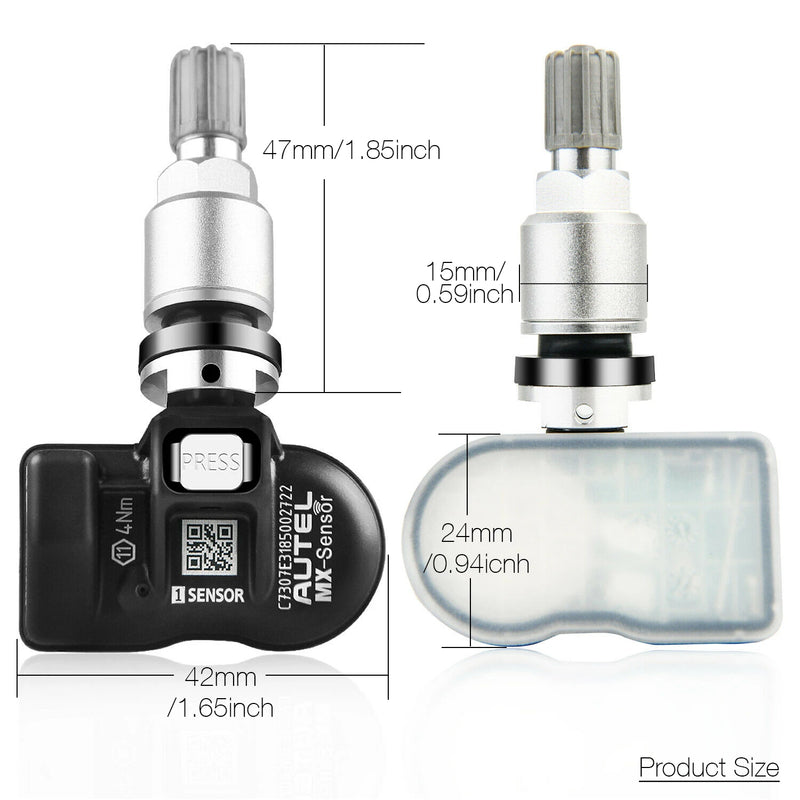

● Dimensions: 42.2mm x 27.9mm x 17.4mm
● Weight (Without Valve): 12 g

Product Display

Packing List

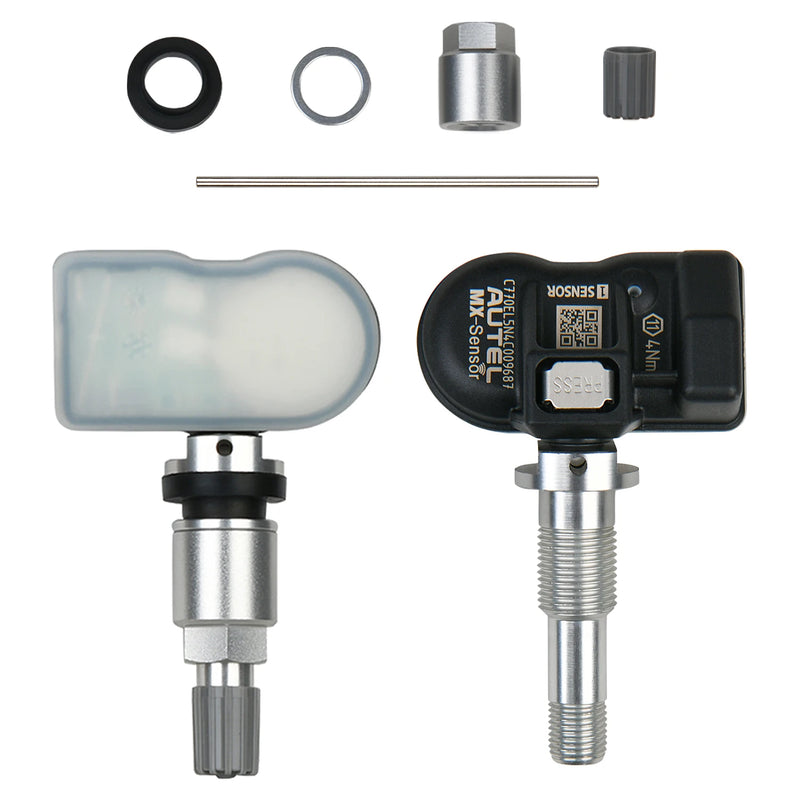

1 x 2in1 MX-Sensor (Metal Valve/Rubber Valve)
1 x Packing Box
1 x User Manual
