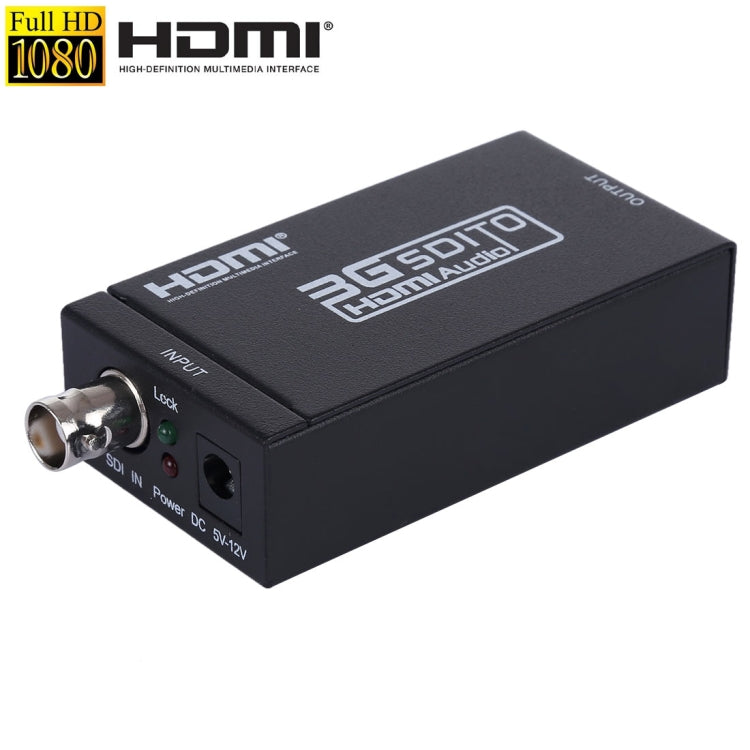

AY30 Mini 3G SDI to HDMI Converter

Original price £17.99 - Original price £17.99
Original price
£17.99
£17.99 - £17.99
Current price £17.99
About that product:
MINI SDI to HDMI converter allows SD-SDI, HD-SDI and 3G-SDI signals to be displayed on HDMI displays while ensuring a high bit rate of 2.970 Gbit / s, thus providing you with fast signal transmission without any loss . For professionals, this means that with the built-in HDMI converter, it is now easier to distribute and extend 3G SDI signals, while enabling you to display your work on HDMI displays.

Feature:
1. Run at speeds of 2.970Gbit / s, 1.485Gbit / s and 270Mbit / s
2. Support SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C
3. Loop output integrated audio de-embedder with equalization and retime, up to 8 channels, 48 a??a??KHz audio
4. From SMPTE 425M Class B to Class A 1080p 50 / 59.94 / 60 4: 2: 2 10-bit conversion

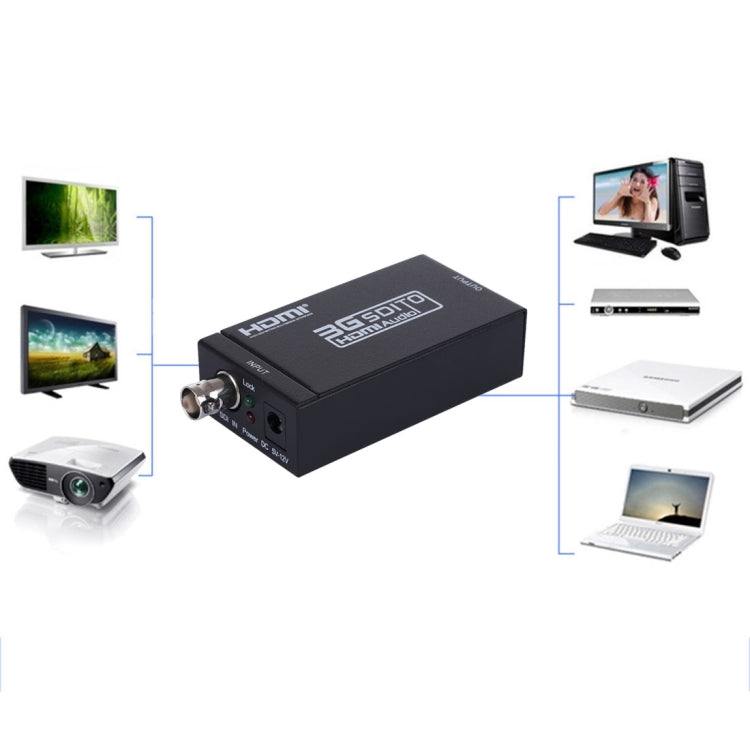

5. Connect with other devices to extend the signal distance

Parameter:
1. Input port: 1 x BNC (SDI / HD-SDI / 3G-SDI)
2. Output port: 1 x HDMI
3. SDI transmission rate: 2.970 Gbit / s and 2.970 / 1.001 Gbit / s
4. Input / output resolution: 480i, 576i, 720p @ 50 / 59.94, 60, 1080i @ 50 / 59.94 / 60 1080p@23.97/24/25/29.97/30/50/59.94/60
5. Power supply: DC 5V -12V
6. ESD protection human body model: ?± 8kV (air gap discharge), ?± 4kV (contact discharge)
7. Dimensions: 80mm x 41mm x 22.5 mm
8. Weight: 102g
9. Operating temperature: 0 ?° C-40 ?° C / 32 ?° F-104 ?° F
10. Storage temperature: -20 degrees Celsius -60 degrees Celsius / -4 degrees Fahrenheit -140 degrees Fahrenheit
11. Power consumption: up to 5W

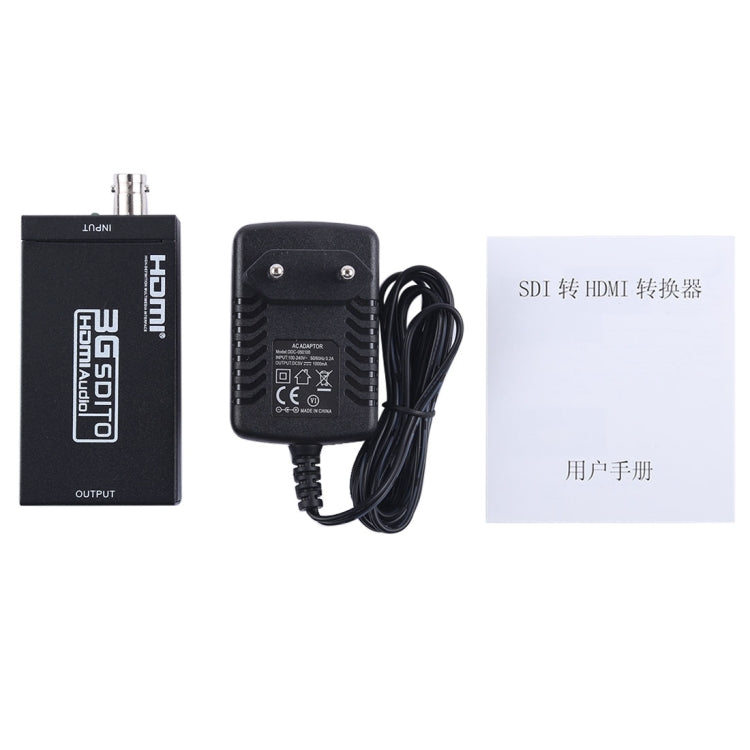

Packing list:
3G SDI to HDMI converter x 1
5V DC power adapter x 1
Operation Manual x 1


Specification:
Package Weight
One Package Weight 0.27kgs / 0.59lb
One Package Size 16cm * 10cm * 10cm / 6.3inch * 3.94inch * 3.94inch
Qty per Carton 40
Carton Weight 10.50kgs / 23.15lb
Carton Size 42cm * 42cm * 30cm / 16.54inch * 16.54inch * 11.81inch
Loading Container 20GP: 503 cartons * 40 pcs = 20120 pcs
40HQ: 1169 cartons * 40 pcs = 46760 pcs

SKU S-PC-5002
