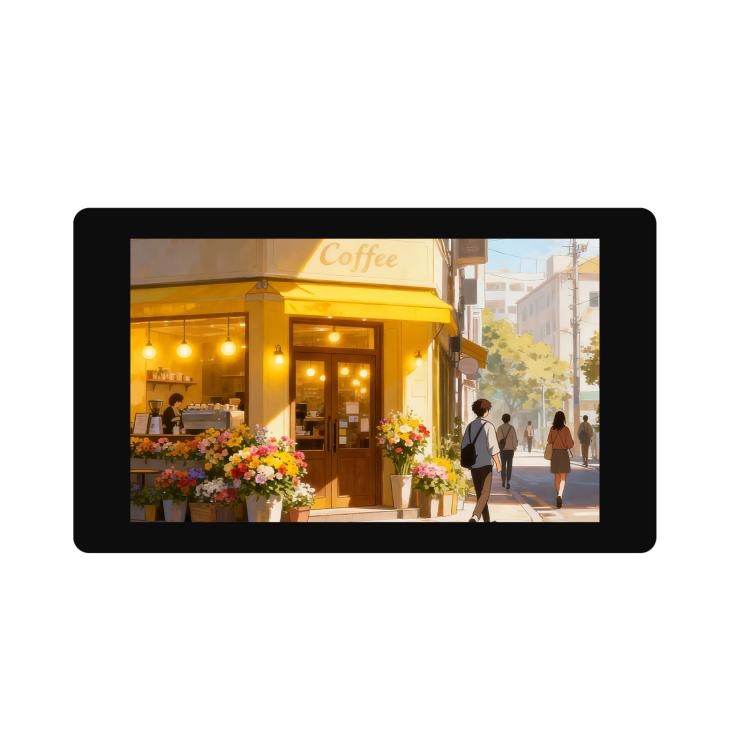

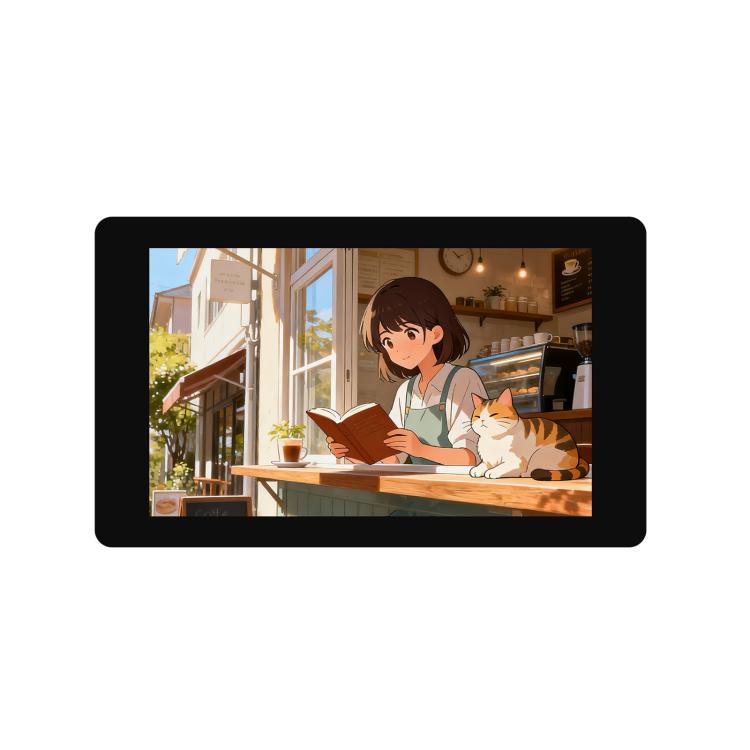

DSI Capacitive Touch Display 480 × 800 Resolution, IPS Display Panel, Waveshare 4inch, Waveshare 4.3inch

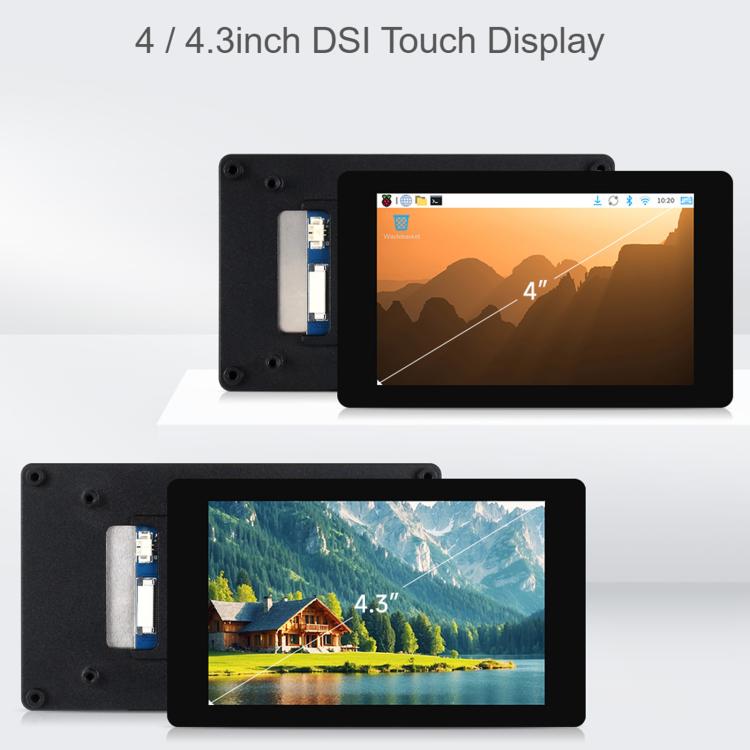

1. 4-inch/4.3-inch DSI touchscreen with 5-point capacitive touch control

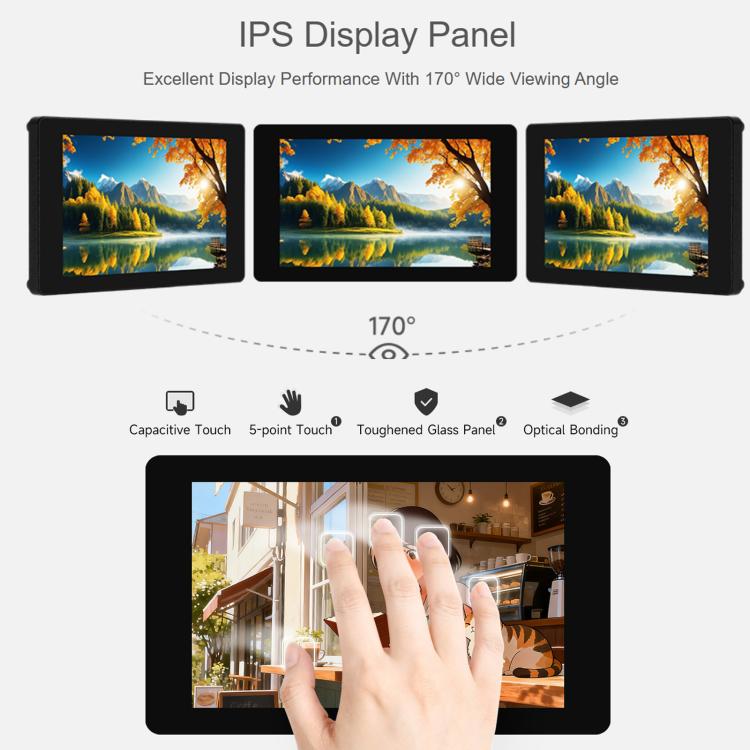

2. IPS display panel with a hardware resolution of 480×800
3. Full lamination process for clearer image quality
4. Toughened glass touch panel with 6H hardness
5. DSI interface for LCD driving; refresh rate up to 60Hz

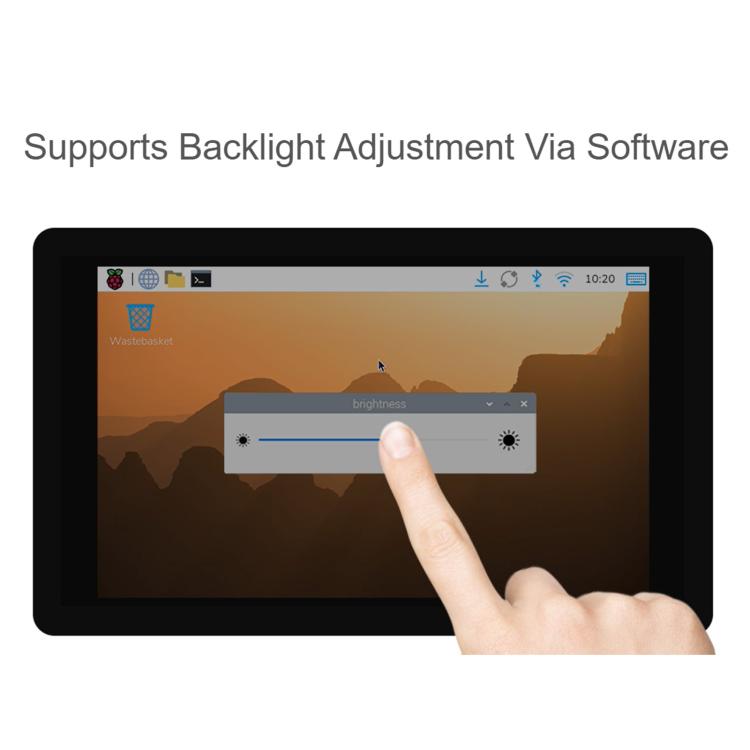

6. Supports software-controlled backlight brightness
7. Aluminum alloy back casing with a purely passive cooling design
8. Default display orientation is portrait; landscape mode can be enabled via software settings
Screen Specifications:
1. Resolution: 480 × 800 pixels (H × V)
2. Contrast Ratio: 4-inch: 800:1; 4.3-inch: 1000:1
3. Display Driver IC: ST7701S
4. Touch Controller IC: GT911

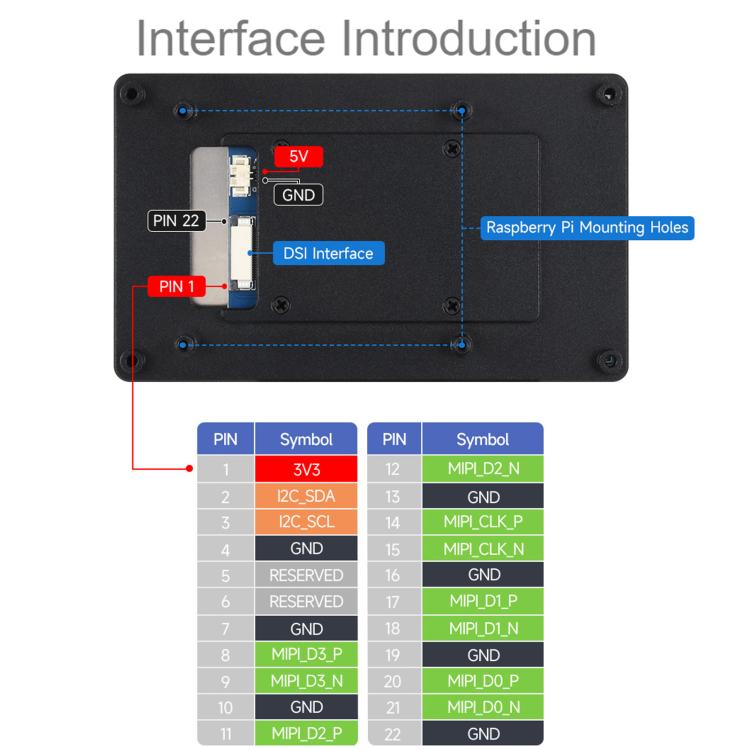

5. Communication Interface: MIPI 2-lane
6. Brightness: 4-inch: 350 cd/m2; 4.3-inch: 500 cd/m2

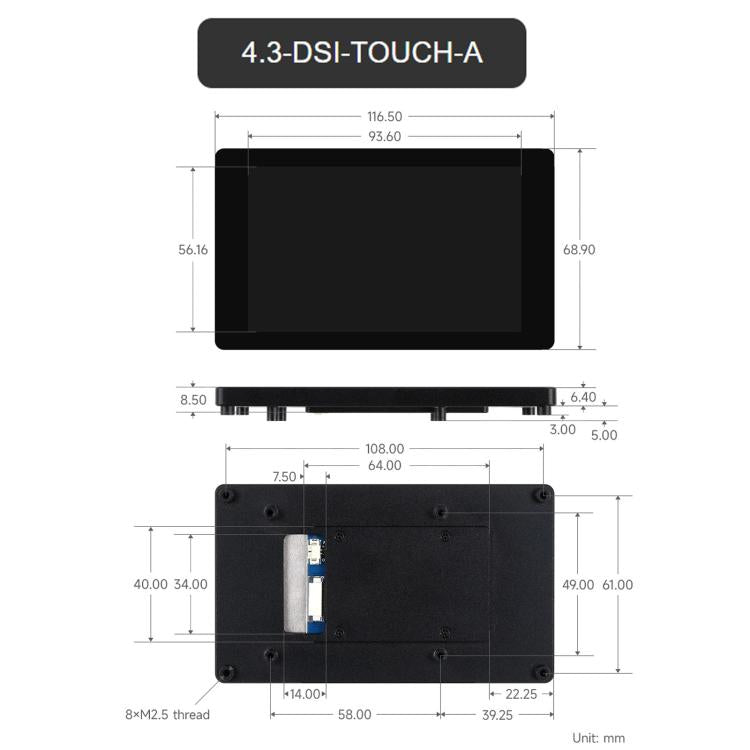

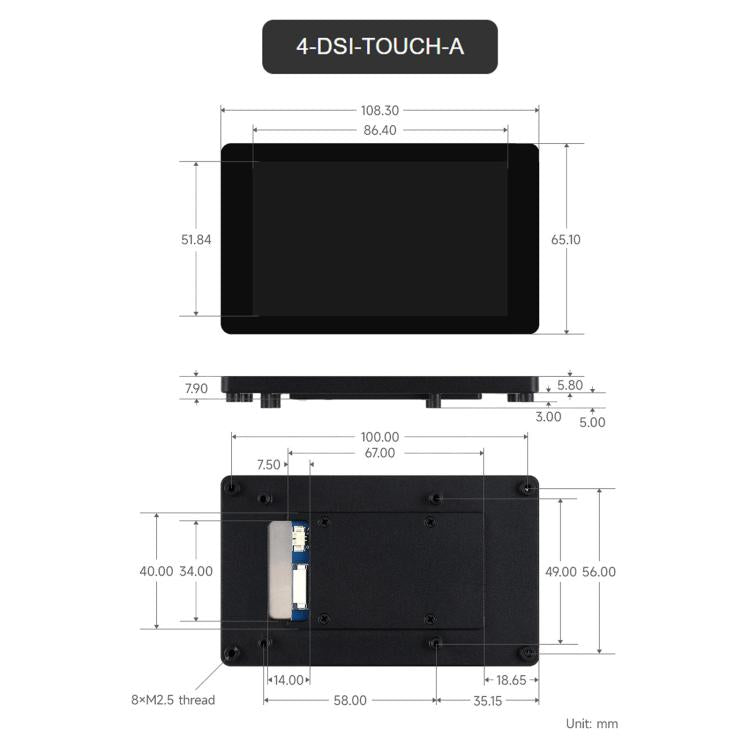

7. Outline Dimensions: 4-inch: 108.30 × 65.10 mm; 4.3-inch: 116.50 × 68.90 mm
8. Display Area: 4-inch: 86.40 × 51.84 mm; 4.3-inch: 93.60 × 56.16 mm
