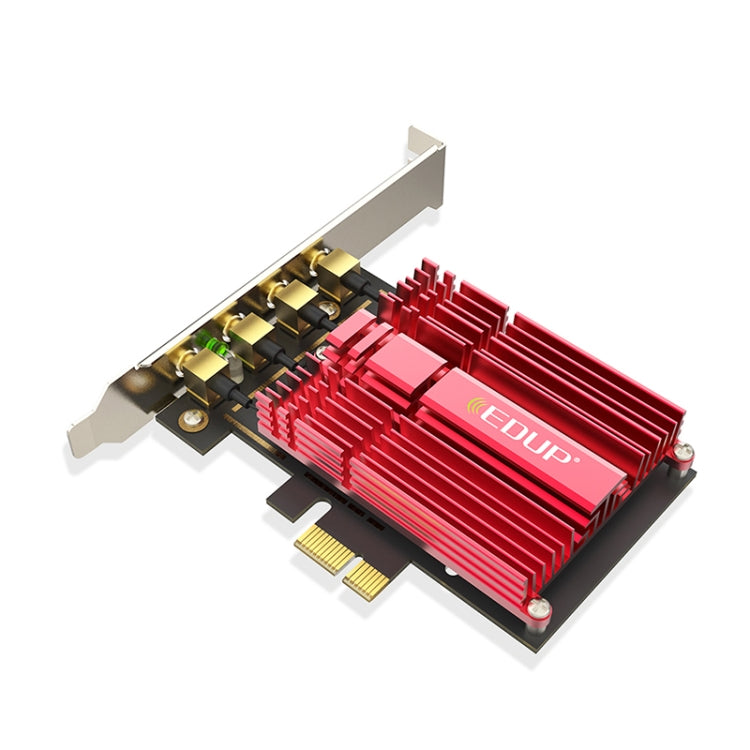

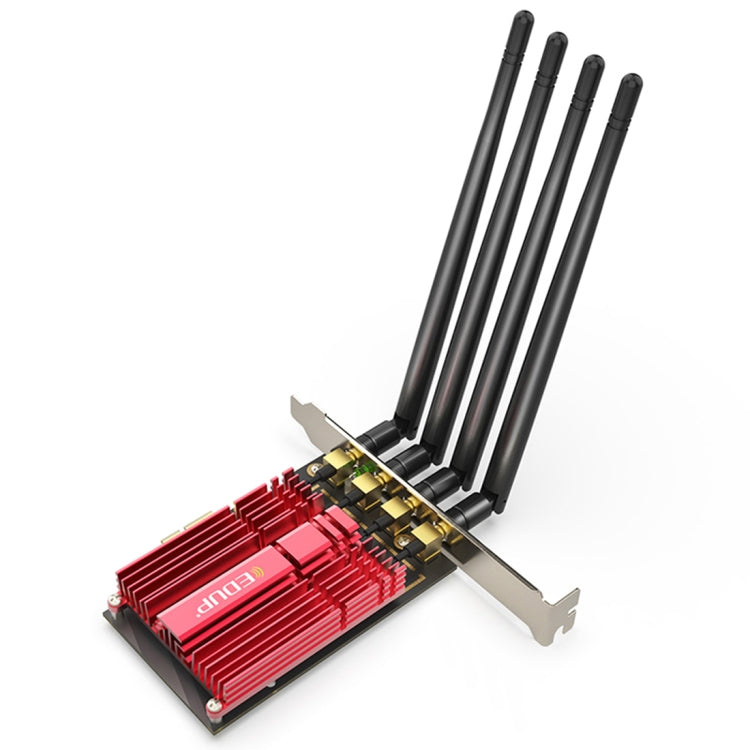

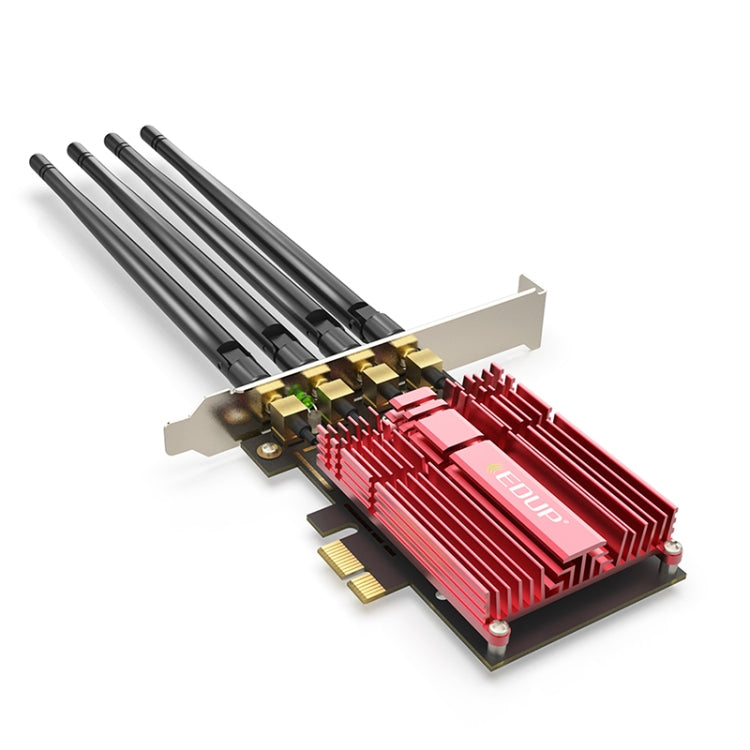

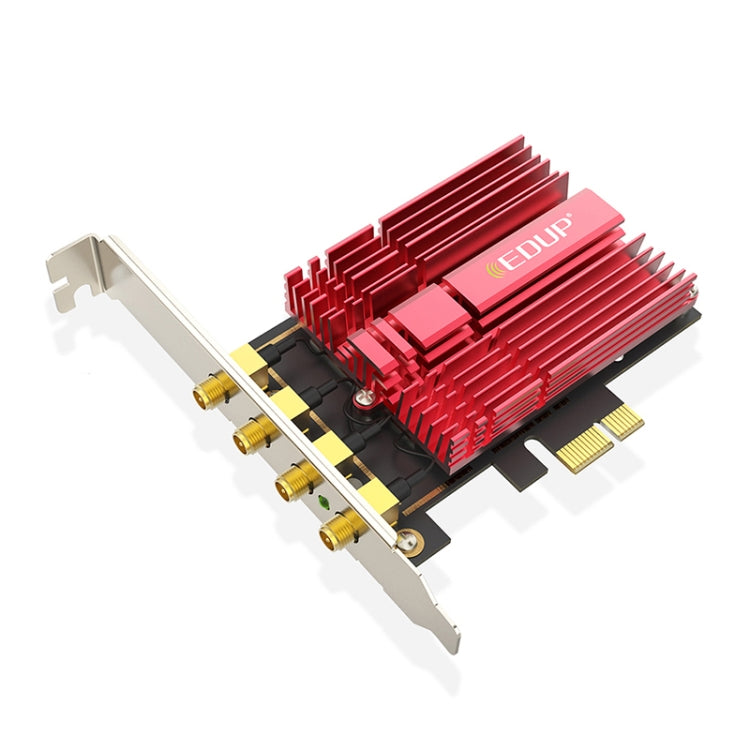

EDUP 9633-800 AC1900Mbps 2.4GHz & 5GHz Dual Band PCI-Express Adapter 4 Antenna External Network Card, AC1900Mbps
2. Antenna: 4x5dBi 0mni directional detachable antenna.
3. Standard: IEEE 802.11ac, IEEE 802.11a, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b.
4. Frequency: 5.180-5.240 GHz, 5.745-5.825 GHz / 2.4 GHz - 2.484 GHz.
5. Rate: 5GHz: 11ac: Up to 1300Mbps (dynamic), 2.4GHz: 11n: Up to 600Mbps (dynamic).
6. 5GHz receiving sensitivity: 11a 6Mbps: -85dBm. 11a 54Mbps: -68dBm. 11ac HT20: -59dBm. 11ac HT40: -54dBm. 11ac HT80: -51dBm.
7. 2.4GHz receiving sensitivity: 11b 11Mbps: -80dBm. 11g 54Mbps: -68dBm. 11n HT20: -64dBm. 11n HT40: -61dBm.
8. Transmit power: less than 20dBm (EIRP).
9. Wireless mode: Ad-Hoc / Infrastructure mode.
10. Security: Support 64/128 bit WEP, WPA-PSK / WPA2-PSK, 802.1x.
11. Modulation: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM.
12. Operating system support: Windows 10, Windows 8.1, Windows 8, Windows 7, Windows XP.
13. Working temperature: 0-40 degrees Celsius.
14. Storage temperature: -40-70 degrees Celsius.
15. Operating humidity: 10% to 90% does not condense.
16. Storage humidity: 5 to 90 percent does not condense.
Follow these steps to insert the adapter into your computer:
1. Turn off your computer and connect the power cord and other attached peripherals to your computer.
2. Remove the outer casing panel. Locate the available PCl-E slot and remove its slot cover.
3. Carefully insert the adapter into the PCl-E slot and secure it with the captive screws.
4. Replace the panel housing.
5. Install the antenna.
6. Reconnect the power cord and turn on the computer.
