FNIRSI LCR-ST1 Mini Smart Tweezer
FNIRSI LCR-ST1 Mini Smart Tweezer
Portable, Precision LCR Tester for Engineers & Hobbyists
Overview

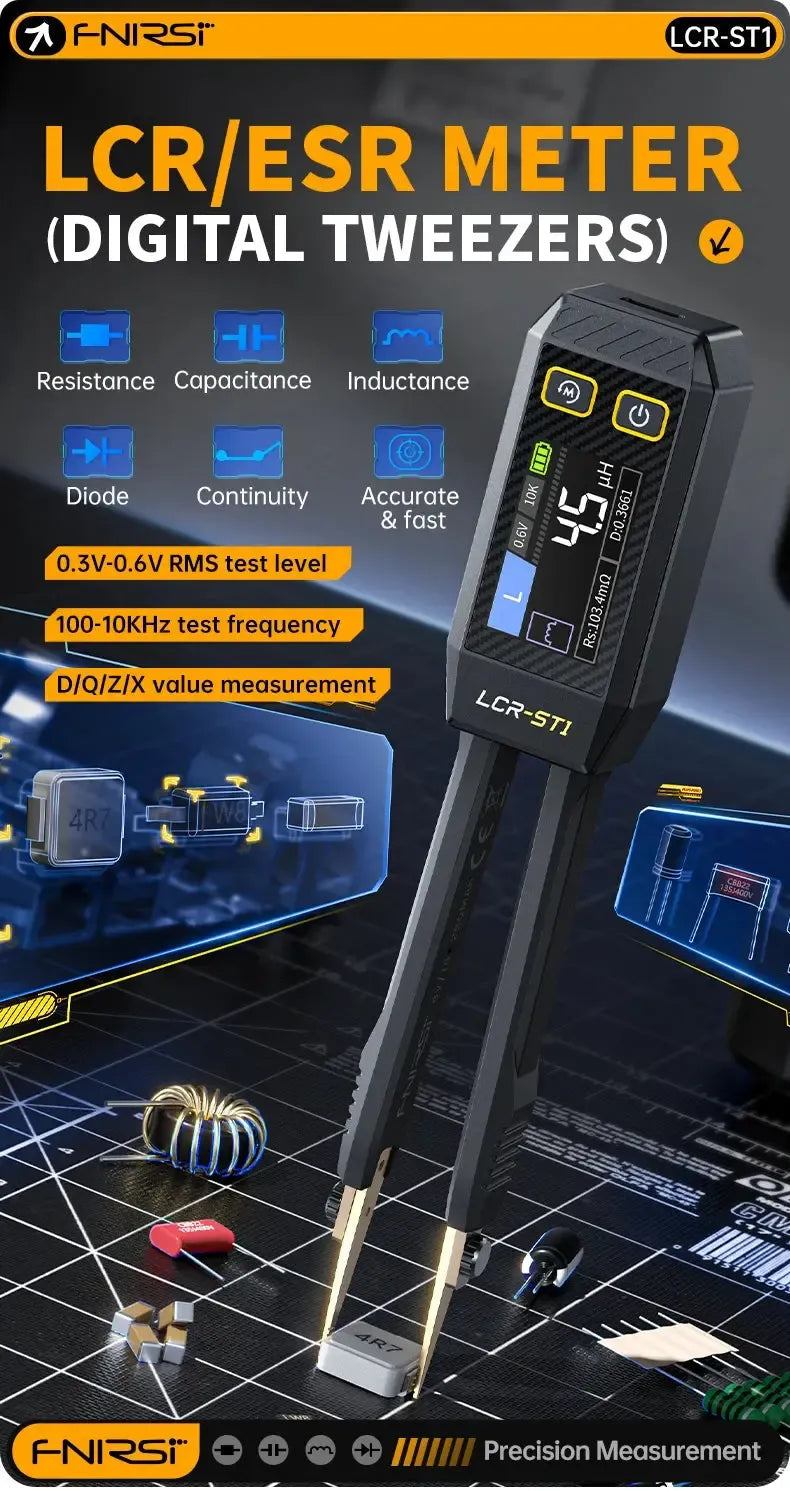

The FNIRSI LCR-ST1 Mini Smart Tweezer is a compact, handheld LCR meter designed for fast, accurate measurement of passive components and semiconductors. With automatic component recognition, a vivid color display, and versatile test frequencies, the LCR-ST1 streamlines your workflow whether you’re in the lab, on the bench, or out in the field.
Key Features
-
Automatic, High-Precision Testing

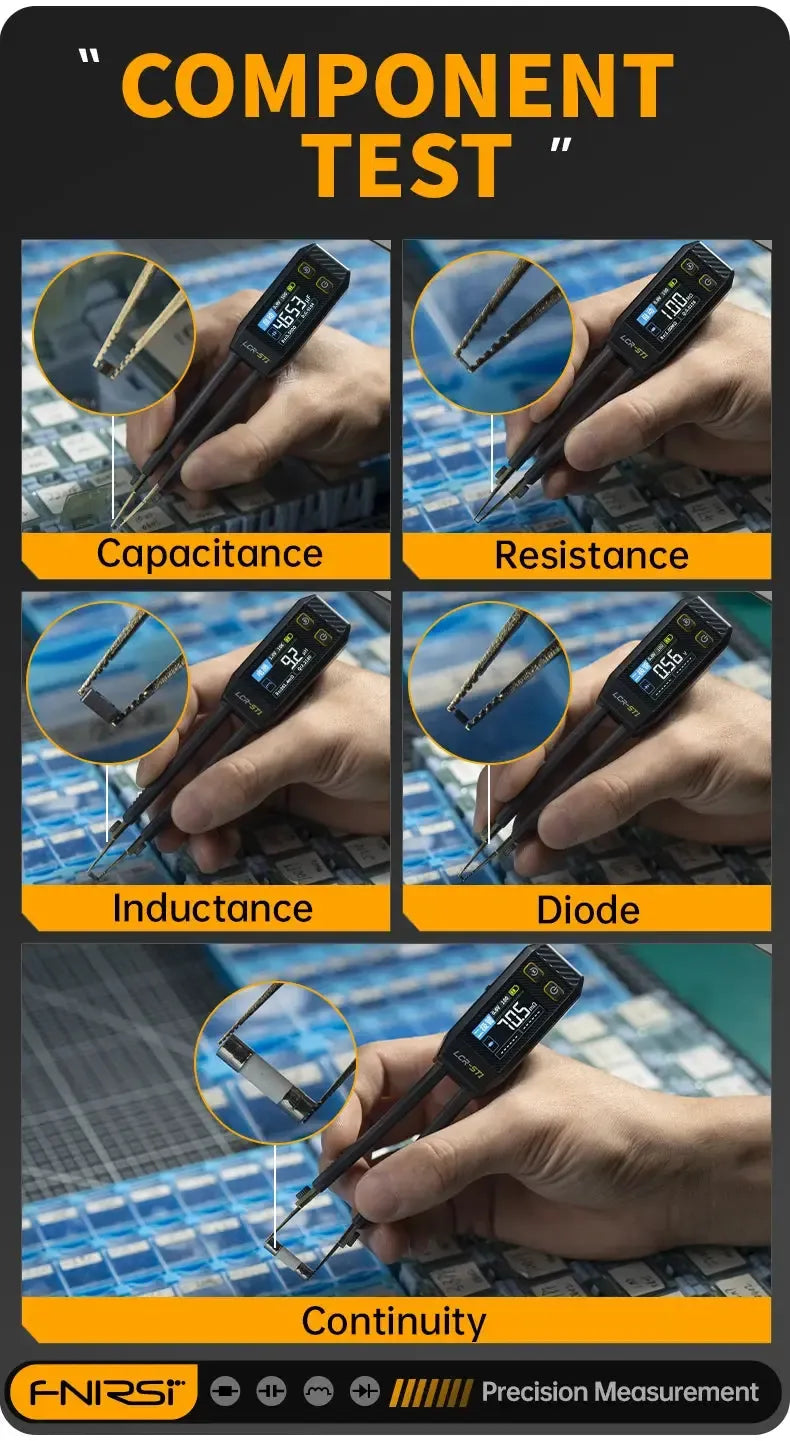

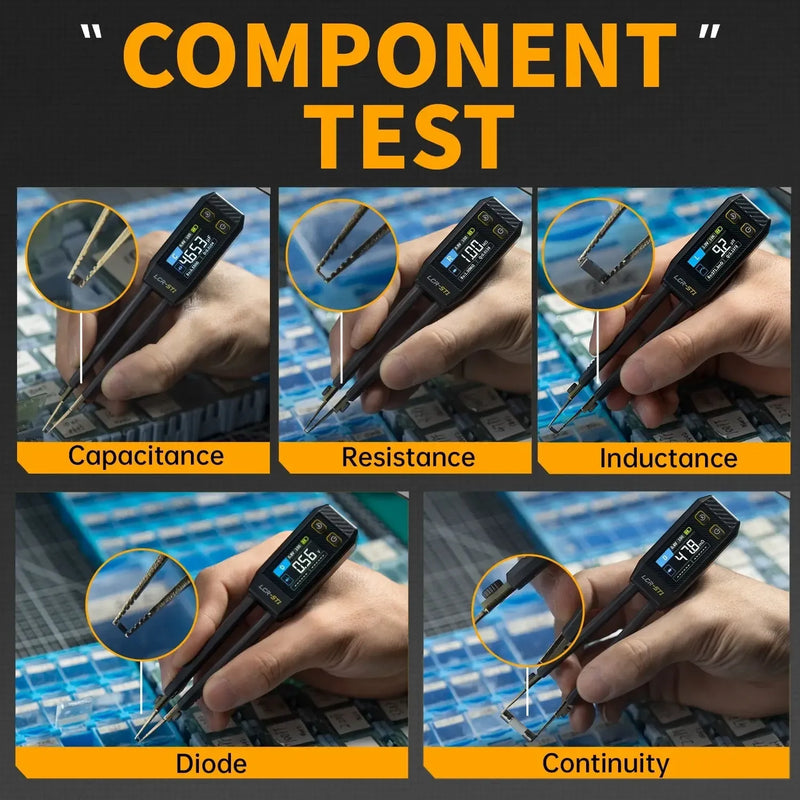

Instantly detects and measures resistance, capacitance, inductance, diodes, and continuity without manual range selection. - Wide Measurement Ranges
- Capacitance: 1 pF – 22 mF
- Inductance: 1 µH – 10 H
- Resistance: 10 mΩ – 10 MΩ
-

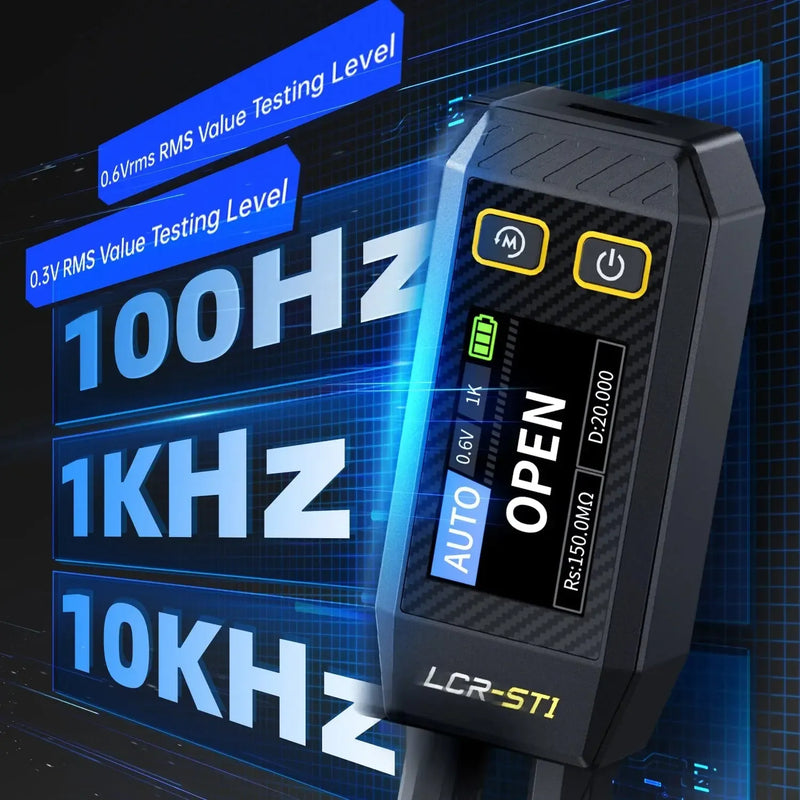

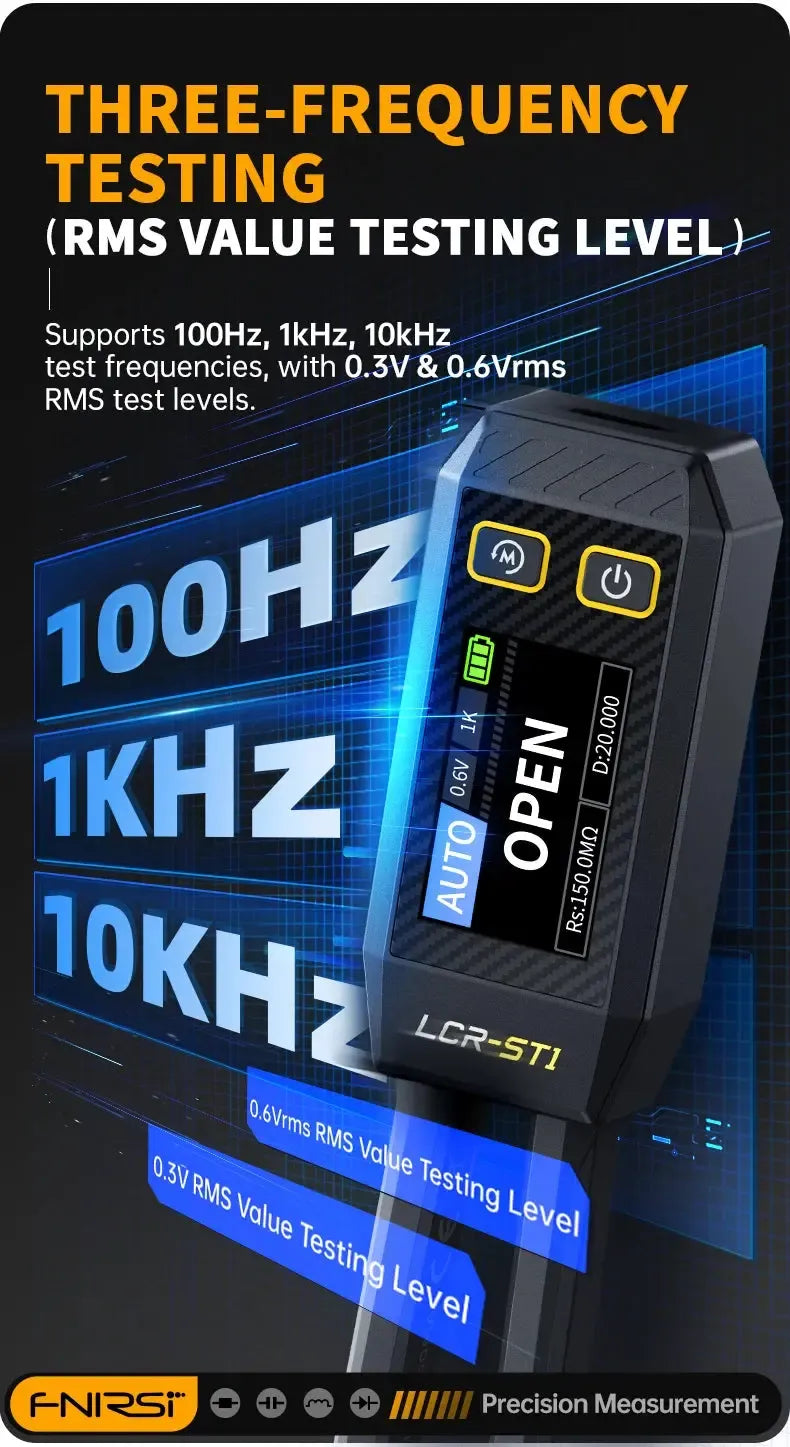

Multiple Test Frequencies
Choose 100 Hz, 1 kHz, or 10 kHz at 0.3 V or 0.6 V RMS to suit different component characteristics. -

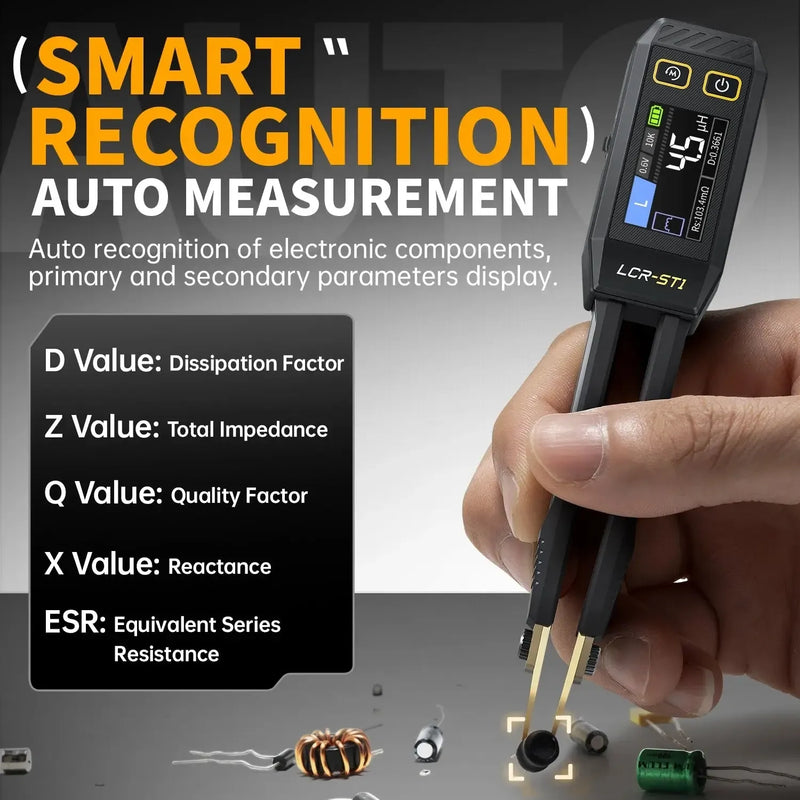

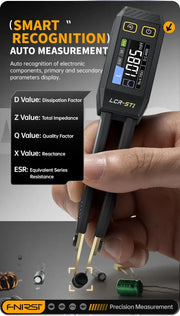

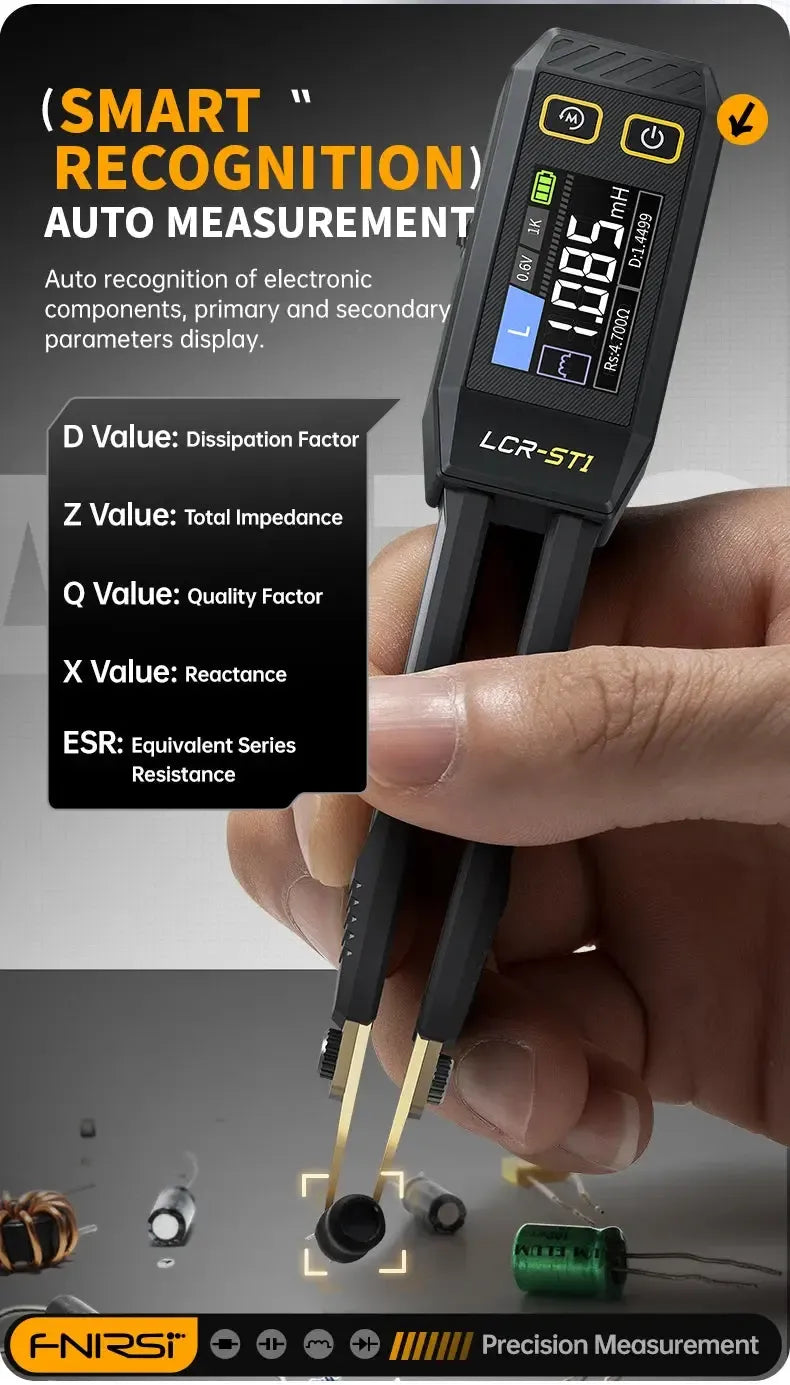

Advanced Parameter Display
View ESR, D-value, Q-value, impedance (Z), and reactance (X) for in-depth analysis. -

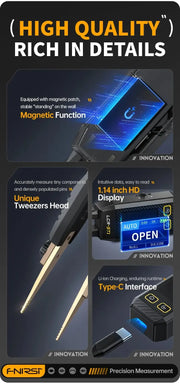

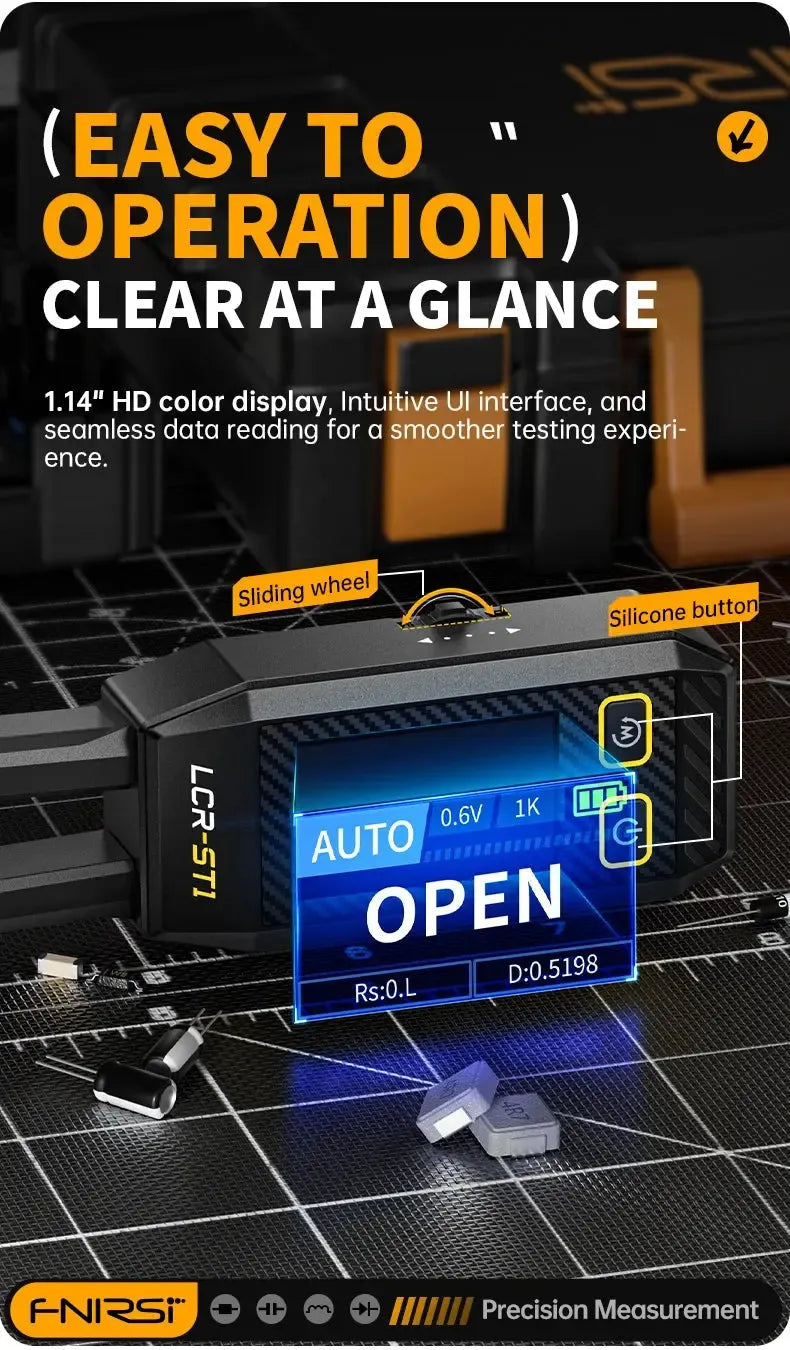

1.14″ Color TFT Screen
Bright, easy-to-read interface shows measurement results and status indicators at a glance. -

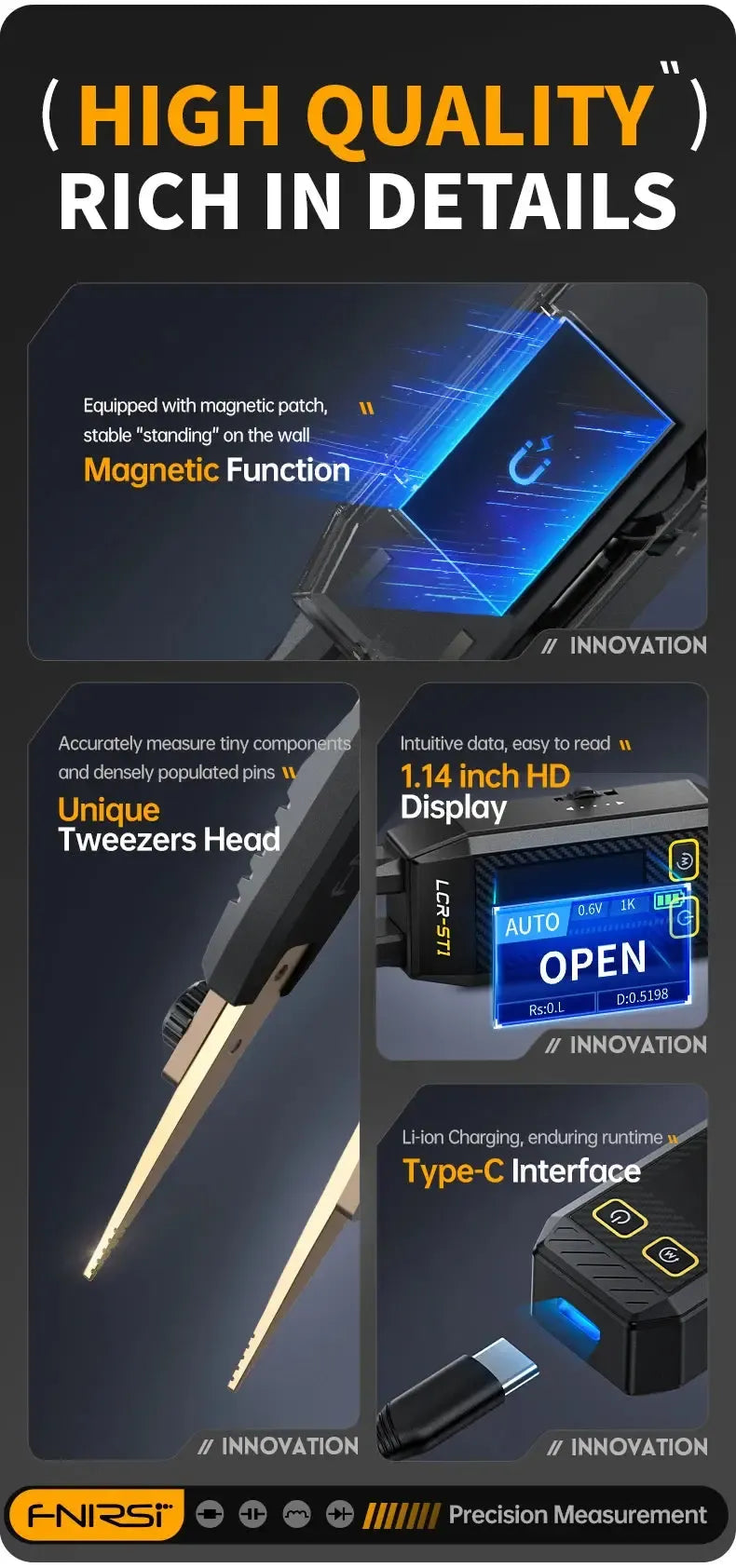

Magnetic Adsorption
Hands-free operation lets you attach the tweezer to any ferrous surface for stable measurements. -

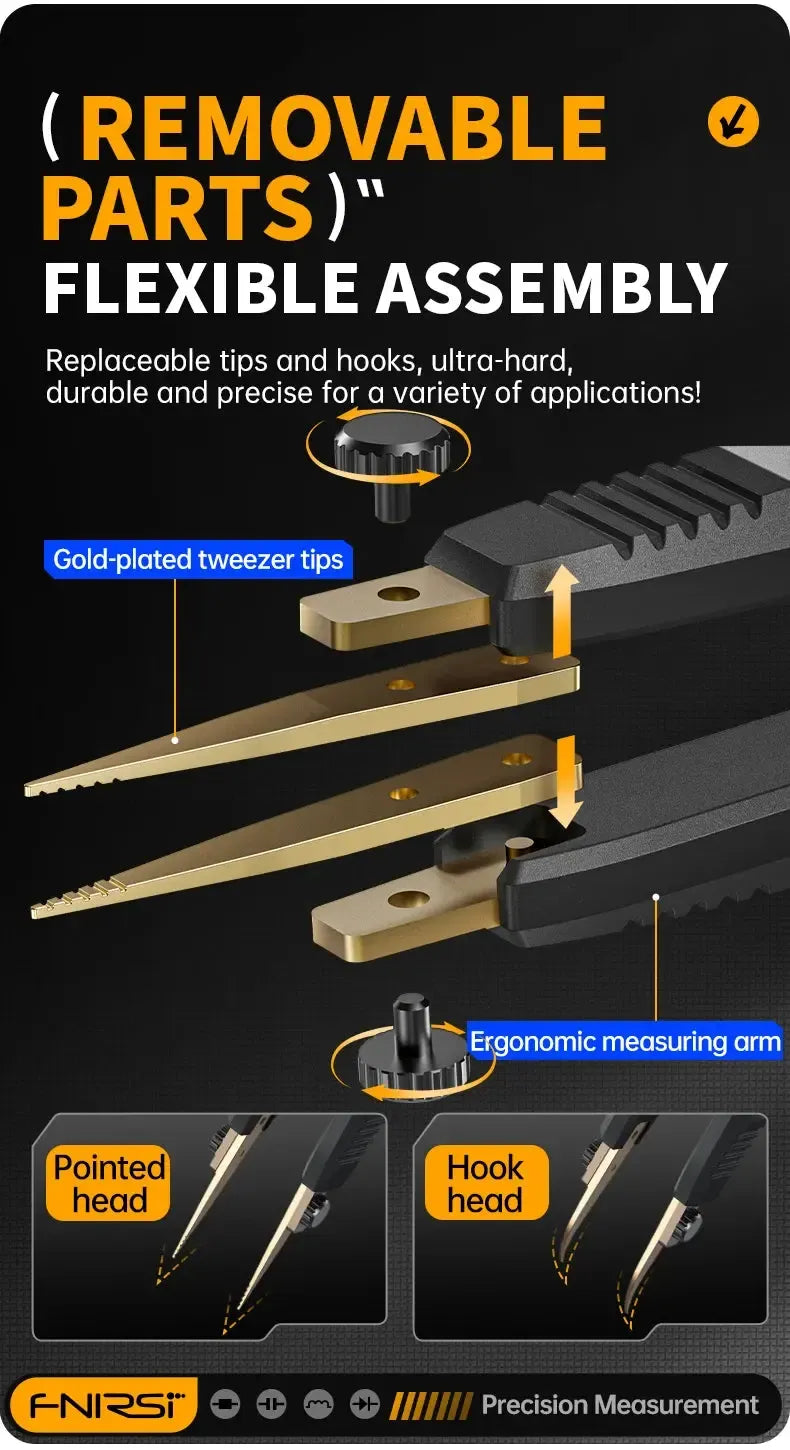

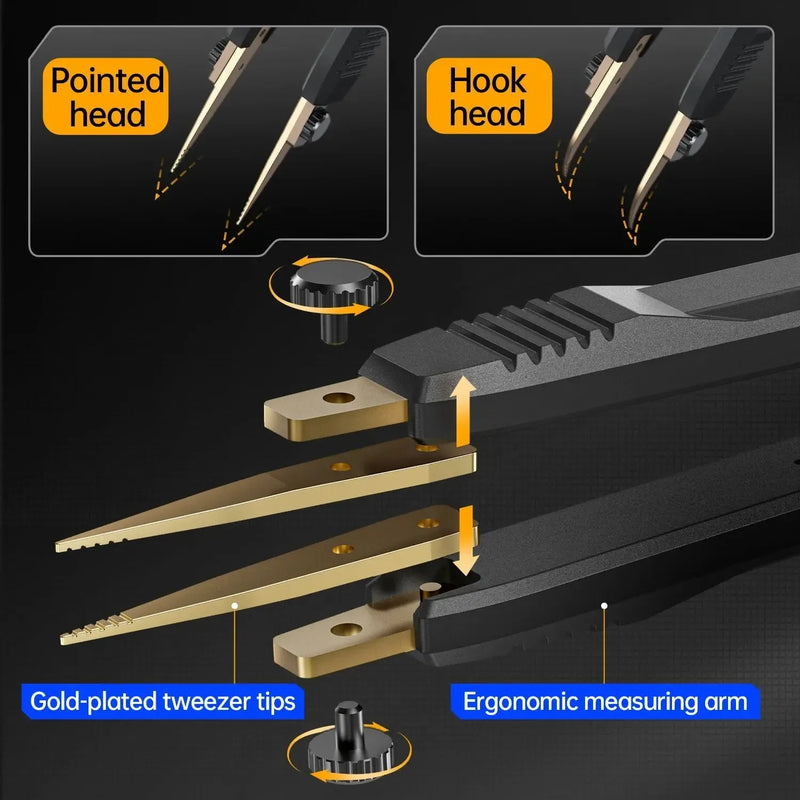

Interchangeable Tweezer Heads
Swap out probe tips quickly to match the component size or replace worn contacts. -
Smart Power Management
Built-in 250 mAh battery with USB-C charging; auto-shutdown conserves power when idle. -

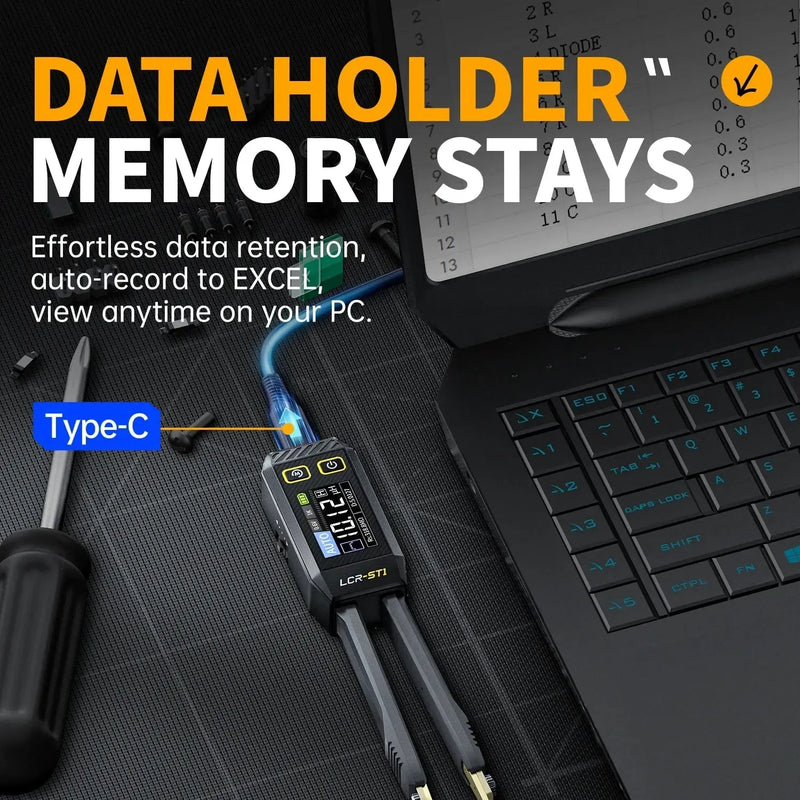

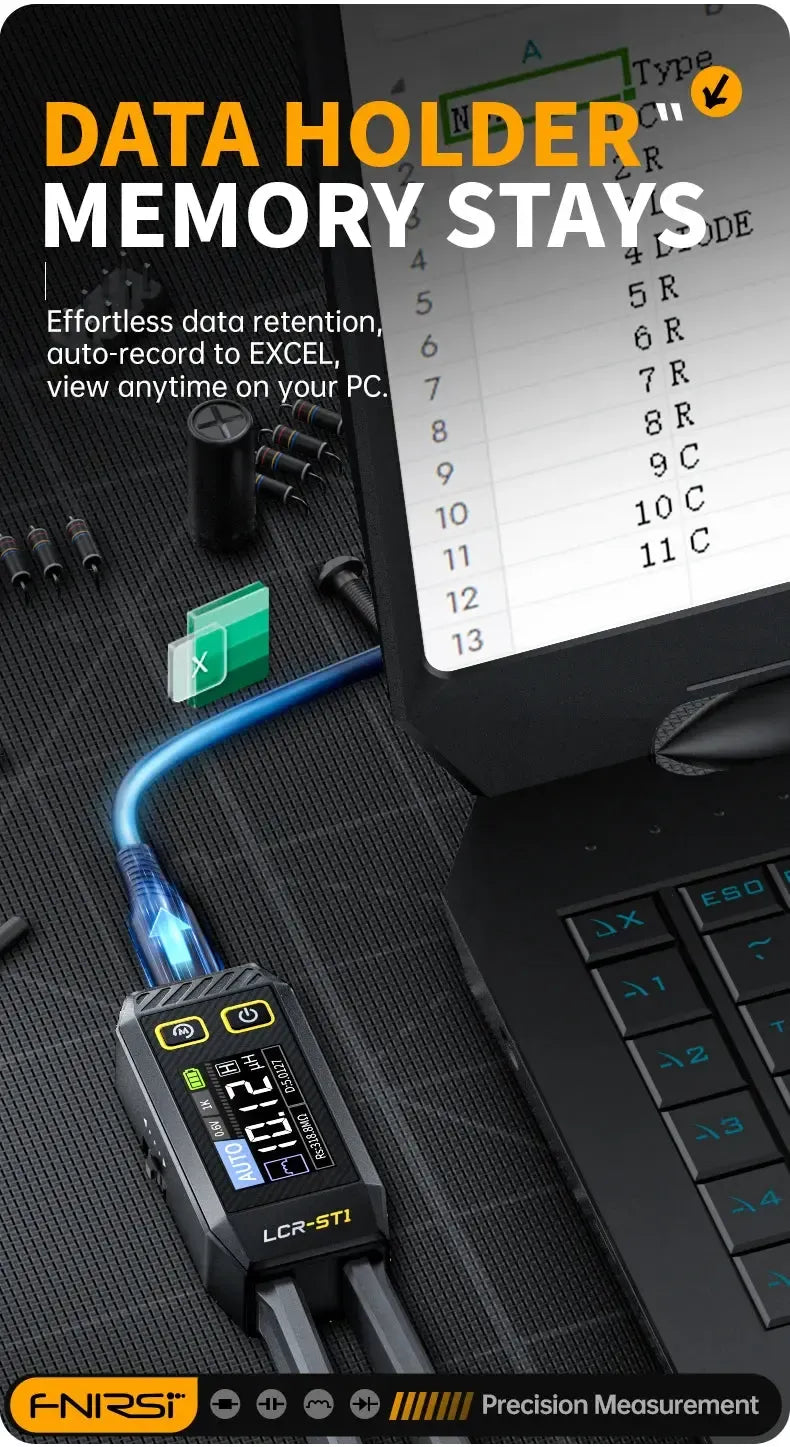

Data Hold & Export
Freeze measurements on the screen or export full test logs to your PC for record-keeping and analysis. -
Multilingual UI
Switch between English and Chinese for global usability.

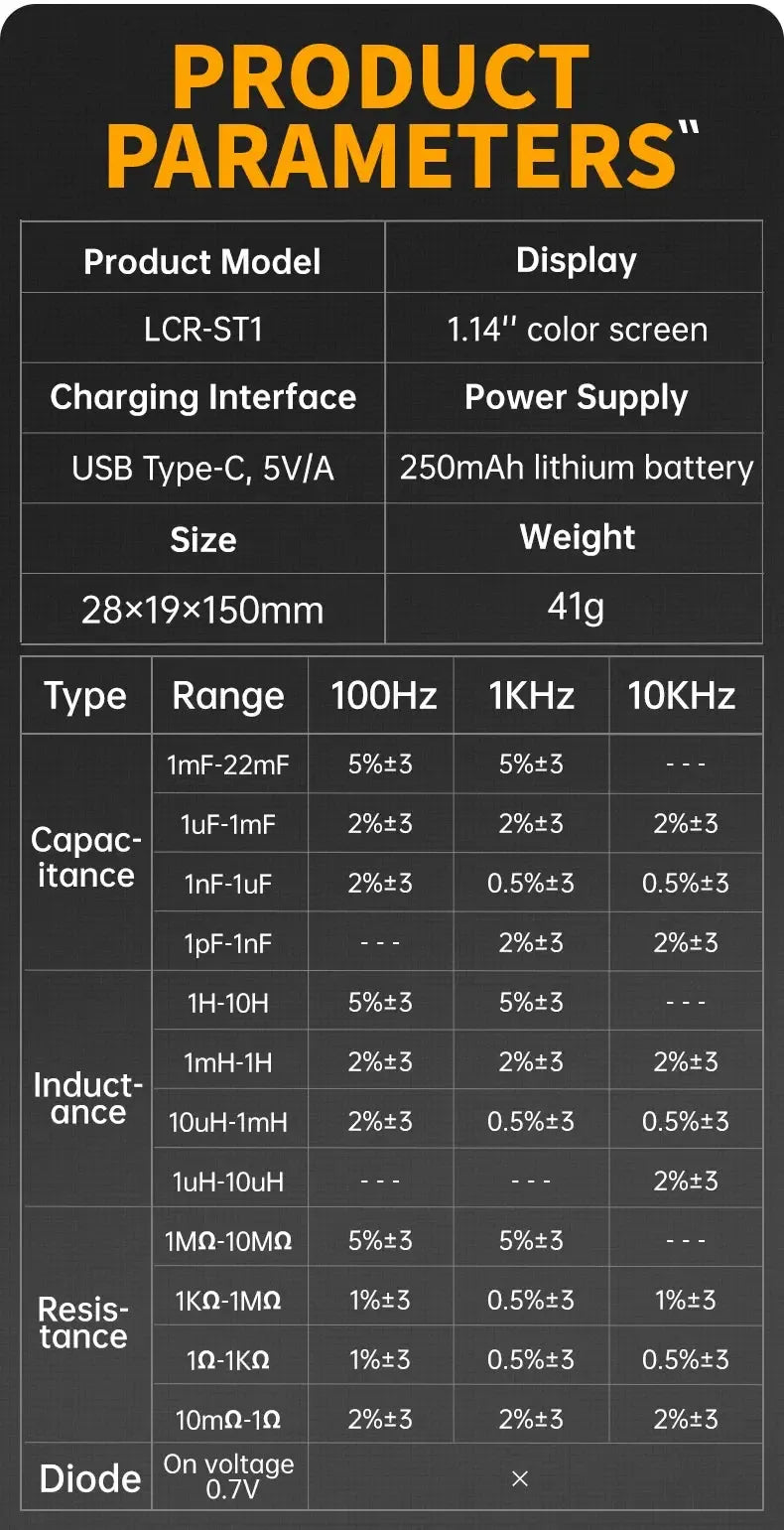

Specifications
| Parameter | Range / Detail |
|---|---|
| Capacitance | 1 pF – 22 mF |
| Inductance | 1 µH – 10 H |
| Resistance | 10 mΩ – 10 MΩ |
| Diode Test | Vf ≤ 0.7 V |
| Freq. Options | 100 Hz / 1 kHz / 10 kHz |
| Test Voltage | 0.3 V / 0.6 V RMS |
| Display | 1.14″ TFT color |
| Battery | 250 mAh Li-ion, USB-C charge |
| Auto-Shutdown | After 3 minutes idle |
| Dimensions | 150 × 28 × 19 mm |
| Weight | 41 g |
Why Choose the LCR-ST1?
- Speed & Convenience: No manual range switching grab accurate readings in seconds.
- Comprehensive Data: ESR, Q, D-value, and more give you deeper insight into component behavior.

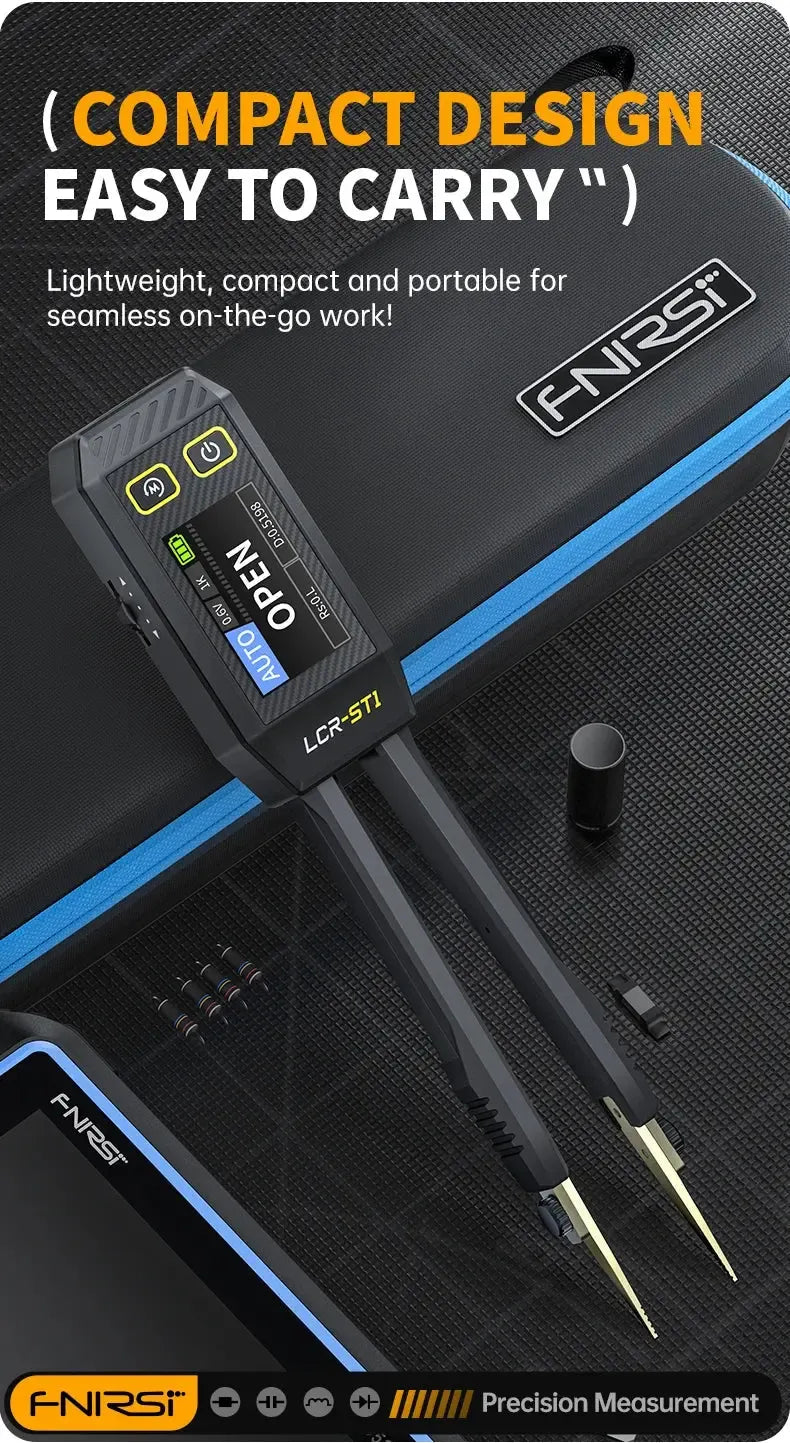

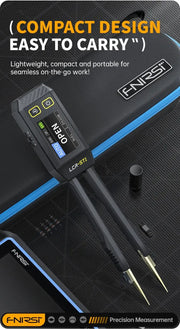

- Ultra-Portable: Featherlight and magnetic your perfect on-the-go test tool.
- Future-Ready: USB-C charging and PC data export keep you connected and efficient.
Upgrade your electronic testing toolkit with the FNIRSI LCR-ST1 Mini Smart Tweezer precision, portability, and powerful analysis in the palm of your hand.
Order now and take your measurements to the next level!
