Garmin 8-Pin Power/Data Cable echoMAP GPSMAP 010-11970-00
Garmin 8-Pin Power/Data Cable
For selected echoMAP and GPSMAP displays

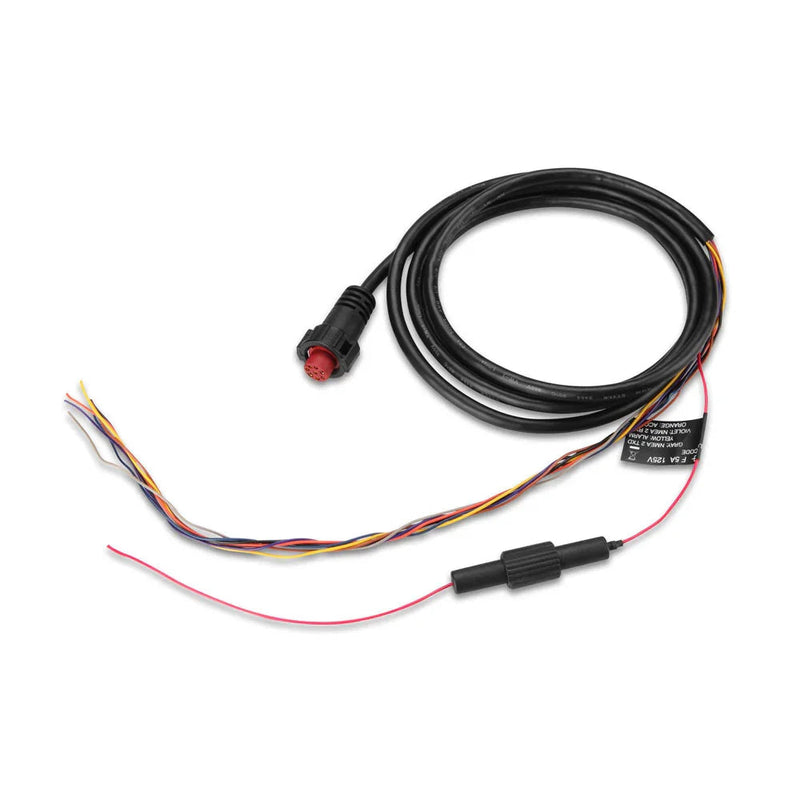

Genuine Garmin bare-wire power/data cable with an 8-pin display connector for selected echoMAP 50/70 and GPSMAP 5xx/7xx models.
Key Features
- ✔ 8-pin Garmin display connector
- ✔ Bare-wire power and data conductors
- ✔ Replacement for Garmin 010-11970-00
- ✔ For selected echoMAP and GPSMAP chartplotters
- ✔ Genuine Garmin installation accessory
Technical Specs
| Part type | Power/data cable |
| Display connector | Garmin 8-pin power/data |
| Cable end | Bare conductors |
| Transducer use | No |
| Garmin part | 010-11970-00 |
Compatibility / Fitment Guide
| Connection | Compatible use | Important exclusions |
|---|---|---|
| echoMAP | 50dv, 50s, 70dv and 70s | Confirm the exact model label; later ECHOMAP generations use different cables. |
| GPSMAP 5xx | 527xs and 557 | Do not substitute compatibility from another GPSMAP 5xx model without checking its parts list. |
| GPSMAP 7xx | 721, 721xs, 751 and 751xs | Use the installation guide for power, fuse and data-wire assignments. |
| Not compatible | Transducer sockets; ECHOMAP units requiring threaded 4-pin power/data; devices using a different 8-pin keying | An 8-pin count alone does not distinguish power/data from sonar. |
Installation: match part 010-11970-00 in the chartplotter manual, identify the port labelled for power/data and follow Garmin's colour code and fuse specification. Individually insulate any unused data conductors.
OEM Cross Reference
| Garmin part number | 010-11970-00 |
| 4Boats SKU | 230-0101197000 |
| Brand / supply | Genuine Garmin accessory |
Questions & Answers
Is this an 8-pin transducer cable?
No. It is the chartplotter power/data lead.
Will it fit ECHOMAP Plus or UHD?
Not unless the exact model's Garmin parts list specifies 010-11970-00; those generations commonly use different connectors.
Are the ends pre-terminated for NMEA?
The display end is terminated; the installation end has bare conductors for the specified power/data connections.
Before ordering: compare the Garmin part number, connector pin count, keying and device documentation. Pin count alone is not a complete fitment check.
