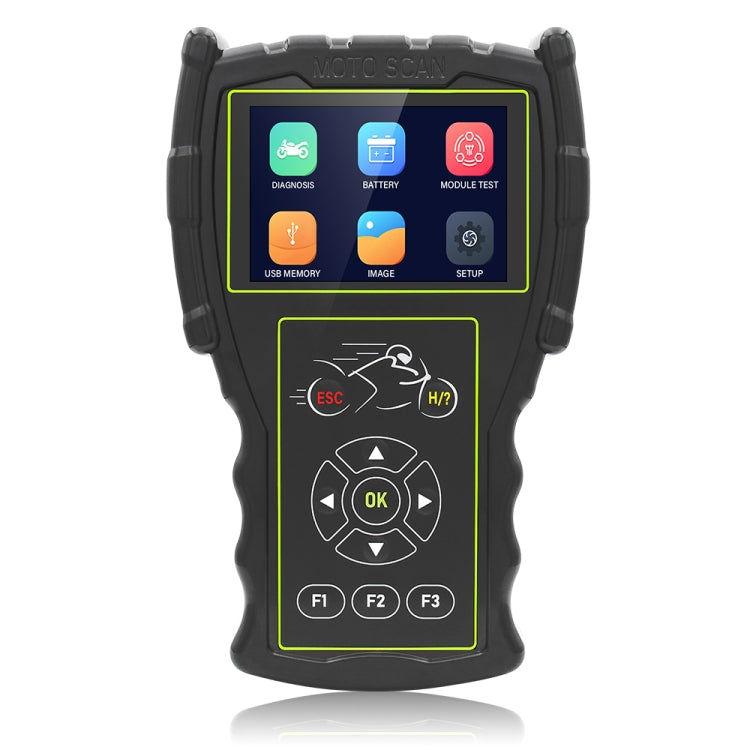

JDiag M100 PRO Intelligent Motorcycle Electronic Fuel Injection System Diagnostic Instrument, Fully Equipped Version, JDiag M100 PRO
2. It allows technicians to perform factory service procedures such as resetting service lights, unlocking immobilizers and configuring immobilizers/alarms, making injection adjustments (COTrimmer), adjusting throttle position sensor (TPS), resetting auto-adaptive parameters, and adjust the idle speed.
3. The tool displays real-time data, displays ECU data, reads stored faults (history) or real-time data (RPM, battery voltage, throttle).
4. List of supported motorcycles: Hartford, Aeon, Honda, SYM, Yamaha, Suzuki, Kymco, Kawasaki, Piaggio, PGO, KTM, etc.
5. Support multiple languages: English, Chinese, Thai, Indonesian, Vietnamese, Spanish, Turkish, French, Cambodian, Japanese, Korean.
Feature:
1. Hand-held operation, easy and flexible to use
2. Support SD card to store data and upgrade
3. Reserved CAN bus interface
4. 3.5-inch color screen, clear display
5. Dynamic data with values ??and waveforms

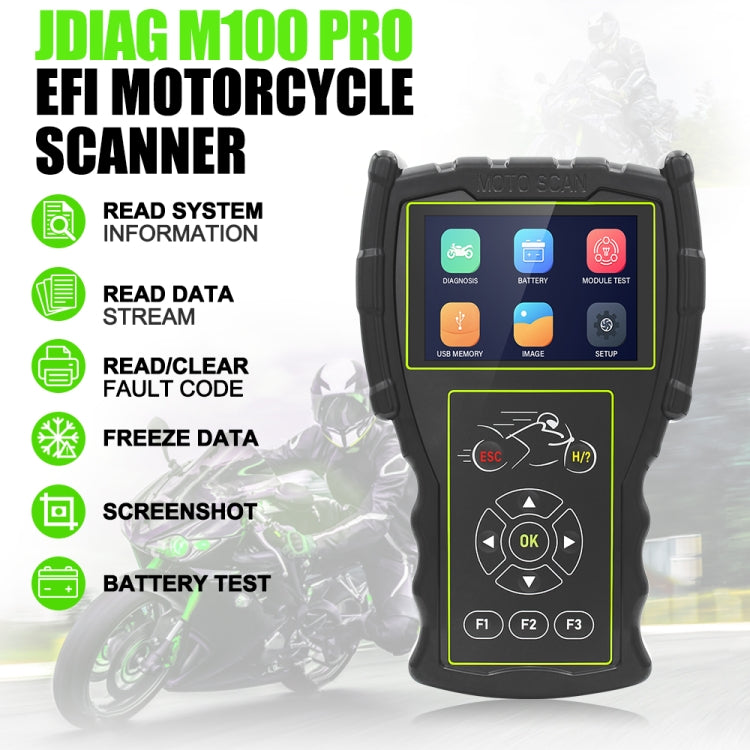

Function:
1. Read system information
2. Read the data stream
3. Read the fault code
4. Clear the fault code
5. Freeze data
6. CO idle speed adjustment
7. ABS system test
Specification:
1. Power supply: DC10-15V
2. Working current: 250mA
3. Storage temperature: -10 degrees Celsius to 85 degrees Celsius
4. Operating temperature: 0 degrees Celsius to 70 degrees Celsius
5. Humidity: less than percent 90
6. Upgrade port: USB port
7. Communication port: COM port
