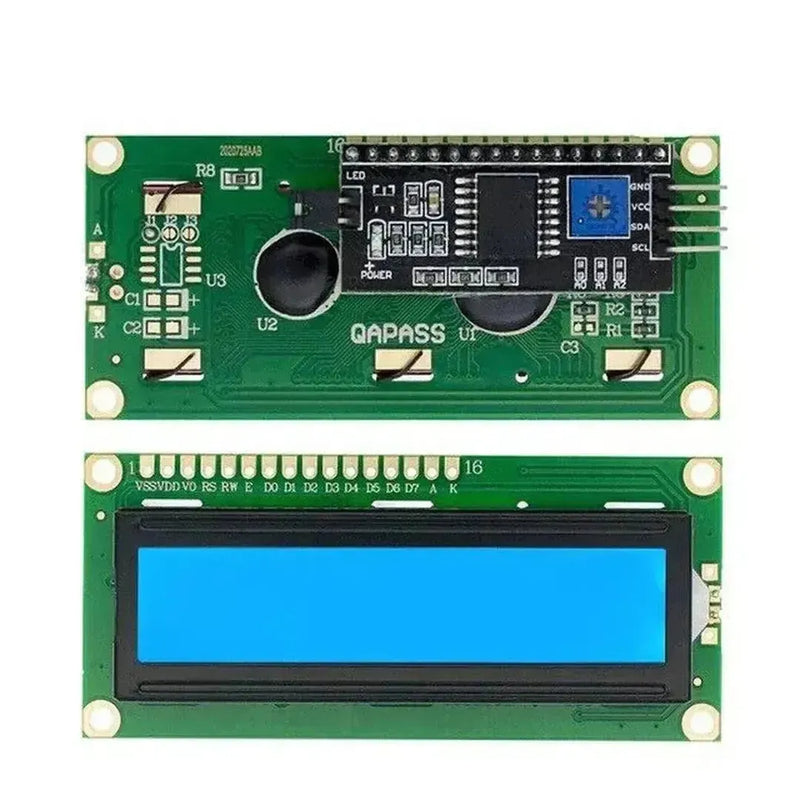

LCD Display Module 16x2
Product Overview
Streamline your next project’s display with our 16×2 LCD Display Module and I²C Interface Adapter. Delivering crystal-clear text, low-pin-count wiring, and broad compatibility, this duo is perfect for Arduino, Raspberry Pi, and other microcontroller applications from simple readouts to sophisticated industrial controls.
Key Features & Benefits
-

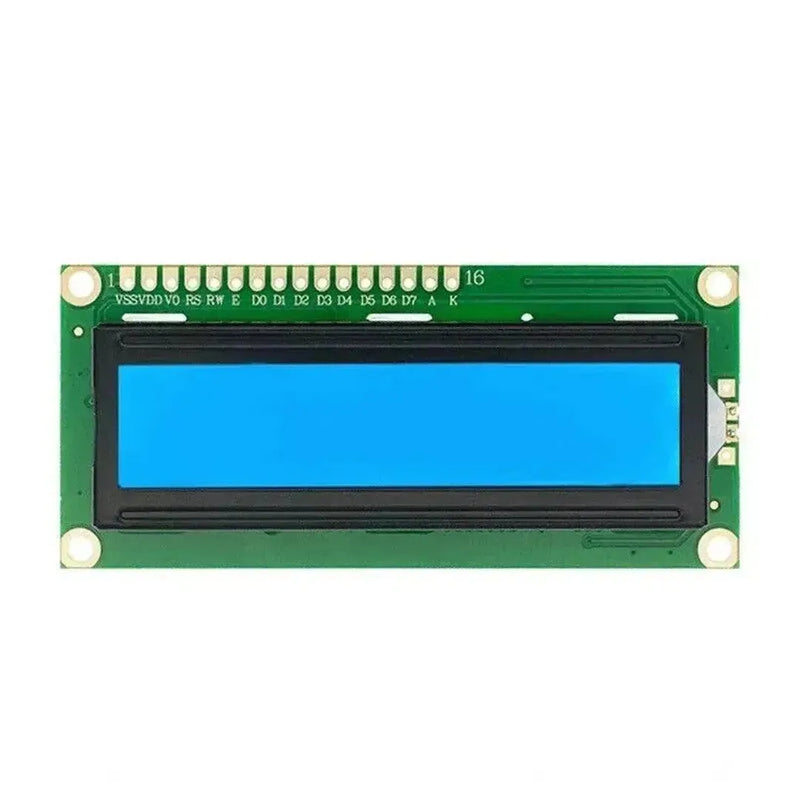

Vibrant 16×2 Character Display
• Blue LED backlight with adjustable contrast for crisp, easy-to-read characters in any lighting. -
Wide Viewing Angle & High Contrast
• Readable from nearly 180°, ensuring information is visible from multiple positions. -
HD44780-Compatible Controller
• Plug-and-play compatibility with established libraries and code examples. -

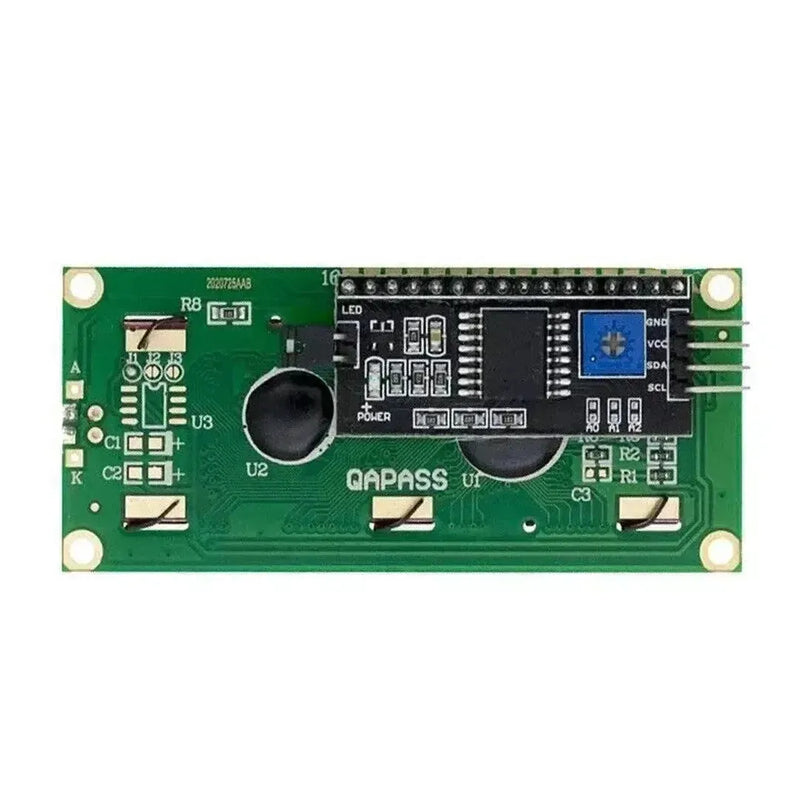

4-Wire I²C Interface
• Reduces GPIO usage from seven pins to just two (SDA, SCL), plus power and ground. -
Expandable I/O
• Frees up pins for sensors, SD cards, relays, and more ideal for complex, multi-sensor systems. -
Standard 5 V Operation
• Powers directly from most development boards without level shifting. -
Compact Footprint
• Module: 80 × 35 × 11 mm; Viewing area: 64.5 × 16 mm fits neatly into tight enclosures.
Technical Specifications
| Specification | Details |
|---|---|
| Display Size | 16 characters × 2 lines |
| Backlight Color | Blue LED |
| Controller | HD44780-equivalent |
| Interface Module | I²C (uses PCF8574 I/O expander) |
| I²C Address | 0x27 (default, configurable) |
| Operating Voltage | 5 V DC |
| Logic Level | 5 V TTL |
| Viewing Angle | ≈178° horizontal & vertical |
| Module Dimensions | 80 × 35 × 11 mm |
| Viewing Area | 64.5 × 16 mm |
Typical Applications
| Application | Benefit |
|---|---|
| Arduino Projects | Simple wiring & seamless library support |
| Raspberry Pi Dashboards | Real-time sensor readouts with minimal GPIO use |
| Industrial Displays | Status monitors, error codes, and menu systems |
| Networking Gear | Rack-mount readouts and device diagnostics |
| Consumer Electronics | User prompts on DIY gadgets and home-automation |
| Educational Kits | Hands-on learning for students and hobbyists |
What’s in the Box
- 1 × 16×2 LCD Display Module (HD44780-compatible)
- 1 × I²C Interface Adapter (PCF8574 I/O expander)
- 1 × 4-pin Male Header (pre-installed)
Why Choose Our Display Solution?
- Effortless Integration: Plug-and-play with standard libraries—no custom drivers required.
- Pin-Efficient: I²C interface frees up up to five GPIO pins for other peripherals.
- Superior Readability: High-contrast characters and wide viewing angles ensure your data is clear.
- Built to Last: Robust construction and proven controller for years of reliable service.
- Cost-Effective: Professional display performance without the premium price tag.
Elevate your electronics with a display solution that combines clarity, simplicity, and flexibility. Order your 16×2 LCD Display Module with I²C Interface today and make every character count!
