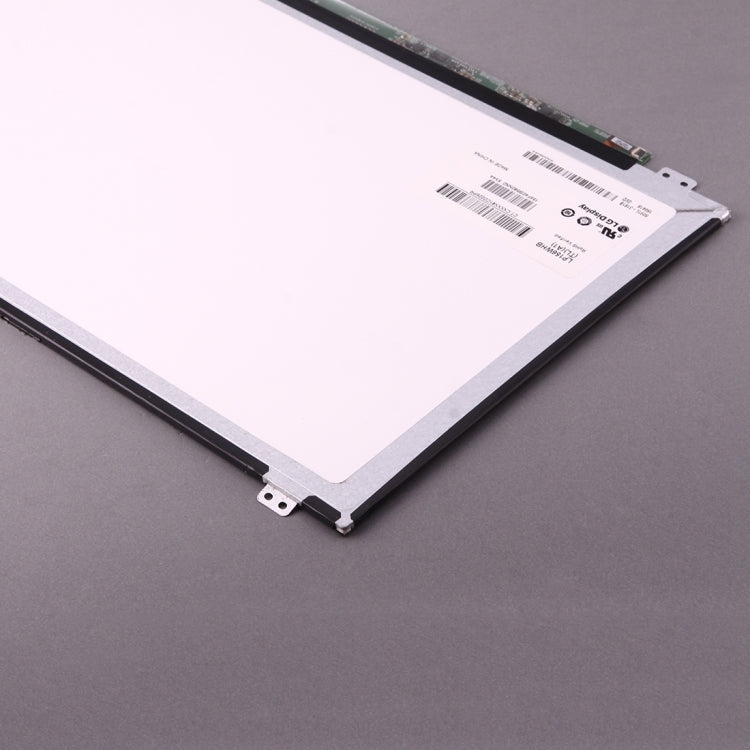

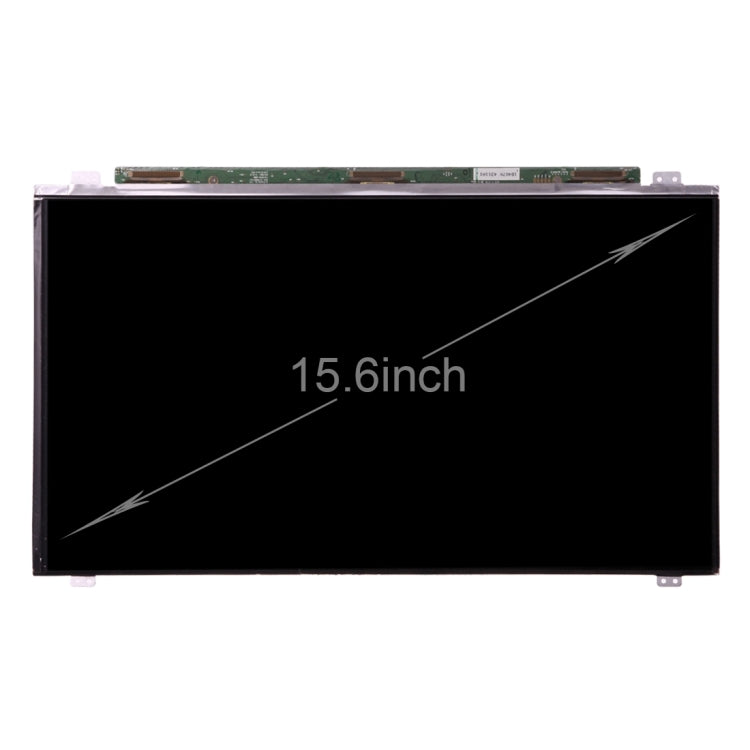

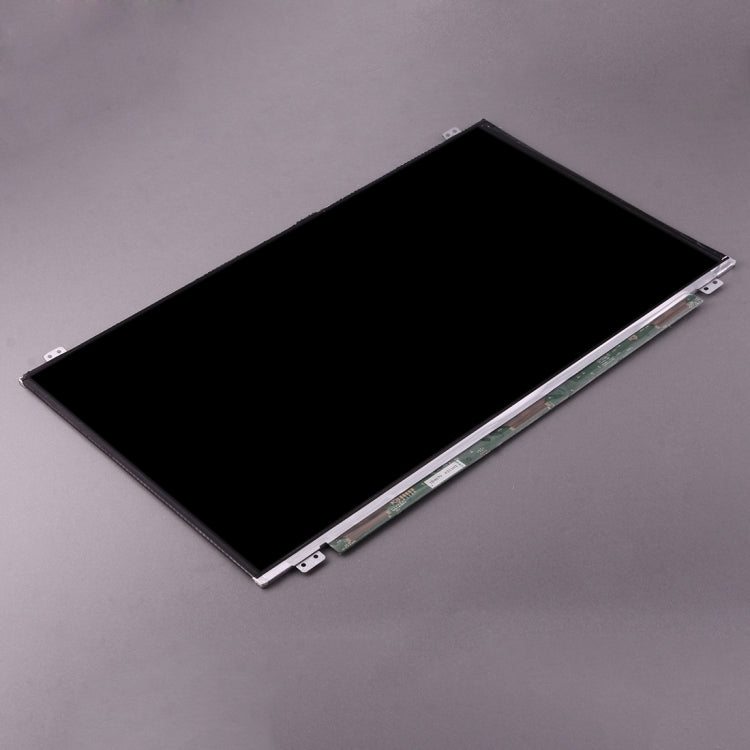

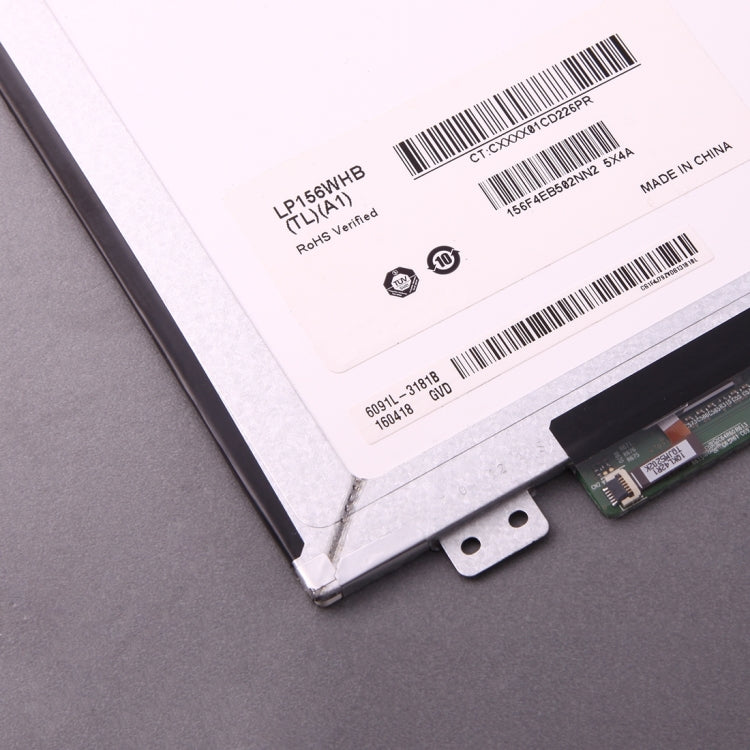

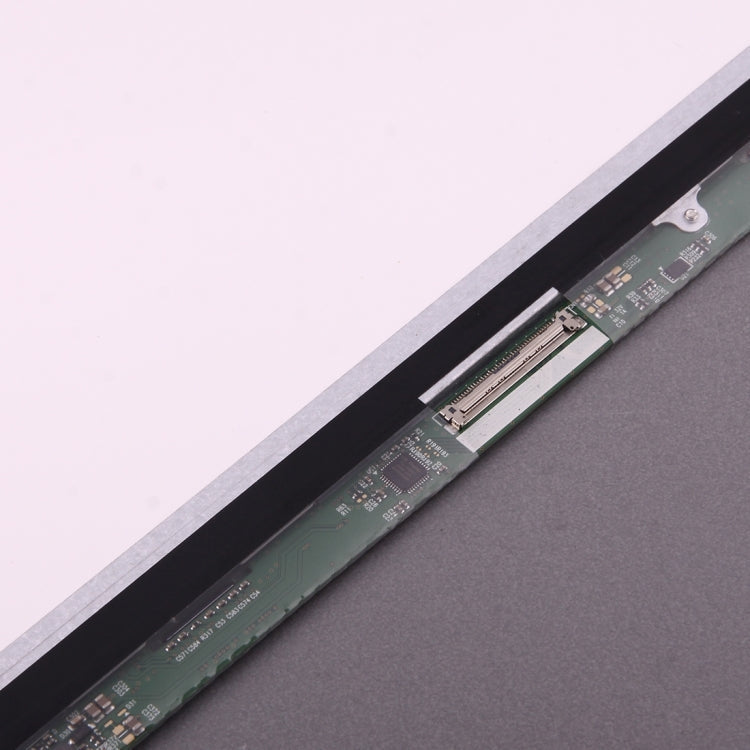

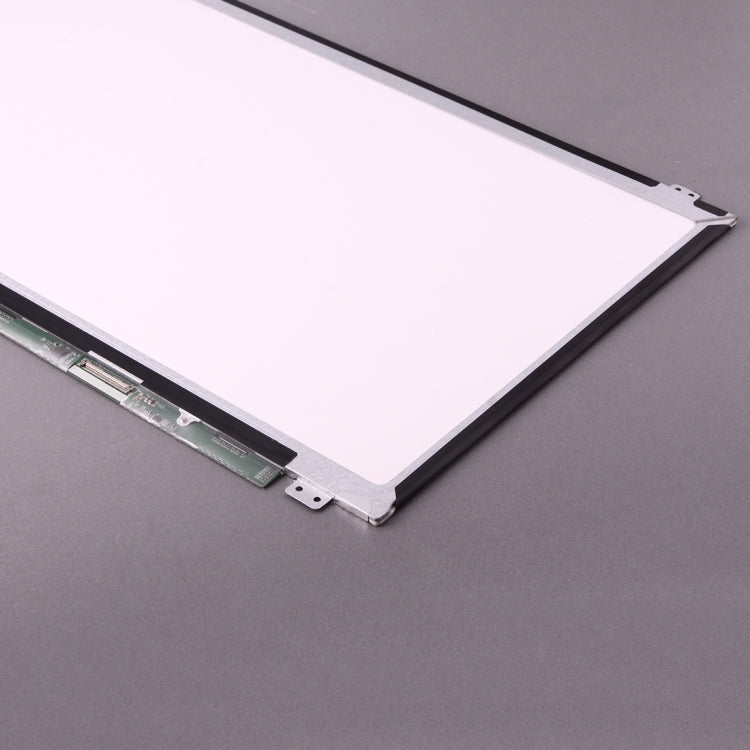

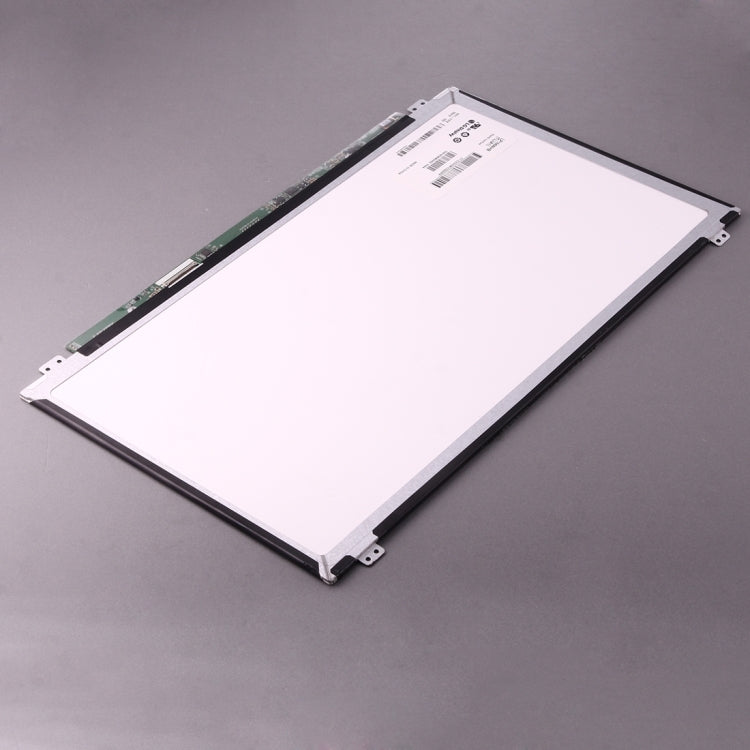

LP156WHBTLA1 15.6 inch 40 Pin 16:9 High Resolution 1366 x 768 Laptop Screens LED TFT Panels

Original price £23.99 - Original price £23.99
Original price
£23.99
£23.99 - £23.99
Current price £23.99
1. High quality replacement screen panel.
2. High resolution 1366 x 768 pixel.
3. 16:9 aspect ratio standard screen.
4. 15.6 inch diagonal screen size.
5. Backlight Lamp: LED type.
6. Suitable model: NT156WHM-N10 LP156WHB B156XW04/XTN03 LP156WH3/WHU.


Specification:
General
Model LP156WHBTLA1
Screen Size 15.6 inch
Screen Type LCD module, a-Si TFT-LCD
Resolution 1366 (RGB) x 768 (WXGA)
Brightness (cd/m2) 200
Power Supply 3.3V
Connector LVD (1 ch, 6 bit), 40 pin, Terminal
Working Mode TN, Normal white display, Transmissive
Display Color 262k 45%(CIE1931)
Contrast Ratio 500:1
Viewing Angle 40/40/15/30(CR>=10)
Shape Style Medium thick screen (PCBA Straight, 3.4~4mm)
Surface Mirror (Haze 0%), Hard coating (3H)
Backlight Type WLED, 12K hours, with LED diver
Response Speed 16 (Typ.) (Tr + Td) ms
View Size 347.5 x 196.8mm
Display Size 344.232 x 193.536mm
Size 35.8*21.6*0.4cm
Weight 391g
Environment
Operating Temperature 0~50 Degrees Celsius
Storage Temperature -20 ~ 60 Degrees Celsius
Package Weight
One Package Weight 1.15kgs / 2.54lb
One Package Size 45cm * 33cm * 8cm / 17.72inch * 12.99inch * 3.15inch
Qty per Carton 10
Carton Weight 12.50kgs / 27.56lb
Carton Size 62cm * 40cm * 30cm / 24.41inch * 15.75inch * 11.81inch
Loading Container 20GP: 358 cartons * 10 pcs = 3580 pcs
40HQ: 832 cartons * 10 pcs = 8320 pcs

SKU CLS2308
