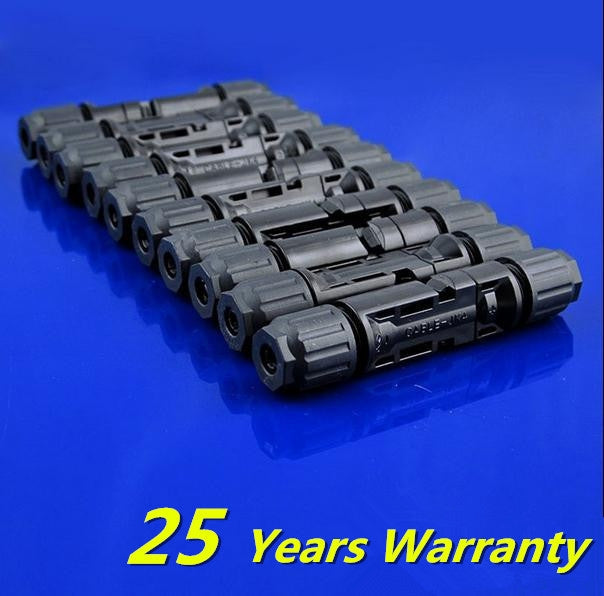

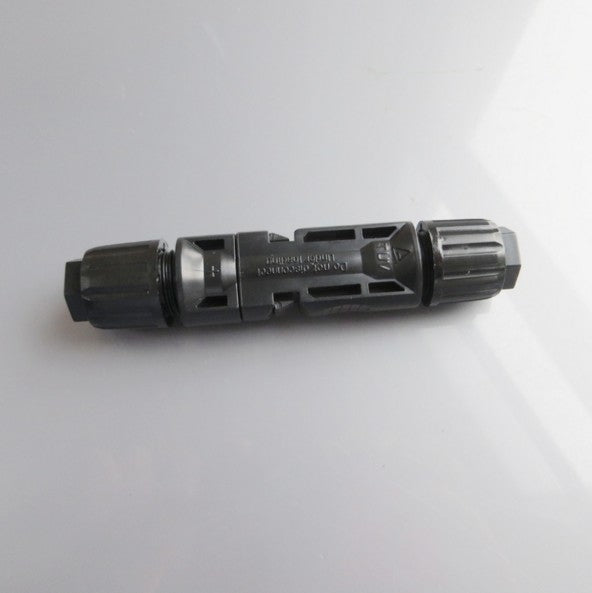

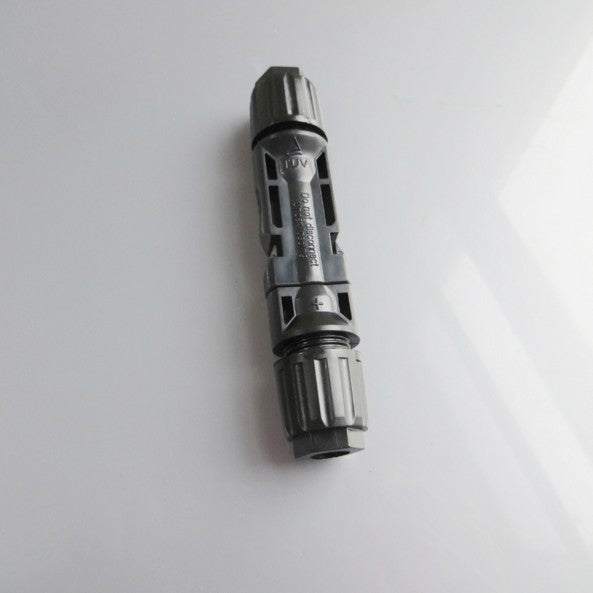

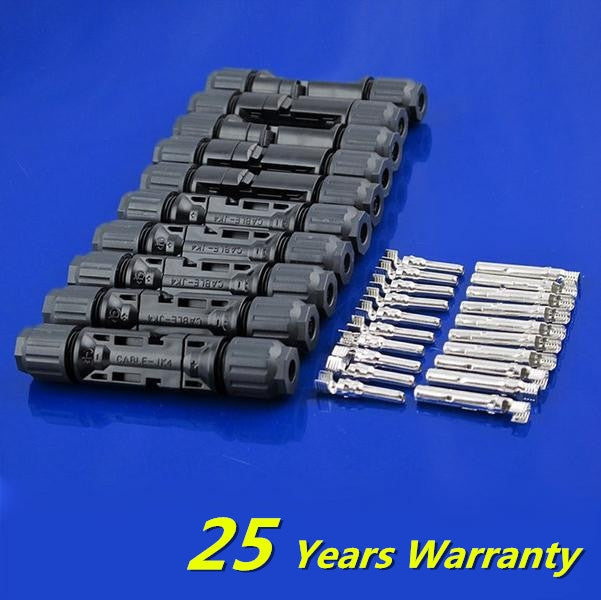

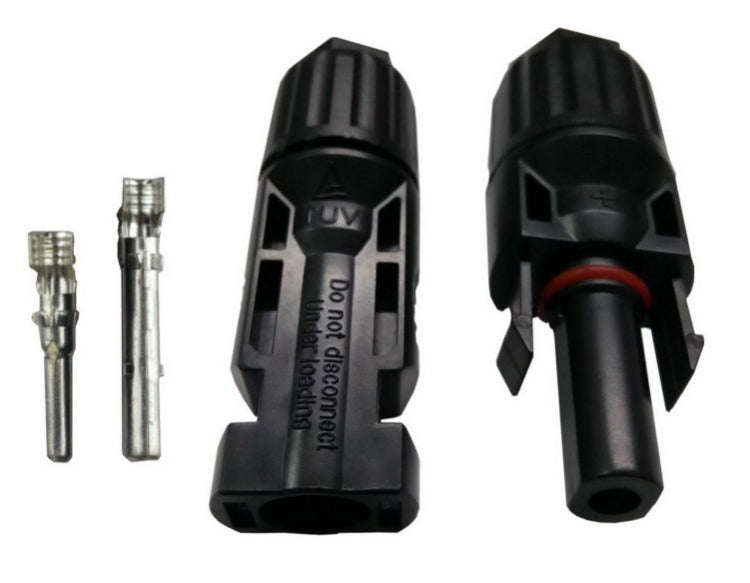

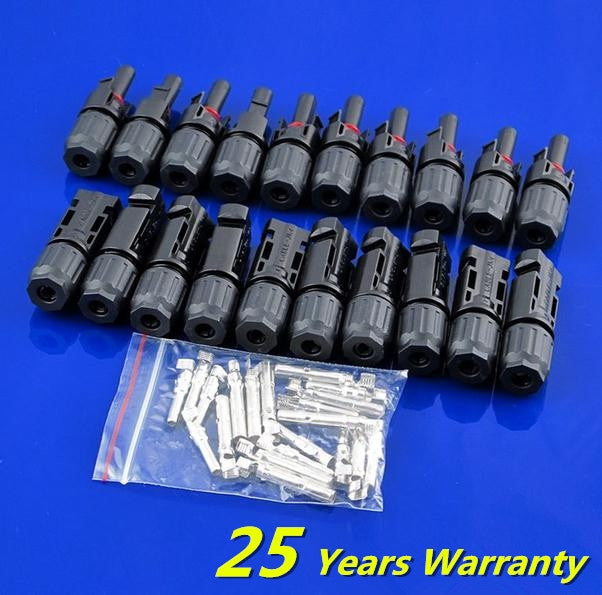

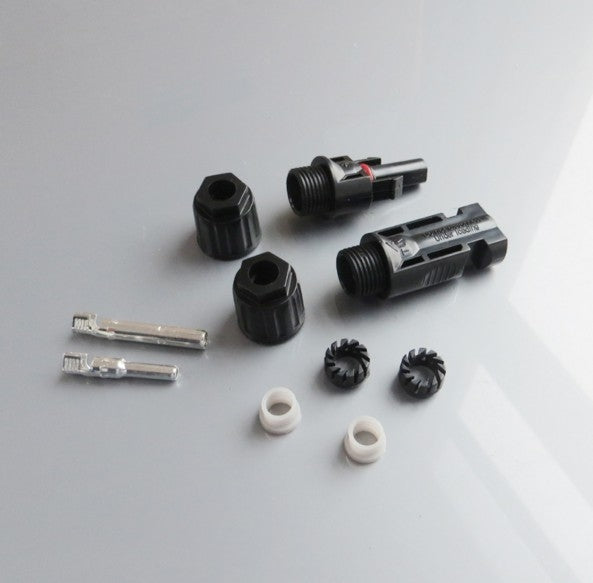

MC4 Connector male female 30A 1000V Solar Panel Branch Series
- Model Number:EU
- Connection:Plug In
- Output Type:DC
- Brand Name:ZOORUI
- Usage:Electric Tool
- Output voltage:DC1000V
- Usage:solar
Product No:MC4
Rated Voltage TUV 1000V DC / UL 600V DC
Rating Current 20A-30A
Suitable cable cross sections 2.5mm2-6.0mm2 / 14AWG-10AWG
Pin dimension:4.0mm
Proof voltage:DC 8KV(1Min)
Pollution degree: 2
Protection class: Class II
Contact Material: Copper, tin-plated
Contact Resistance: 5mW
Connector Material: PPO
Degree of Protection: IP IP67(IEC 60529)
Withdrawal Force: 50N
Insertion Force: 50N
Temperature :-40-+85degree
Flame Class: UL94V - 0
