Osculati 30A 220V Blue Shore Power Cable Plug 14.332.00
Osculati 30A 220V Blue Shore-Power Plug
Osculati Marine Equipment | 14.332.00

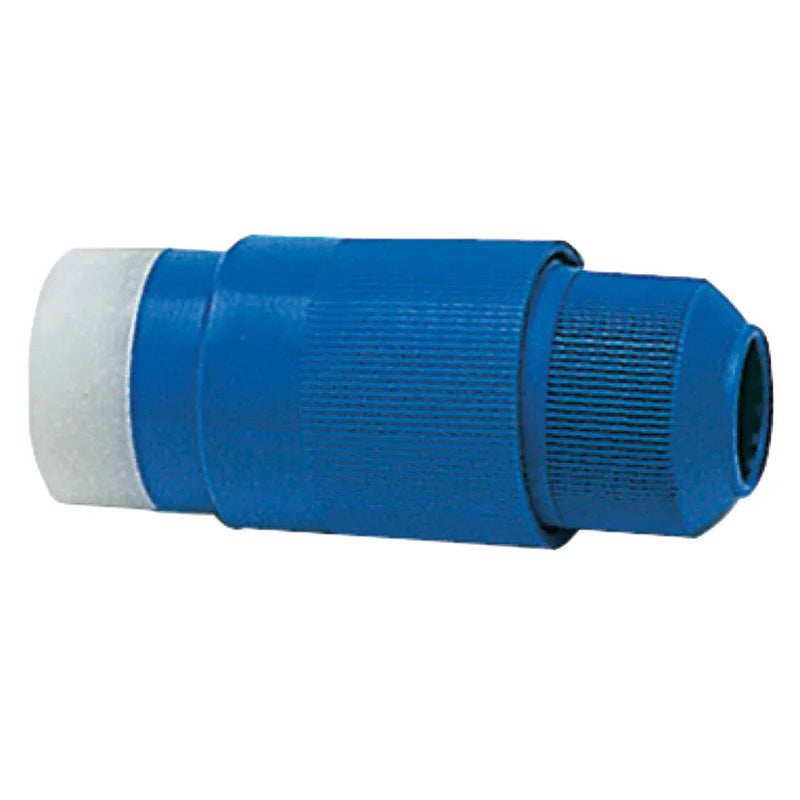

Osculati 14.332.00 is the blue cable-mounted plug in the manufacturer’s 30 A, 220 V shore-power connector set. It combines a polycarbonate/Moplen body, cable locking system and silver-plated brass contacts.
Key Features
- ✔ Rated 30 A at 220 V
- ✔ Polycarbonate and Moplen construction
- ✔ Silver-plated brass contacts
- ✔ Integral cable-locking system
- ✔ Blue shore-power identification
- ✔ Optional matching protective cap 14.333.00
Technical Specs
| Component | Cable-mounted shore-power plug |
| Rated current | 30 A |
| Rated voltage | 220 V nominal |
| Body | Polycarbonate + Moplen |
| Contacts | Silver-plated brass |
| Colour | Blue |
| Osculati code | 14.332.00 |
| 4Boats SKU | 556-14.332.00 |
Compatibility / Fitment Guide
Confirmed mate: Osculati shore-power socket 14.331.00 from the same 30 A / 220 V connector family. The optional PVC cap 14.333.00 covers this plug when disconnected.
Cable selection: conductor size, number of cores, outer diameter and strain relief must suit the full 30 A circuit, installation length and local marine standard. Confirm the terminal markings for line, neutral and protective earth.
Electrical system: install only on a protected 220–230 V AC shore circuit with the required RCD/RCBO, over-current protection and earthing arrangement.
Not compatible: do not mate with visually similar 16 A CEE, 32 A CEE, 125 V twist-lock or other-brand connectors unless the manufacturer confirms the same interface.
OEM Cross Reference
| Osculati plug | 14.332.00 |
| Matching socket | 14.331.00 |
| Matching PVC cap | 14.333.00 |
| 4Boats SKU | 556-14.332.00 |
Questions & Answers
Is this the boat-side inlet?
No. This is the cable-mounted plug; 14.331.00 is the matching socket/inlet.
Is the cap included?
No. The matching cap is 14.333.00 unless explicitly bundled.
Can it be wired to any three-core cable?
No. Cable type, conductor area and outside diameter must suit a 30 A marine shore lead and the strain relief.
Is it suitable for 110/125 V shore power?
No such compatibility is claimed; it is specified as 30 A, 220 V.
AC shore-power work can cause fire, electric shock or galvanic hazards. Installation and testing should be completed by a competent marine electrician.
