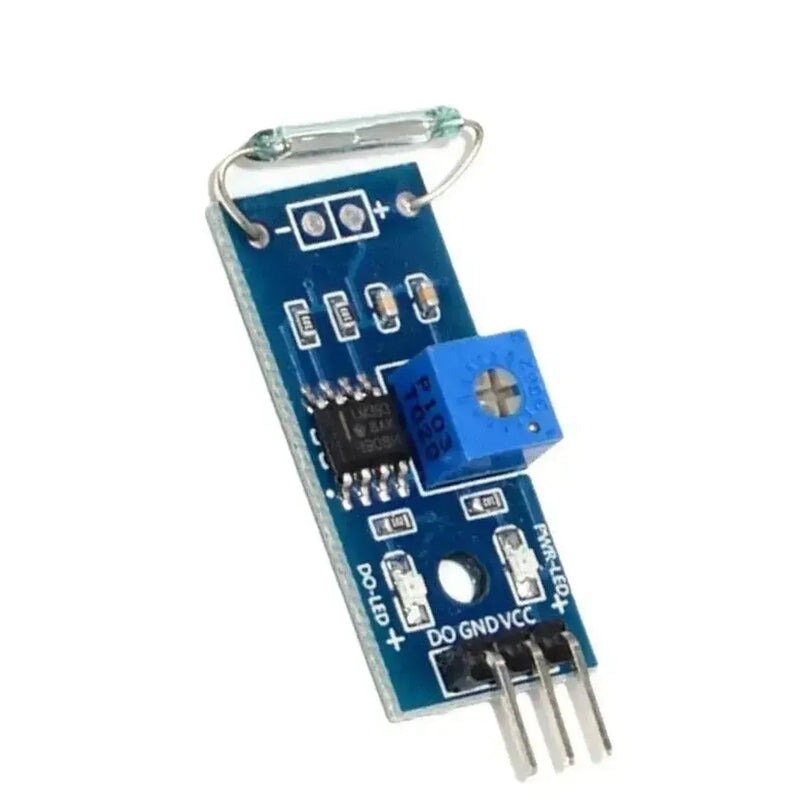

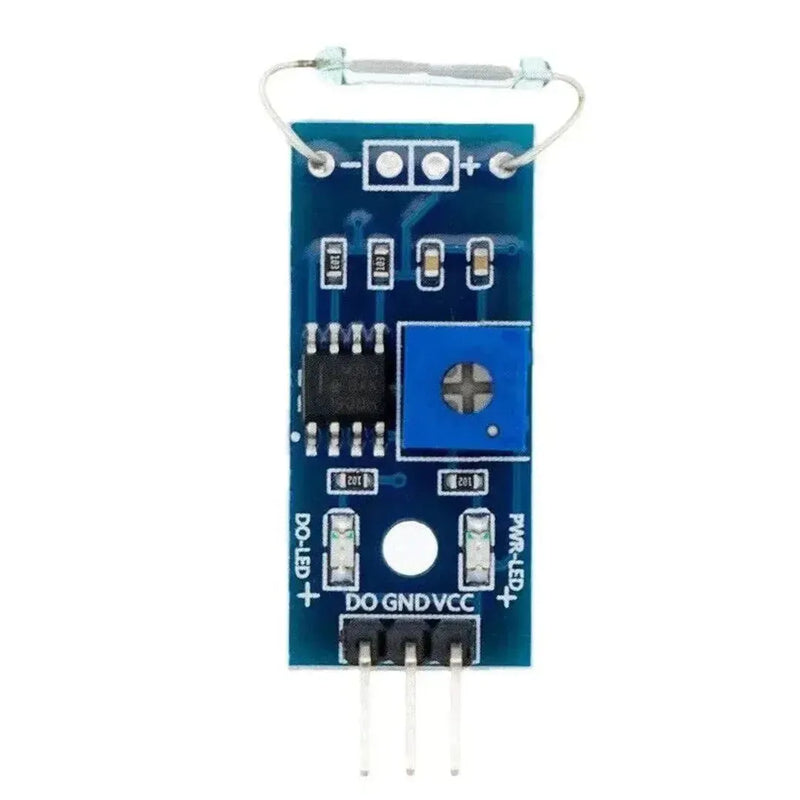

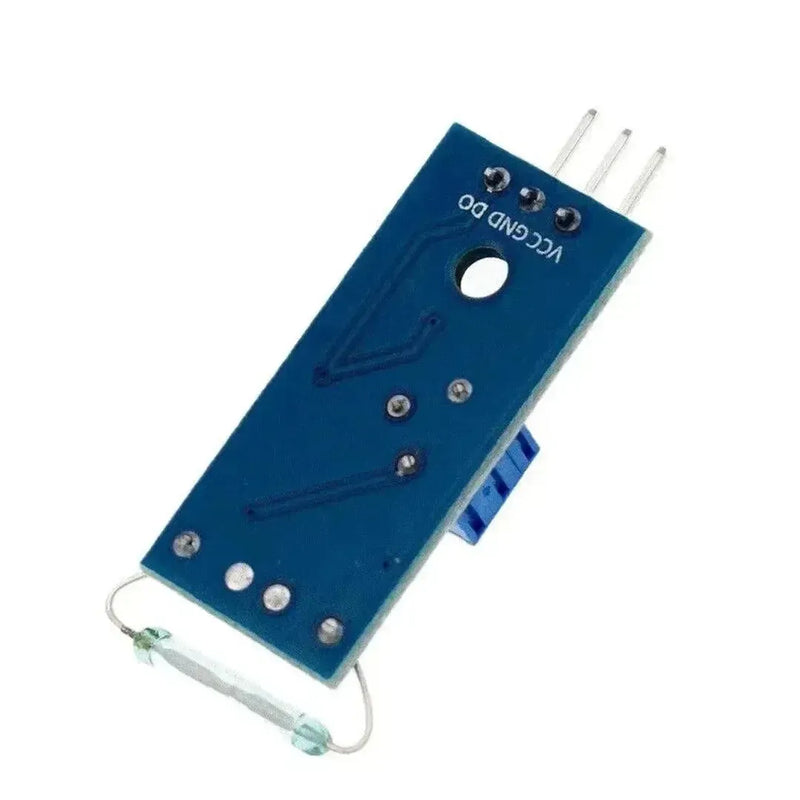

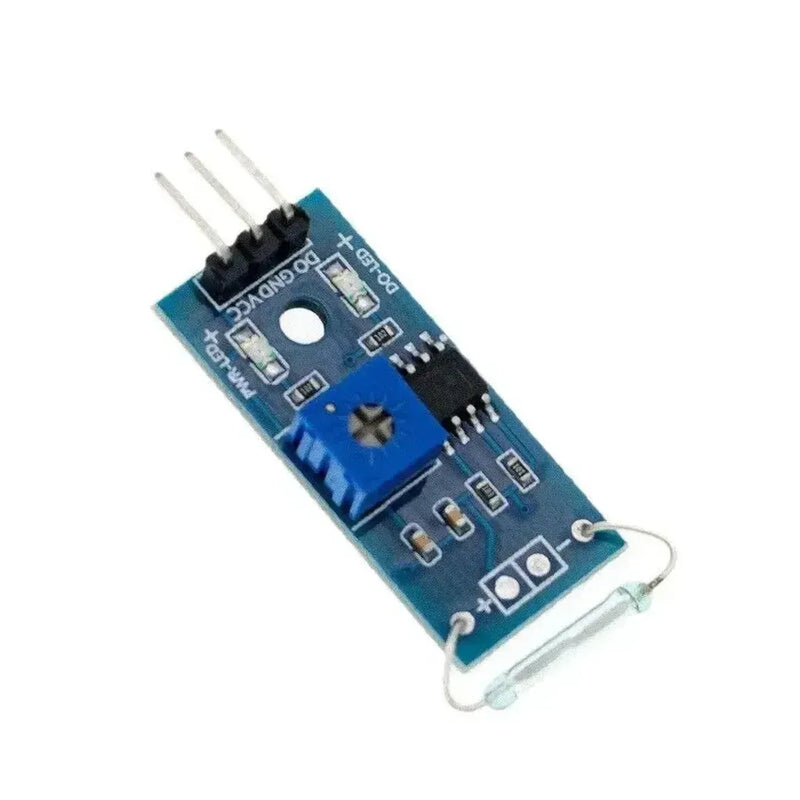

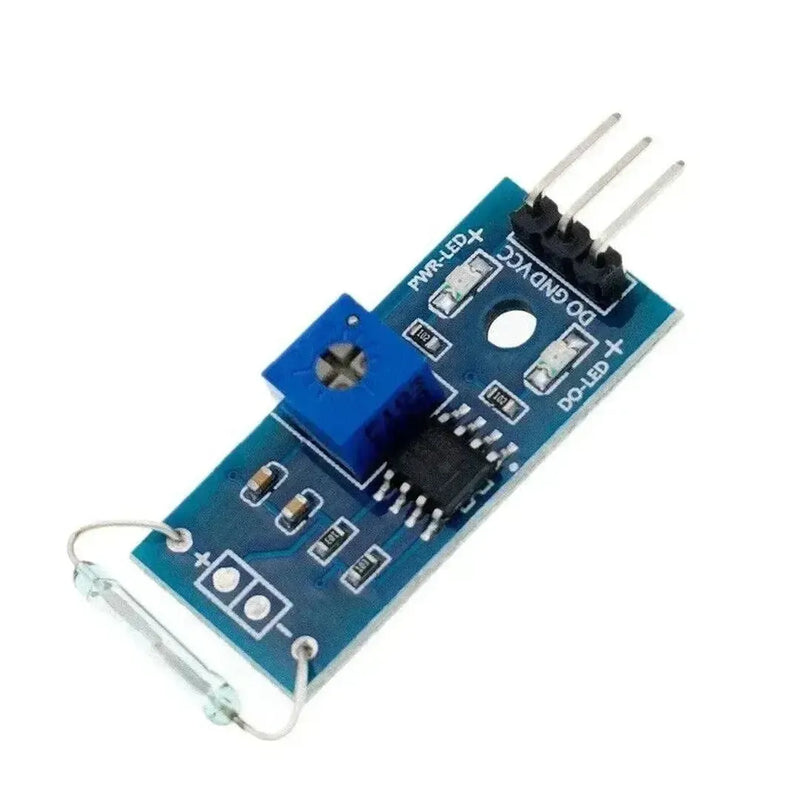

Reed Sensor Module - Precision Magnetic Detection with Digital Output

Enhance your electronic projects with our Reed Sensor Module, a high-performance magnetic sensor designed to provide reliable digital output for a variety of applications. Whether you're developing security systems, interactive installations, or proximity detectors, this module offers the accuracy and versatility you need to bring your ideas to life.

Key Features

• Magnetic Sensing Technology: Our Reed Sensor Module utilizes a normally open magnetic sensor that closes the circuit in the presence of a magnetic field, ensuring precise detection every time.
• Digital Output: Experience clear and consistent digital signals. Under normal conditions, the circuit remains open, outputting a digital '0'. When a magnetic field is detected within the module's range, the circuit closes, triggering a digital '1' output.
• Automatic Reset Function: The module is designed to automatically reset once the magnetic field is no longer present. This means the circuit reopens without any manual intervention, readying the sensor for the next detection event.
• Adjustable Sensitivity: Customize the sensor's responsiveness with the on-board potentiometer. Fine-tune the sensitivity to match the specific requirements of your project, ensuring optimal performance in any environment.
• Compact and Durable Design: Measuring just 32mm x 14mm, the Reed Sensor Module is both space-efficient and robust, making it easy to integrate into various project setups without sacrificing reliability.

Technical Specifications

Why Choose Our Reed Sensor Module?

The Reed Sensor Module stands out in the market for its reliability and ease of integration. Designed with both hobbyists and professionals in mind, this module offers a seamless experience from setup to execution. Its digital output simplifies interfacing with microcontrollers and other digital systems, making it an ideal choice for automated systems and real-time monitoring solutions.

Reliable Magnetic Detection

Built with precision, the magnetic sensor ensures accurate detection of magnetic fields. The normally open configuration prevents false positives, providing dependable performance in various applications.

Seamless Integration

With a voltage range accommodating both 3.3V and 5V systems, the module is versatile and compatible with a wide range of microcontrollers and development boards. Its compact PCB size allows for easy placement within tight spaces, making it suitable for intricate project designs.

Customizable Performance

The adjustable sensitivity feature empowers you to tailor the sensor's responsiveness. Whether you need high sensitivity for detecting weak magnetic fields or lower sensitivity to avoid interference, the on-board potentiometer gives you full control over the sensor's behavior.

Applications

Our Reed Sensor Module is perfect for a multitude of projects, including:

• Security Systems: Implement door/window sensors to enhance the security of homes and offices.
• Proximity Detection: Create responsive interfaces that react to the presence of magnets.
• Industrial Automation: Monitor machinery and equipment for magnetic field changes.
• Interactive Installations: Develop engaging exhibits that respond to magnetic inputs.
• Automotive Applications: Detect position or movement of parts within vehicles.

Customer Satisfaction Guaranteed

We are committed to providing high-quality components that meet your project needs. Our Reed Sensor Module is tested for reliability and performance, ensuring that you receive a product that you can trust. If you have any questions or need support, our dedicated customer service team is here to help.

Order Your Reed Sensor Module Today!

Don't miss out on the opportunity to elevate your projects with our Reed Sensor Module. Experience the precision, reliability, and versatility that sets our module apart from the competition. Order now and take the first step towards innovative and efficient magnetic detection in your next creation.
