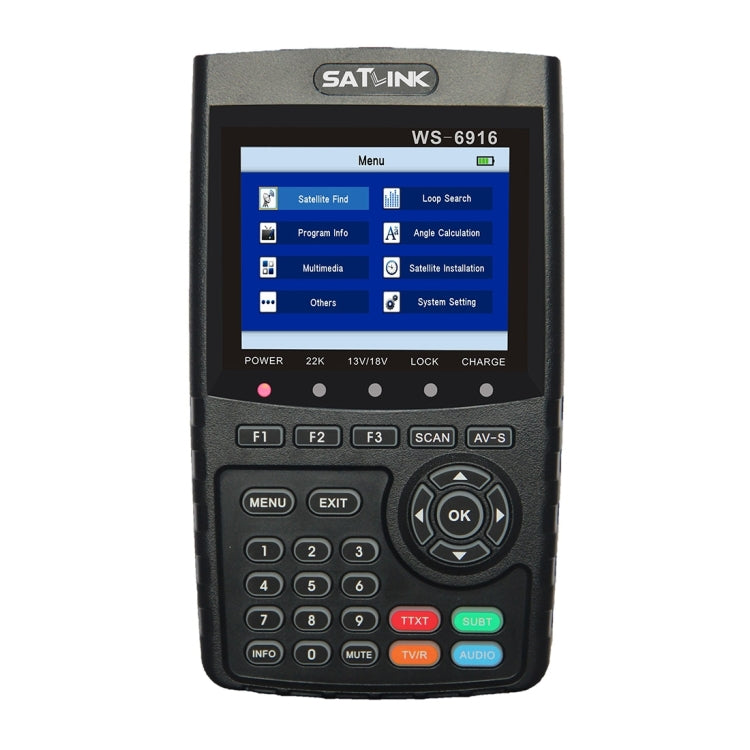

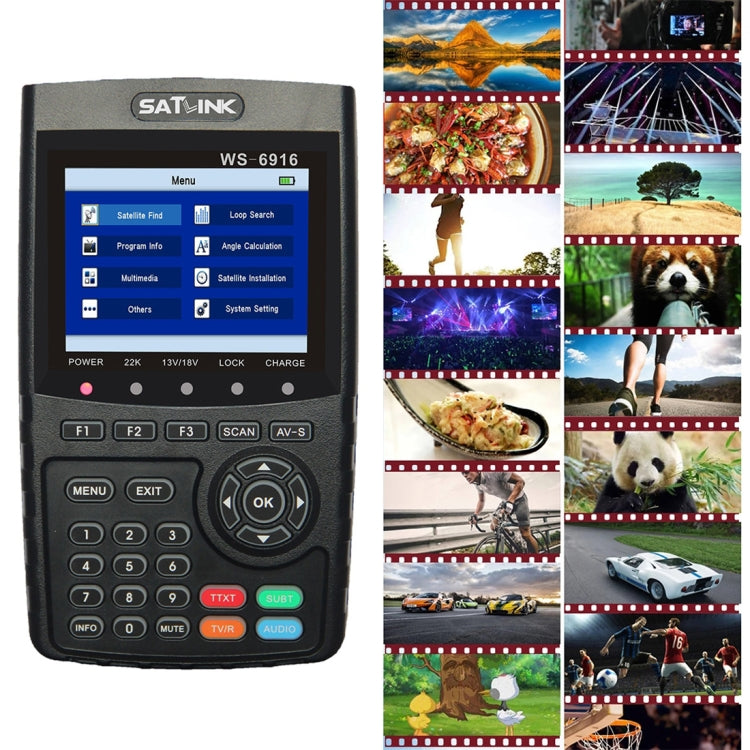

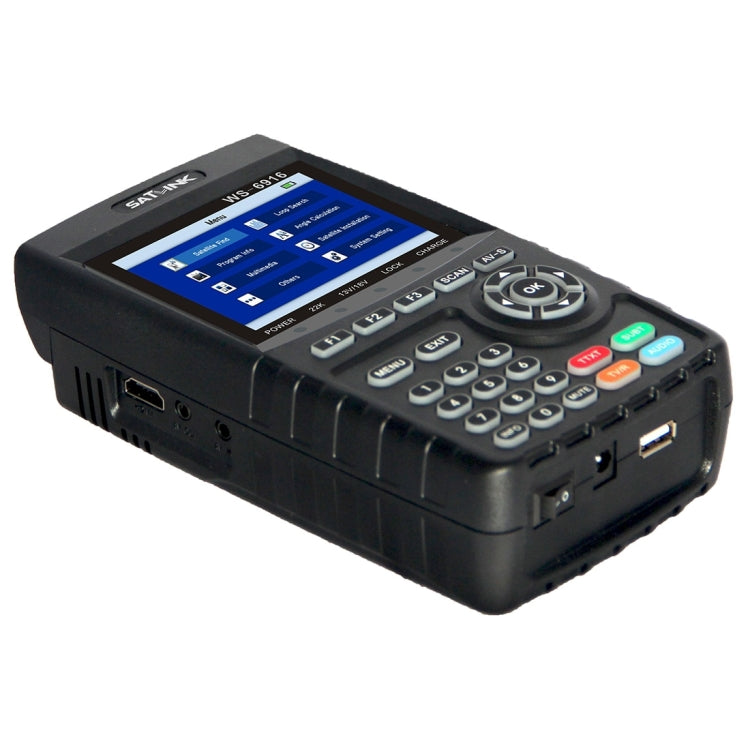

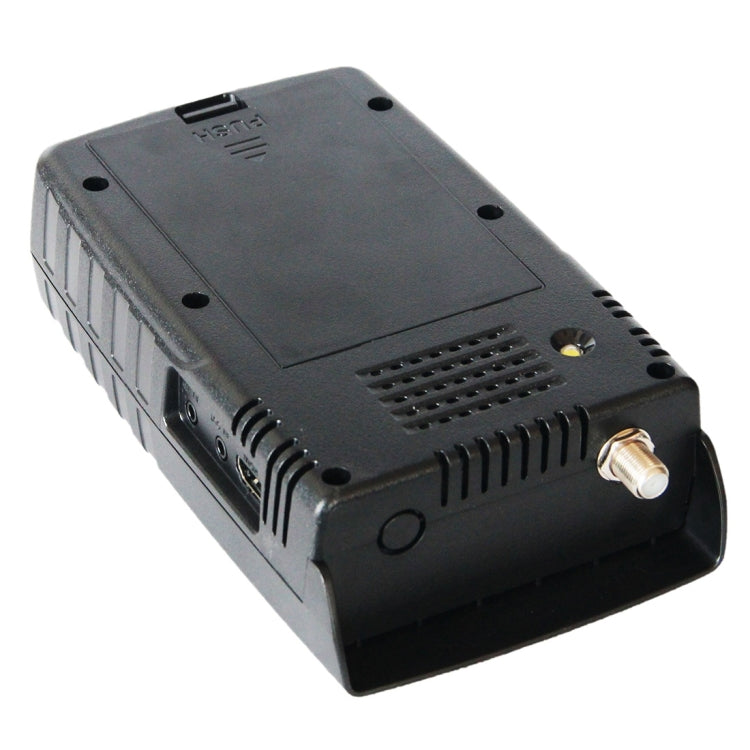

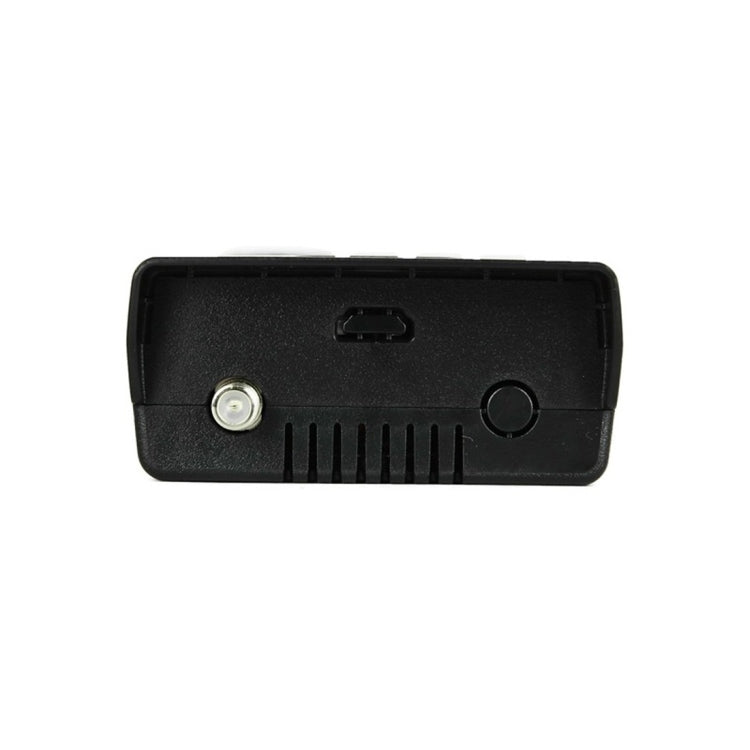

SATLINK WS6916 Digital Satellite Signal Finder Meter, 3.5 inch TFT LCD Screen, Support DVB-S / S2, MPEG-2 / MPEG-4, WS6916
1. 3.5 inch high definition TFT transmissive LCD screen, 480(RGB) x 272 pixel, 70.02x52.58mm active area.
2. Fully DVB S/DVB S2, MPEG2/MPEG4 compliant, MPEG2 / H.264 hardware decoding.
3. Digital meter for signal strength and quality.
4. Support scan of auto, blind, manual or NIT.
5. Sound and light alarm for locking signal.
6. Auto calculate angle of AZ, EL.
7. Support DISEQC 1.0/1.1/1.2, 0/22KHz tone.
8. Speaker integrated.
9. Support both AV out and AV in.
10. LNB supply: 13V/18V, Max 400mA, LNB short protect.
11. 7.4V/3000mAh li-ion battery included.

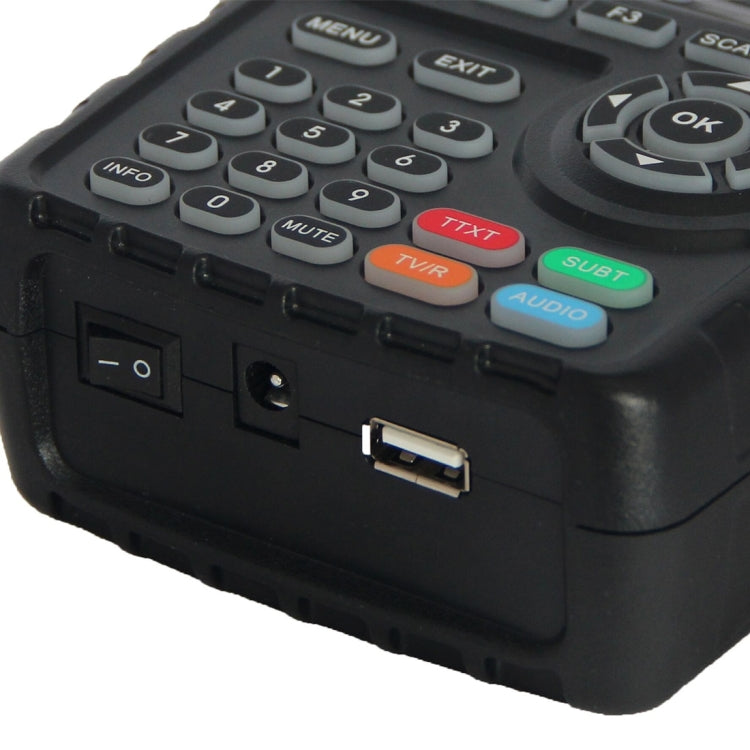

12. Software upgrade via USB port.
13. Easy to carry.
14. Demodulation Type: QPSK, 8PSK.
15. Symbol rate: 2 less than Rs less than 45M band (SCPC/MCPC).
16. Input frequency 950~2150MHz, signal input level -65~ -25dBm, band switch control: 22KHz.
17. AV output / input interface: 3.5mm jack, CVBS video output / input, stereo audio L/R output / input.
Video Decompression
1. Resolving rate: PAL 25 frame at 720 x 576, NTSC 30 frame at 720 x 480.
2. Signal compatibility: Support conversion for different video formats.
3. Video format: 4:3, 16:9, by pan & scan and letter box conversion.
4. Audio decompression: MPEG1 Layer I/II, MPEG2 Layer I/II.
5. Audio output mode: Stereo, Mono, R/L.
