SEAFLO 12V 1100GPH Marine Bilge Pump Non-Automatic SFBP1-G1100-01
SEAFLO SFBP1-G1100-01 Bilge Pump
12V 1100 GPH | Non-Automatic Marine Submersible
The SEAFLO 01-Series SFBP1-G1100-01 is a premium, non-automatic submersible bilge pump designed for demanding marine environments. With a powerful 1100 GPH flow rate and a robust motor, it offers reliable water evacuation for small to medium-sized vessels. Its compact design and industry-standard mounting base make it a preferred choice for both new installations and direct replacements.
Key Features
- ✔ Anti-Airlock Protection: Prevents pump burnout.
- ✔ Snap-Lock Strainer: Easy cleaning and maintenance.
- ✔ Submersible: Fully sealed, moisture-tight seals.
- ✔ Ignition Protected: Safe for marine installations.
- ✔ Quiet Operation: Vibrationless performance.

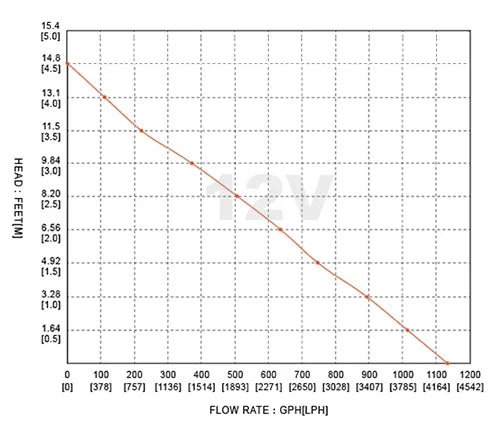

Technical Specs
| Voltage: | 12V DC |
| Flow Rate: | 1100 GPH (4164 LPH) |
| Current Draw: | 3.0 Amps |
| Max Lift (Head): | 4.5m (14.8ft) |
| Outlet Dia: | 29mm (1-1/8") |
| Fuse Size: | 5.0A / 6.0A |
| Wire Lead: | 1m (18 AWG) |
Compatibility / Fitment Guide
| Make/System | Application | Notes |
|---|---|---|
| Marine Vessels | Main Bilge Suction | Ideal for hulls up to 24ft |
| Industry Standard | Mounting Base | Fits Rule mounting hole patterns |
| Manual Systems | Panel/Float Switch | Requires external activation |
OEM Cross Reference
| Brand | Model/Part Number |
|---|---|
| SEAFLO | SFBP1-G1100-01 |
| RULE | 27D (1100 GPH) |
| ATTWOOD | Tsunami T1200 / 4611 |
| JOHNSON | L1250 / L1600 Series |
Questions & Answers
Is this a genuine original part?
This is a genuine SEAFLO 01-Series pump, designed as a premium high-performance alternative to more expensive brands, often exceeding their technical specifications.
How do I know if it is compatible?
Check your existing pump's GPH rating and voltage. If you are replacing a Rule 1100 (27D), the mounting strainer will typically match perfectly without drilling new holes.
Does this pump turn on automatically when water rises?
No, the SFBP1-G1100-01 is a non-automatic model. It requires a manual dash switch or an external float switch (sold separately) to activate.
Note: 4boats.co.uk recommends verifying your vessel's electrical system and hose diameter (1-1/8") before installation.
