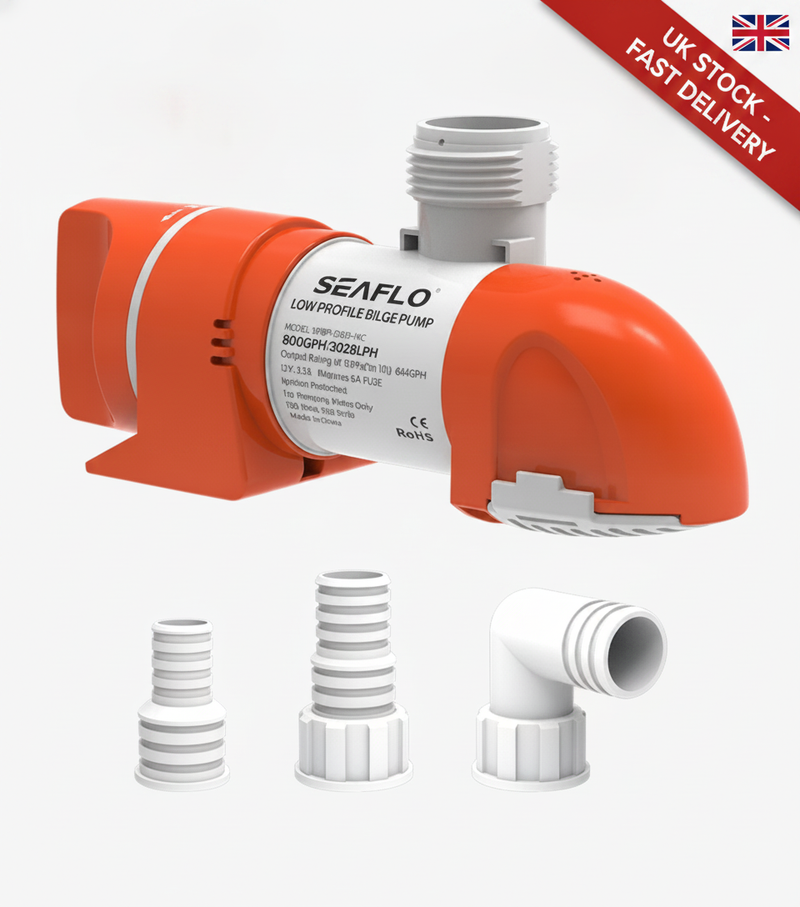

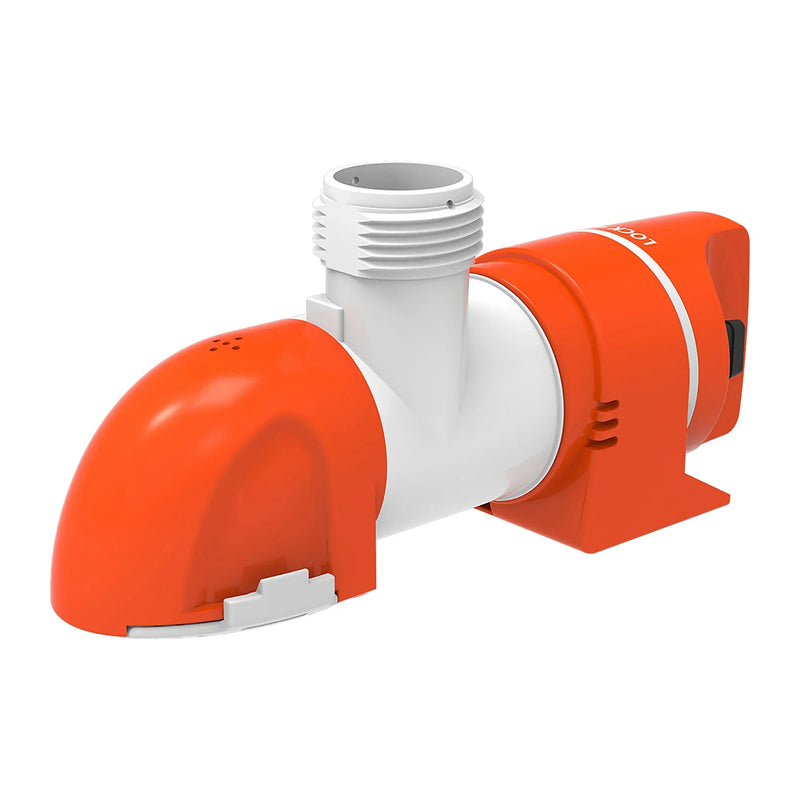

SEAFLO 24V 1100GPH 14C Low Profile Non-Automatic Bilge Pump
SEAFLO 24V 1100GPH 14C Low Profile Non-Automatic Bilge Pump

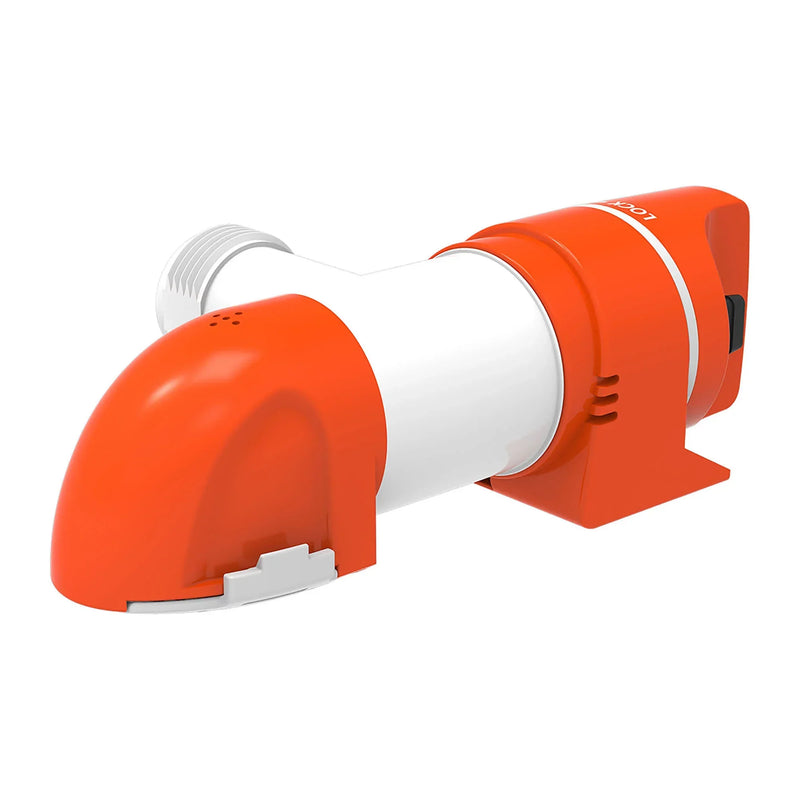

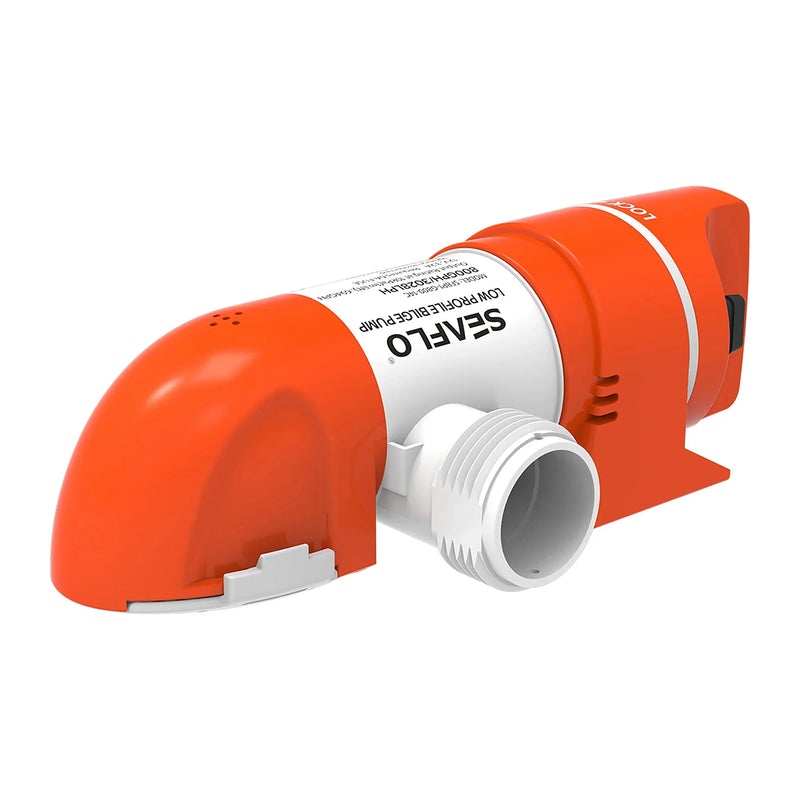

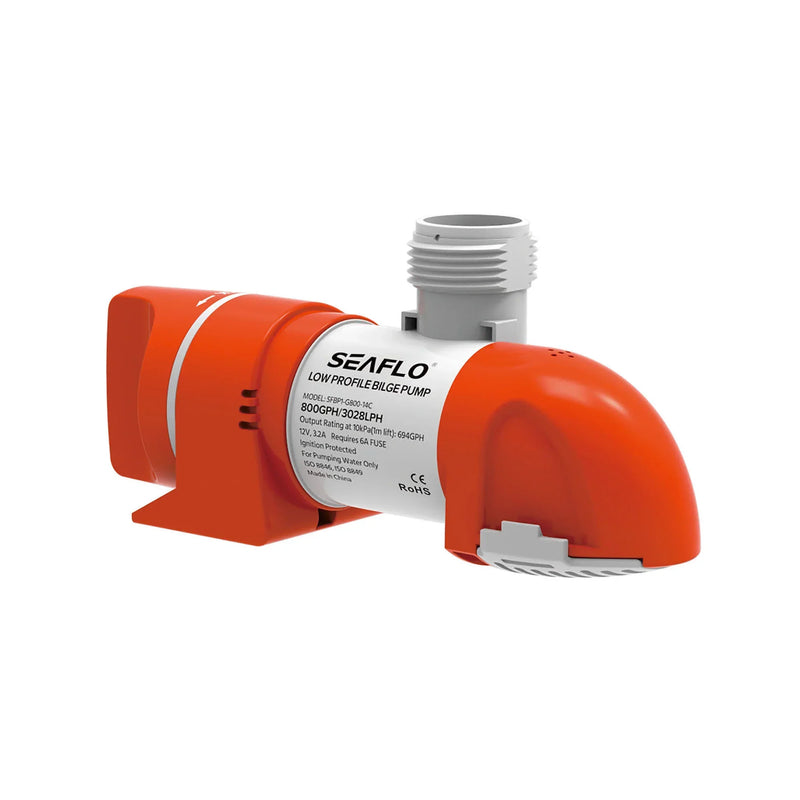

Low-profile drainage for restricted bilge spaces
This SEAFLO 14C Series pump is a 24V DC, 1100 GPH non-automatic submersible bilge pump built for narrow or awkward compartments where a conventional upright pump may not fit. The body can be installed horizontally or vertically and the discharge can rotate through 360 degrees.
It is suited to bilge drainage on 24V yachts, motorboats, RIBs, fishing boats and workboats, subject to correct capacity, hose run and electrical sizing. It must be controlled by a separate manual switch, float switch or suitable bilge panel.
Key Features
- ✔ Low, narrow profile reaches into confined bilge areas and can leave water down to approximately 10 mm.
- ✔ 1100 GPH open-flow rating with a maximum head of 4.0 m.

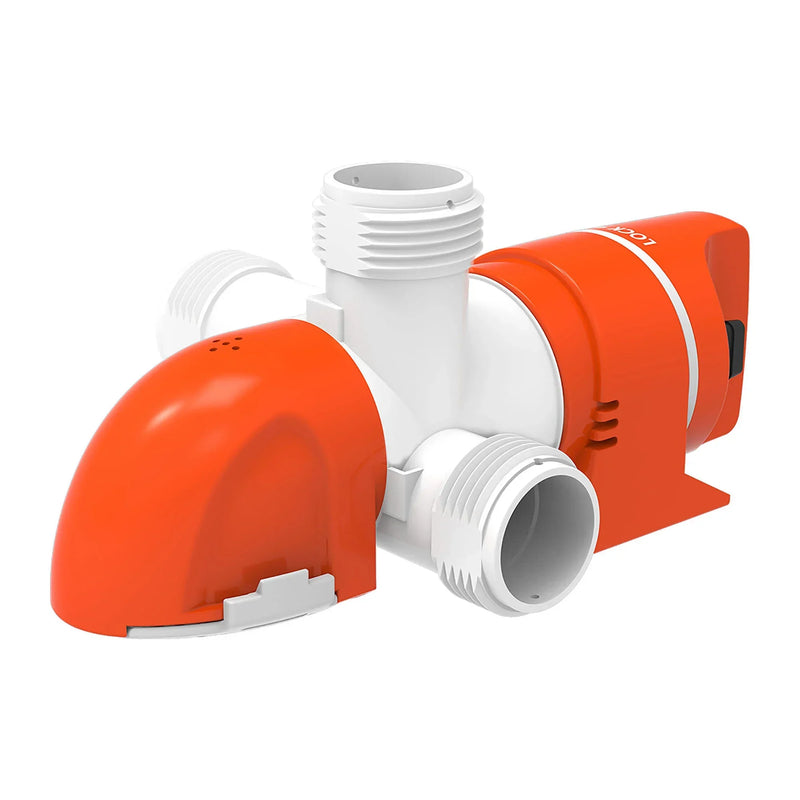

- ✔ 360-degree rotating body and discharge improve hose alignment.

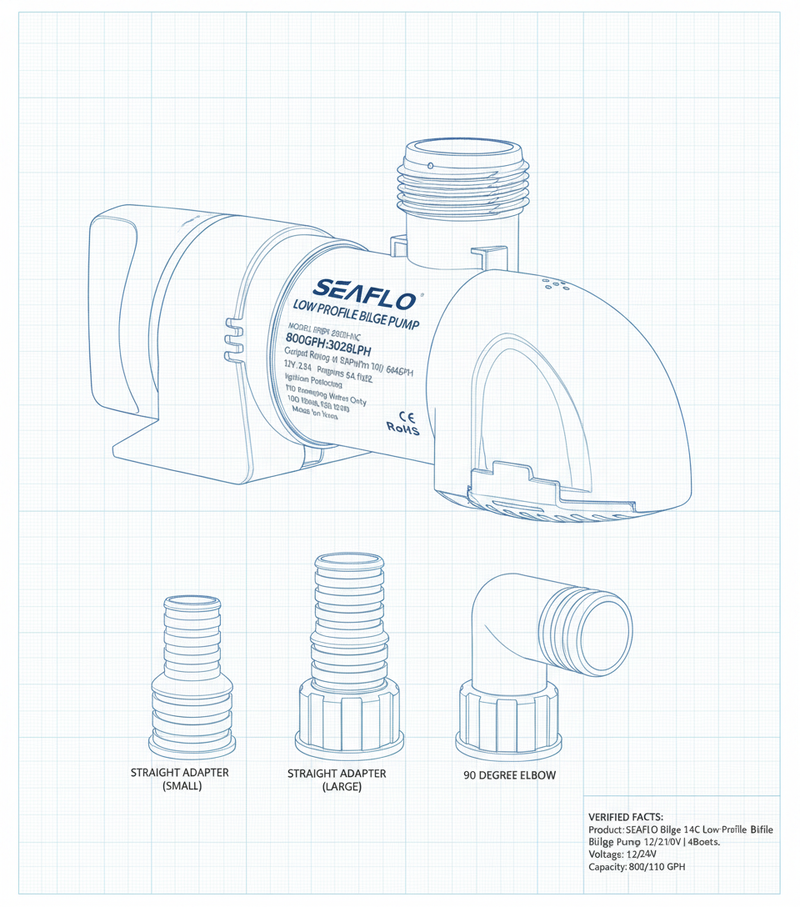

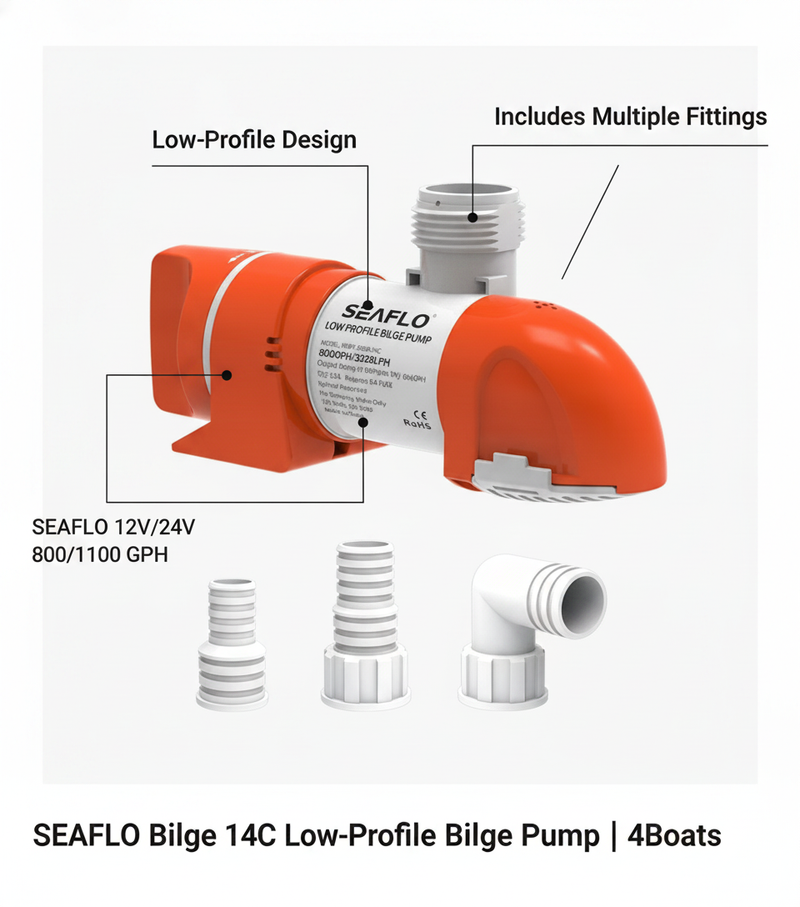

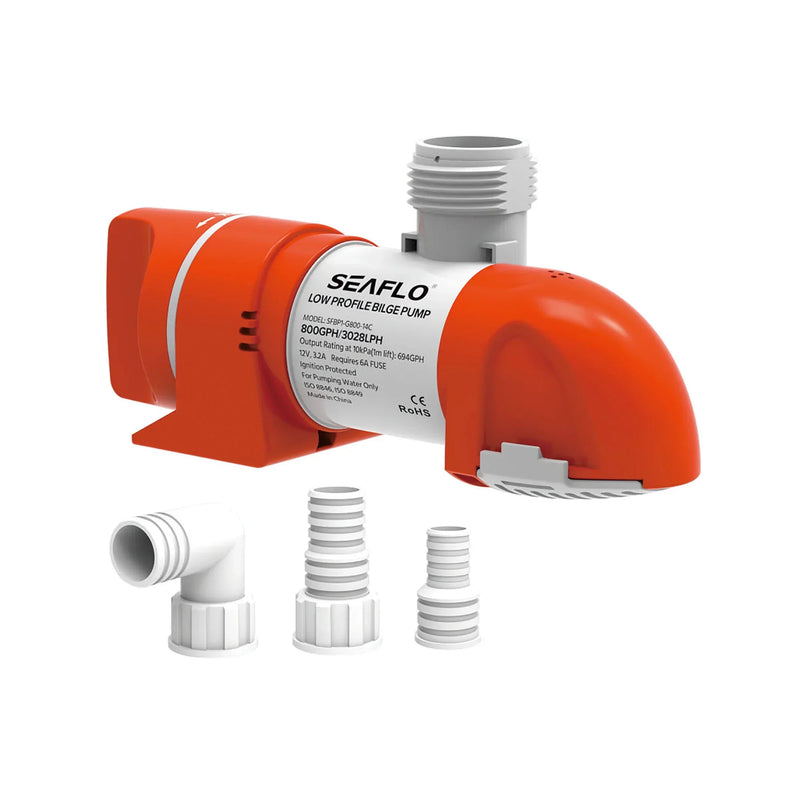

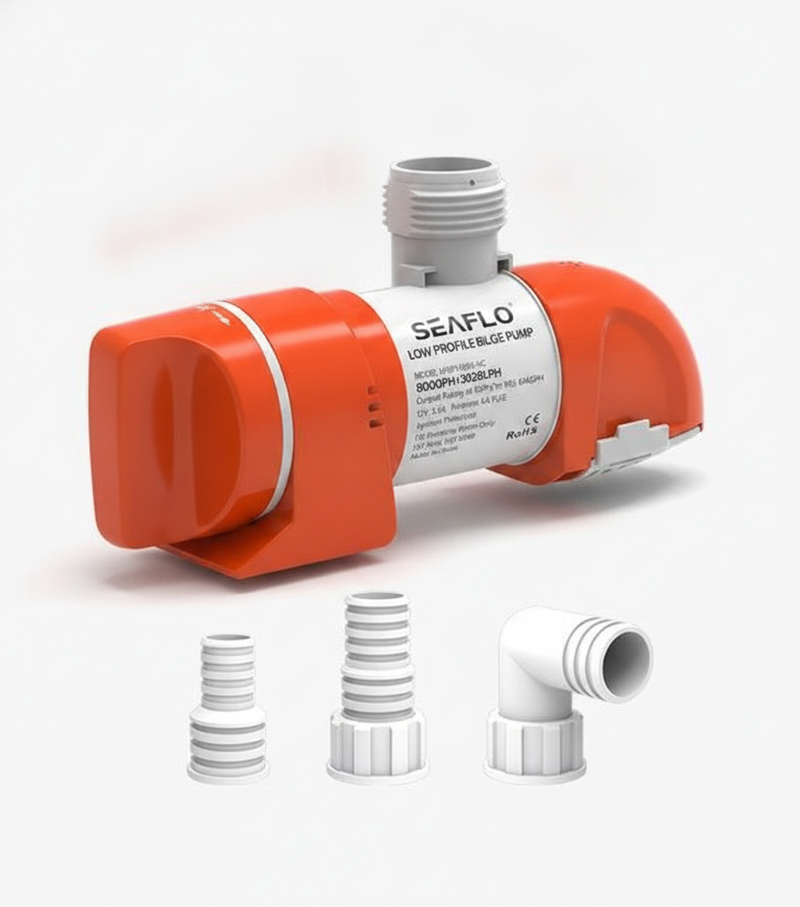

- ✔ Straight hose barbs for 19, 25 and 29 mm hose plus a 19 mm 90-degree elbow configuration.
- ✔ Integrated check valve helps reduce discharge-line backflow.
- ✔ Snap-fit construction for cleaning and cartridge-style motor servicing.
- ✔ Submersible, ignition-protected design with stainless-steel motor shaft, moisture-tight seals and anti-airlock protection.
- ✔ Designed to meet CE, RoHS, ISO 8846 and ISO 8849 requirements.
Technical Specifications
| Manufacturer model | SFBP2-G1100-14C |
| Operating mode | Non-automatic; external control required |
| Supply voltage | 24V DC |
| Open-flow capacity | 1100 GPH (approximately 4160 L/h) |
| Rated current | 3.0 A |
| Maximum head | 4.0 m (13 ft) |
| Outlet options | 19 mm, 25 mm and 29 mm straight barbs; 19 mm 90° elbow |
| Mounting | Horizontal or vertical; 360° discharge orientation |
| Drain-down level | As low as approximately 10 mm |
| Approximate pump size | 200 × 135 × 65 mm |
| Approximate unit weight | 0.35 kg |
Boat compatibility and installation checks
- Confirm the vessel has a 24V DC supply; do not connect this model directly to 12V.
- 1100 GPH is an open-flow figure. Actual output falls with hose height, length, restrictions, bends and fittings; size the system for the vessel and compartment risk.
- Use smooth-bore reinforced hose matching the selected outlet, minimise lift and bends, and route the discharge above the waterline with anti-siphon protection where required.
- Fit an appropriate fuse, marine-grade cable and a manual or automatic control switch rated for the pump circuit.
- Keep the strainer accessible for debris cleaning and test the complete system regularly. This pump is for bilge water, not fuel, oil, sewage or drinking water.
- Package: one 14C Series pump with discharge/check-valve fittings as supplied; external switch, hose, fuse and wiring are installation items.
Questions & Answers
Does this pump switch on automatically?
No. It is the 14C non-automatic version and requires an external manual switch, float switch or control panel.
Is 1100 GPH guaranteed at the outlet?
No. It is the open-flow rating; real installed flow is lower and depends mainly on vertical lift and hose resistance.
Can it be mounted horizontally?
Yes. The low-profile body supports horizontal or vertical installation, provided the strainer and discharge are positioned correctly.
Will it work on a 12V boat?
No. This is the 24V version. Use the correct 12V model for a 12V electrical system.
Note: Please verify voltage, capacity and fitting sizes against your boat before ordering. For technical support, contact us via 4boats.co.uk.
