Seaflo BS2006 Electric Field Bilge Switch 12V 24V 20A Max Automatic Pump Sensor

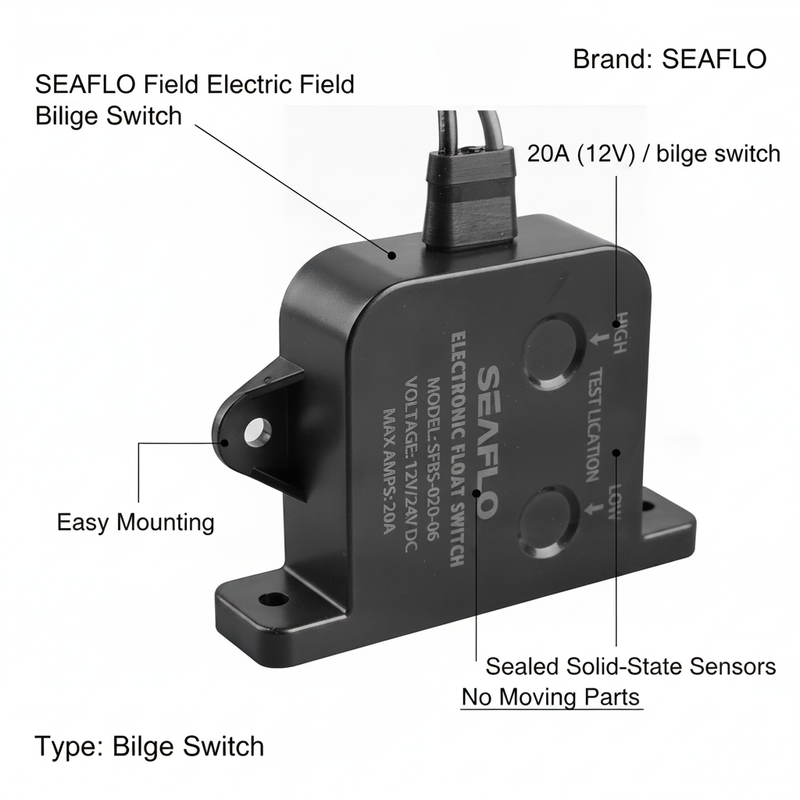

Seaflo BS2006 Electric Field Bilge Switch
Premium Solid-State Automatic Water Level Sensor

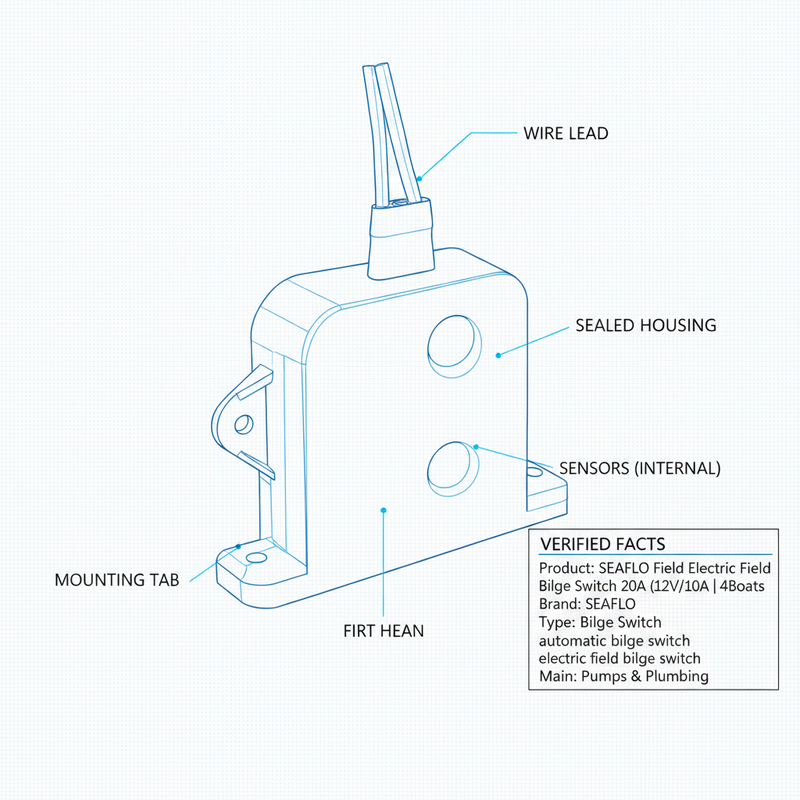

The Seaflo BS2006 (SFBS-20-06) Electric Field Bilge Switch represents the next generation of marine automation. By utilizing advanced electric field technology, this switch detects water levels without the need for traditional mechanical floats or moving parts. This eliminates common failure points such as jamming due to debris or corrosion of internal components.
Key Features
- ✔ No Moving Parts: Solid-state design prevents mechanical failure.
- ✔ Built-in Delay: 3-second delay prevents pump cycling from sloshing water.
- ✔ Enclosed Electronics: Sealed detectors eliminate corrosion risks.
- ✔ Universal Mounting: Install on hulls or bulkheads with ease.

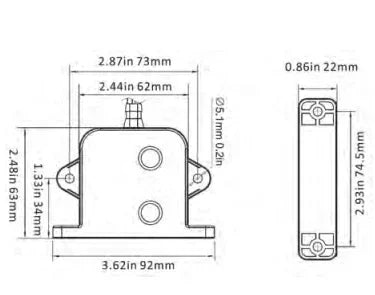

Technical Specs
| Voltage: | 12V / 24V DC |
| Max Amps: | 20A @ 12V / 10A @ 24V |
| Activates at: | 41mm (1.6") |
| Deactivates at: | 9.5mm (0.37") |
| Wire Gauge: | 16 AWG (1000mm length) |
| Material: | Polypropylene (PP) |
Compatibility / Fitment Guide
| Application | System Type | Notes |
|---|---|---|
| Pleasure Marine | 12V/24V Bilge Systems | Ideal for yachts and recreational boats. |
| Electric Bilge Pumps | Up to 20 Amps Max | Compatible with all major brands (Seaflo, Rule, etc.). |

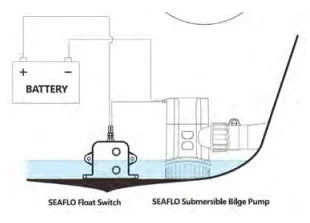

| Bulkhead/Hull Mount | Standard Installation | Mount as close to pump as possible for accuracy. |
OEM Cross Reference
| Seaflo Part Number | BS2006 / SFBS-20-06 |
| Electronic Switch Type | Field Effect / Solid State |
| Comparable to | Rule SuperSwitch / Johnson Ultima (Performance Match) |
.jpg)
Questions & Answers
Is this a genuine original part?
This is a genuine SEAFLO premium quality part, manufactured to the highest marine standards (CE, RoHS, ISO8846/ISO8849).
How do I know if it is compatible?
This switch is compatible with any 12V or 24V bilge pump that draws 20 Amps or less. It is a direct upgrade for mechanical float switches.
Does it work if the bilge is oily?
Yes, the electric field technology is specifically designed to sense water level and is resistant to interference from oil or common bilge debris that typically jams mechanical switches.
Note: Please verify your pump's amperage draw against the technical specifications above before purchasing to ensure optimal performance. Use only on 12V/24V DC systems.
