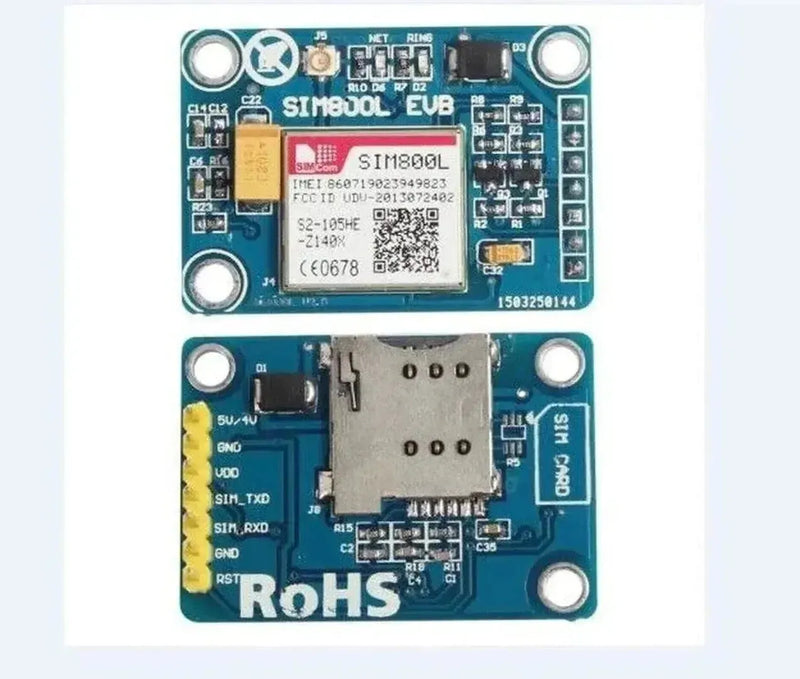

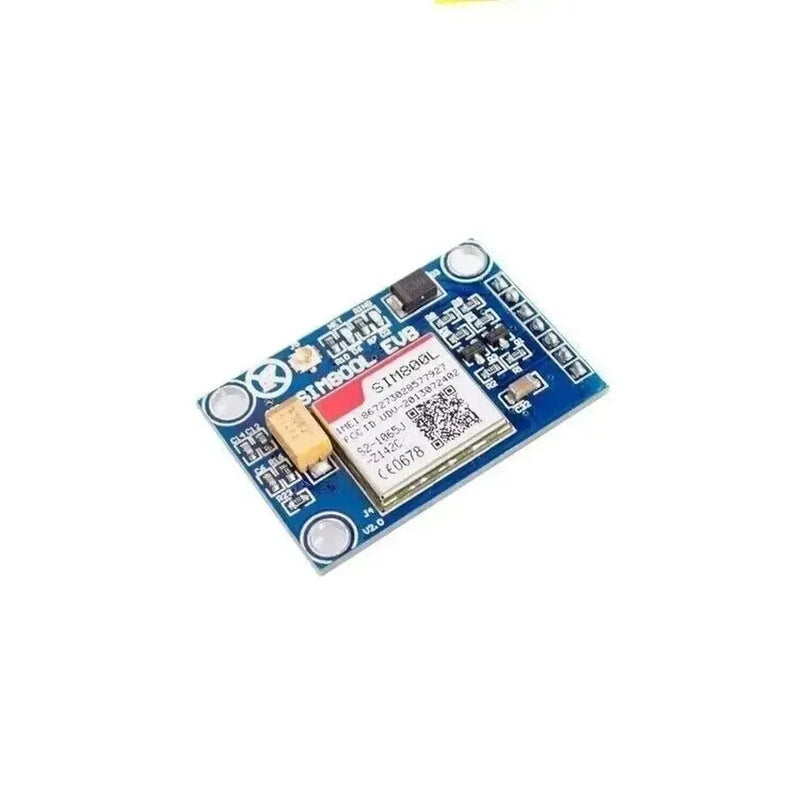

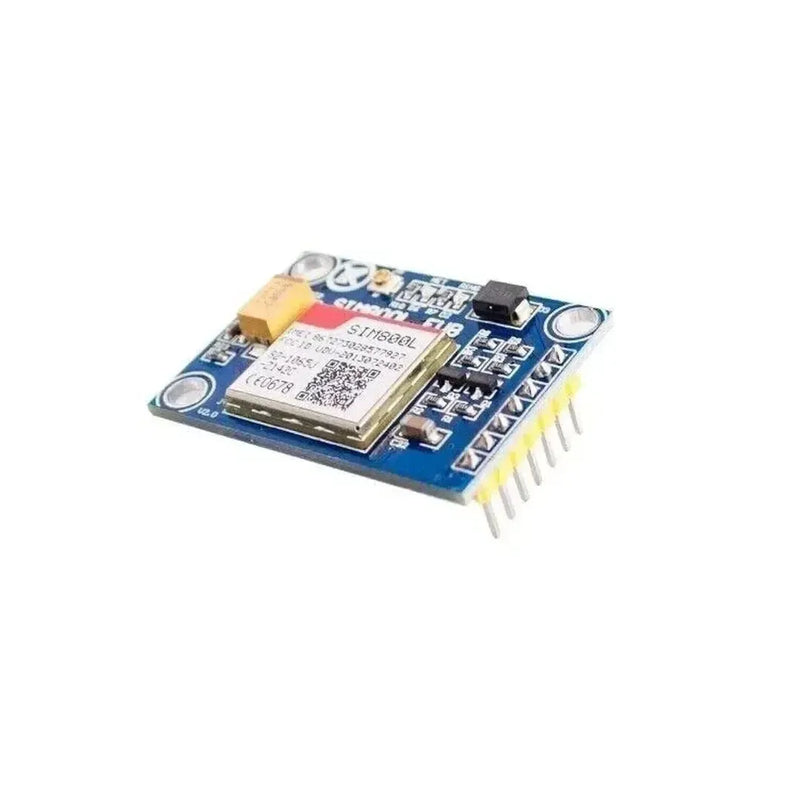

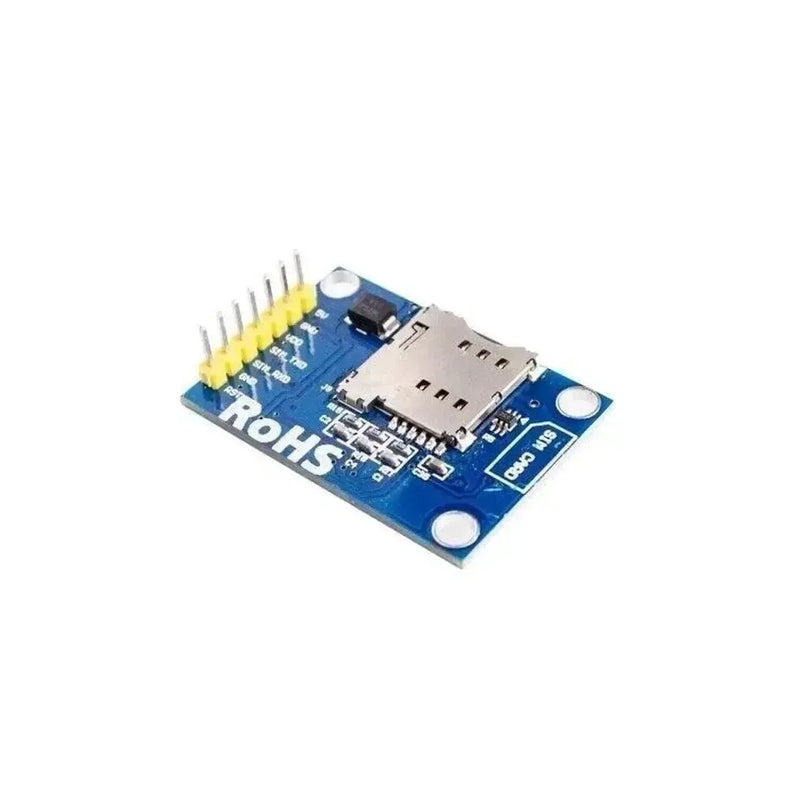

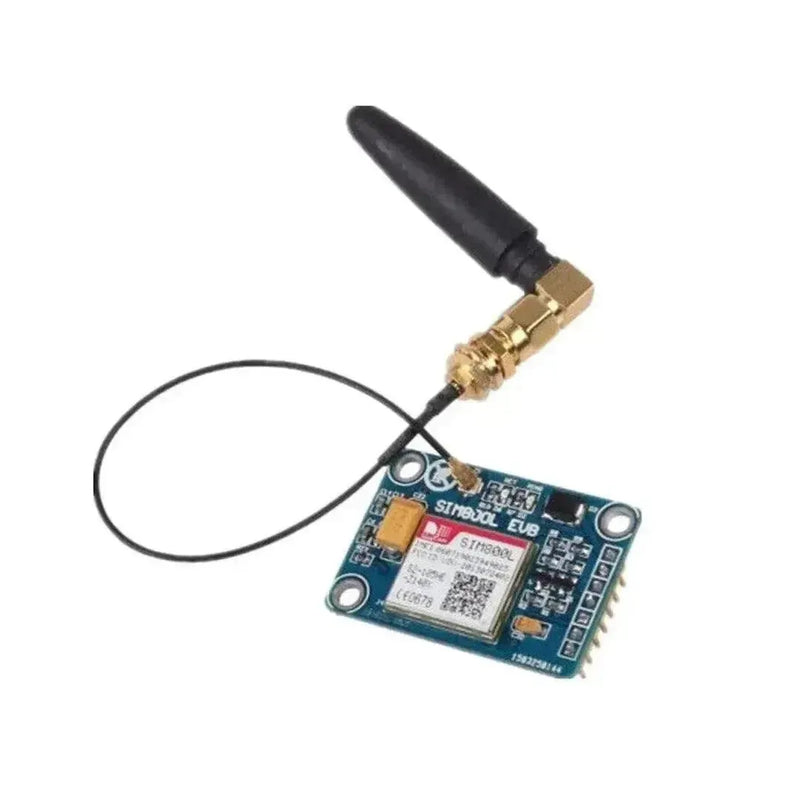

SIM800L GSM GPRS Module with Antenna
SIM800L GSM GPRS Module with Antenna
Product Overview
Add cellular connectivity to your projects with the SIM800L GSM/GPRS Module w/ Antenna. This ultra-compact quad-band module supports voice, SMS, data, Bluetooth, and FM all via standard AT commands making it the perfect communications hub for IoT devices, remote monitoring, and mobile applications.
Key Features & Benefits
-
Global Quad-Band Support
• 850/900/1800/1900 MHz for seamless operation anywhere in the world. -
High-Speed GPRS Data
• Class 12 GPRS up to 85.6 kbps uplink/downlink for efficient telemetry and remote control. -
Integrated Bluetooth & FM
• Bluetooth 3.0 + EDR and FM radio (76–109 MHz) expand your multimedia and wireless options. -
Compact & Lightweight
• Only 17.8 × 15.8 × 2.4 mm and 1.35 g ideal for space-constrained or battery-powered designs. -
Flexible Power Input
• Runs on 3.4–4.4 V with low standby and sleep currents for extended battery life. -
Robust AT Command Interface
• Supports 3GPP TS 27.007/27.005, SIMCOM enhancements, plus TCP/UDP, FTP/HTTP, MMS, e-mail, and more. -
Voice & SMS Ready
• Crystal-clear calls with HR/FR/EFR/AMR codecs, echo suppression, hands-free mode; MO/MT/SMS-CB in Text & PDU. -
Industrial-Grade Durability
• Operates from –40 °C to +85 °C and carries CE, FCC, GCF, RoHS, and REACH certifications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Frequency Bands | 850 / 900 / 1800 / 1900 MHz |
| Data Rates | GPRS Class 12 (85.6 kbps) |
| Bluetooth | Version 3.0 + EDR |
| FM Radio | 76–109 MHz |
| Operating Voltage | 3.4–4.4 V DC |
| Current Consumption | < 2 mA (sleep), ~ 50 mA (idle), ~ 350 mA (TX) |
| Interface | TTL UART (2.85 V / 3.3 V / 5 V compatible) |
| Audio Codecs | HR, FR, EFR, AMR |
| Dimensions | 17.8 × 15.8 × 2.4 mm |
| Weight | 1.35 g |
| Operating Temperature | –40 °C to +85 °C |
| Certifications | CE, FCC, GCF, RoHS, REACH |
Ideal Applications
- IoT & M2M Devices: Remote sensors, asset trackers, smart meters
- Security & Alarm Systems: SMS alerts, remote arm/disarm controls
- Telematics & Fleet Management: Vehicle diagnostics, GPS data uplink
- Home Automation: GSM-based control of lighting, HVAC, and gates
- Wearable & Portable Electronics: Low-power cellular connectivity
What’s in the Box
- 1 × SIM800L GSM/GPRS Module

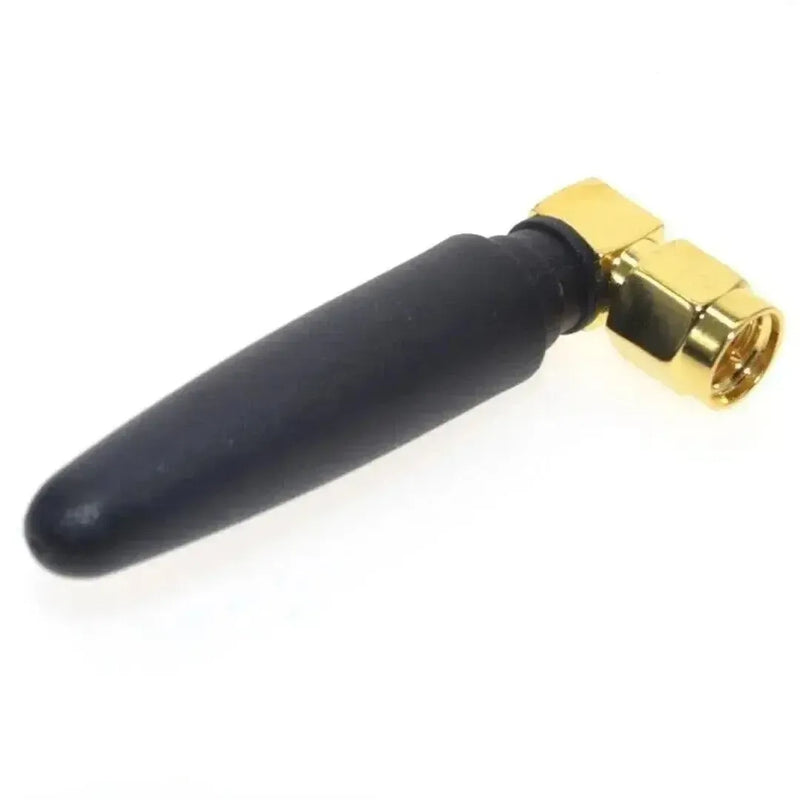

- 1 × Flexible 2 dBi External Antenna (U.FL connector)
- 1 × Female Header Strip
Why Choose the SIM800L Module?
- All-in-One Connectivity: Voice, SMS, data, Bluetooth, and FM in a single tiny package.
- Global Coverage: Quad-band design works worldwide without swapping modules.
- Power-Efficient: Sleep modes and low-current operation extend battery-powered deployments.
- Proven Compatibility: Controls via simple AT commands integrates with Arduino, Raspberry Pi, ESP32, STM32, and more.
Elevate your next project with reliable, high-performance cellular connectivity order the SIM800L GSM/GPRS Module today!
