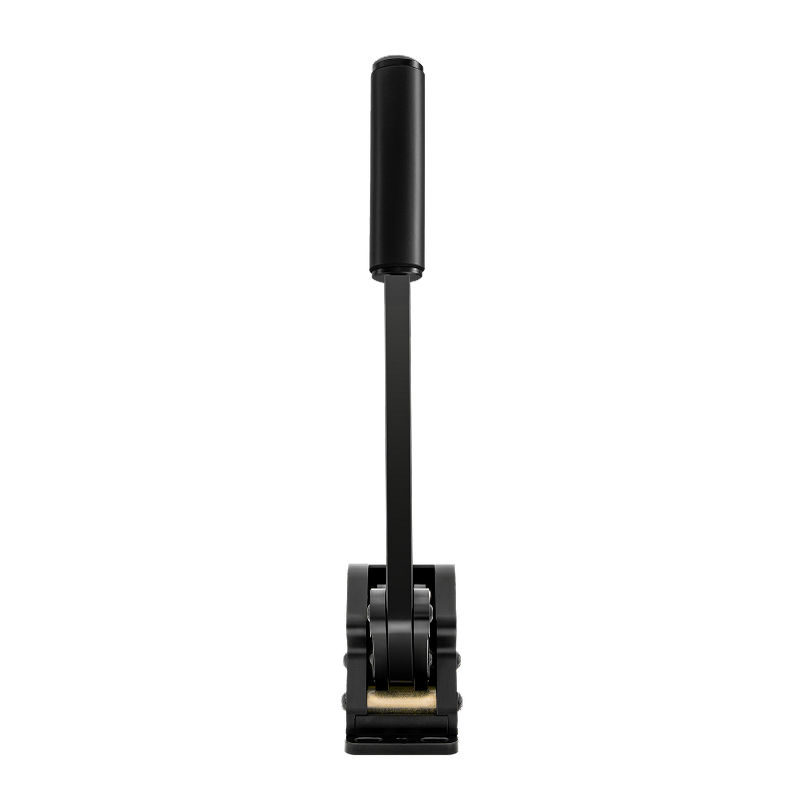

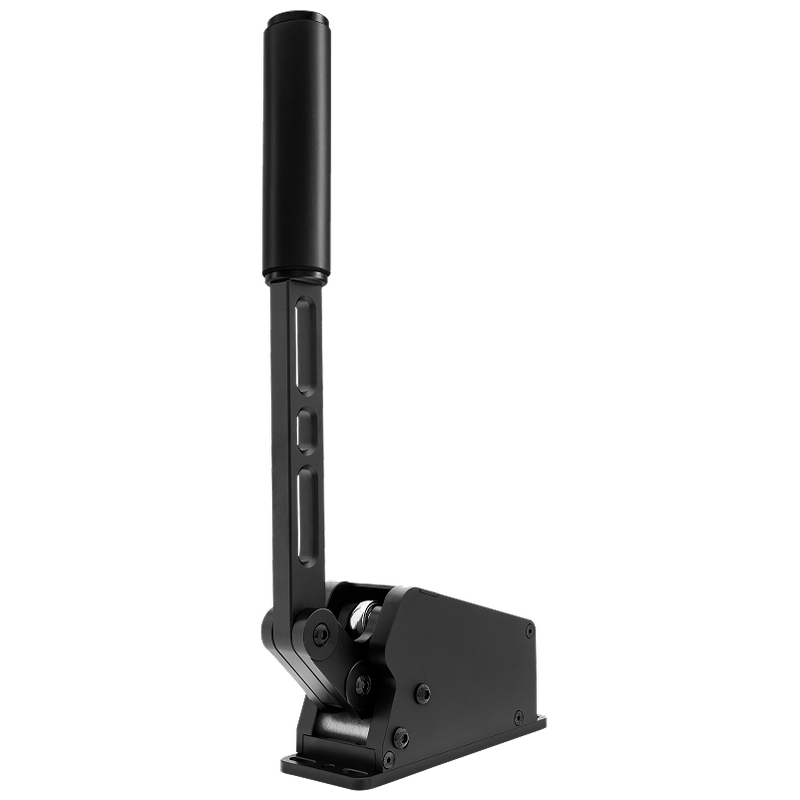

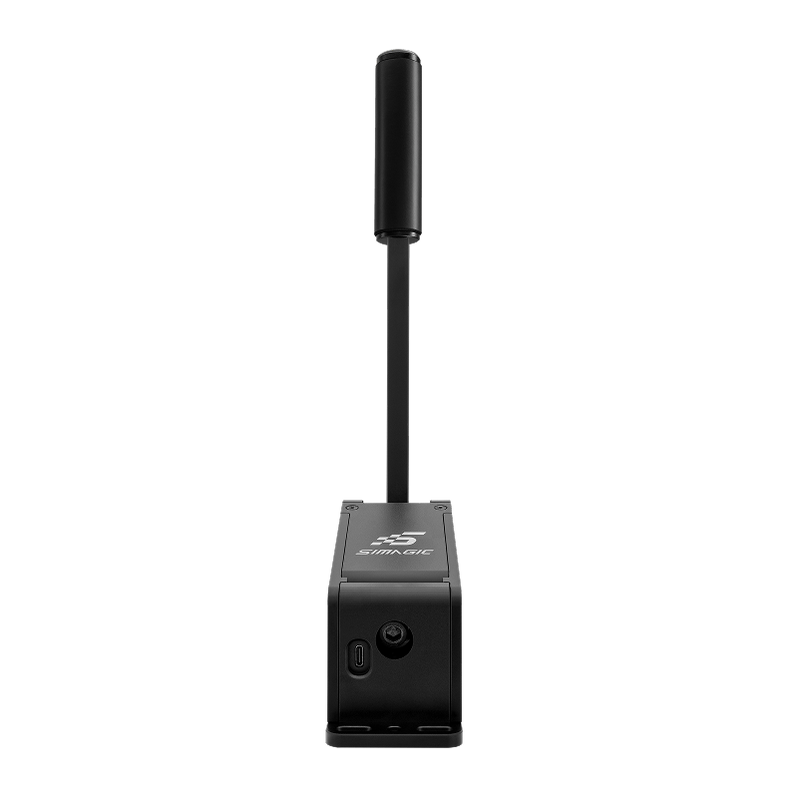

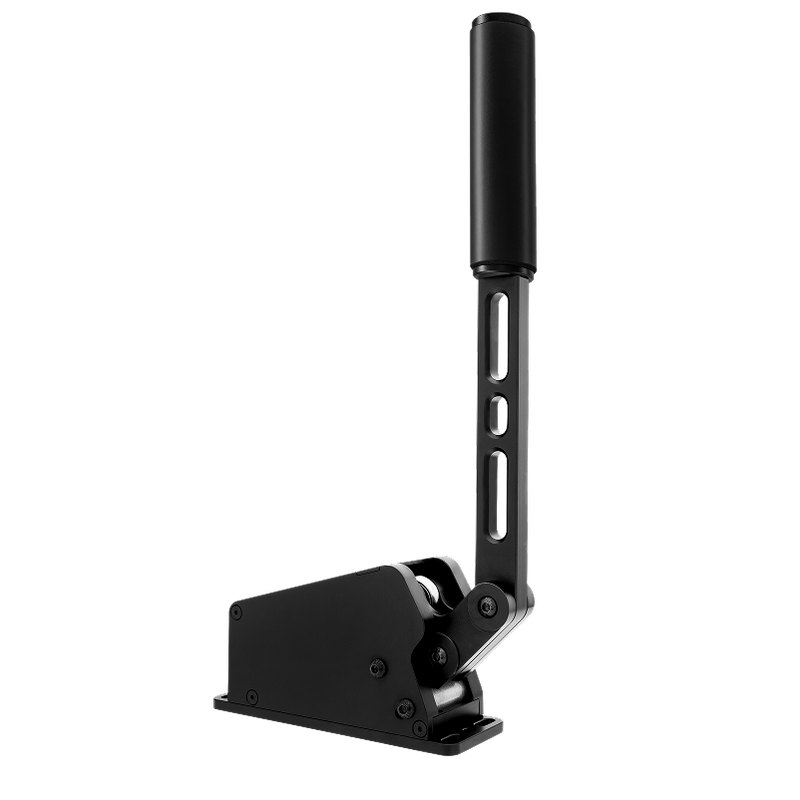

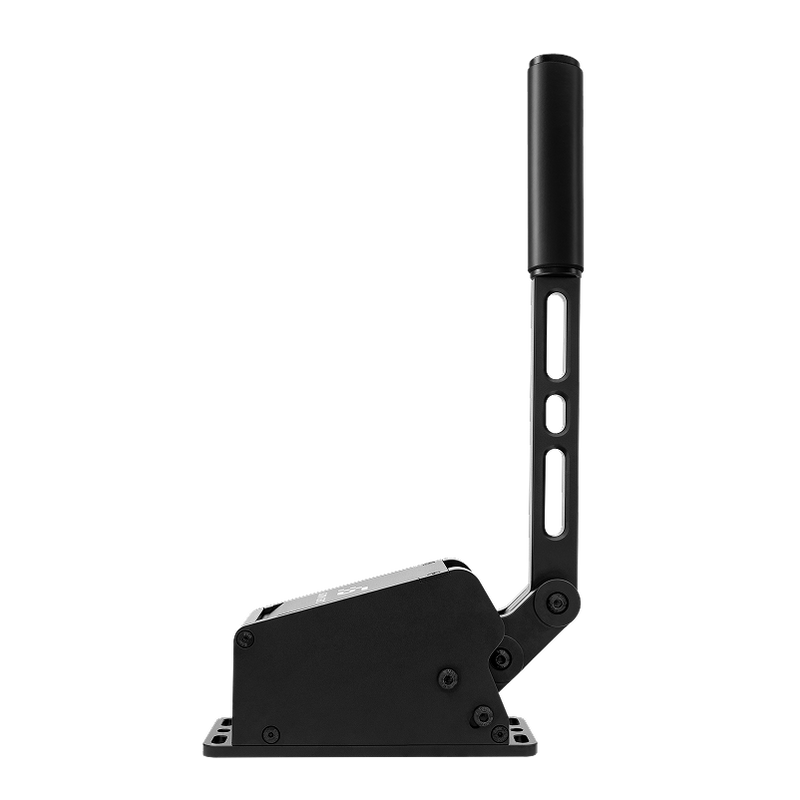

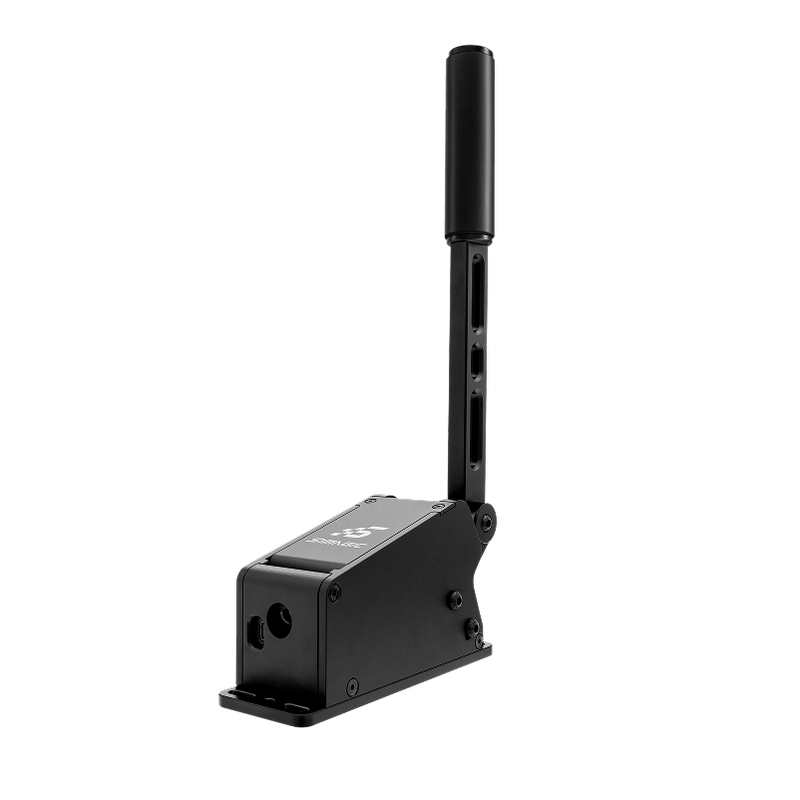

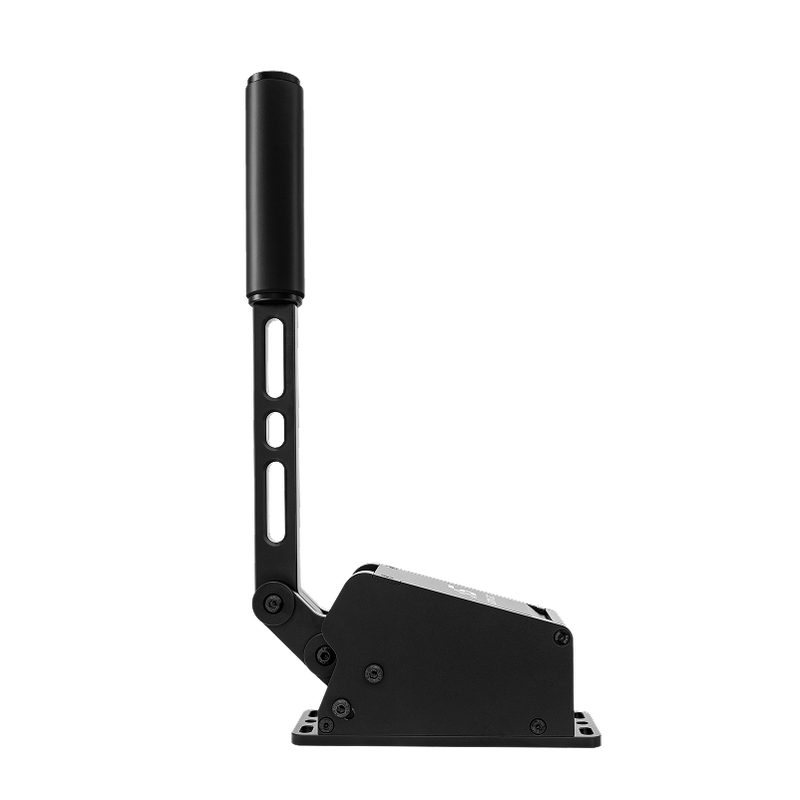

Simagic TB-1 Full-Metal Handbrake – 100 kg Load Cell, Dual-Mode Resistance
Product Description
The Simagic TB-1 Handbrake is built for sim racers who demand realism, durability, and advanced control in drift, rally, GT, or track setups. Its full-metal CNC-machined aluminium alloy body ensures rock-solid structure under high loads. With a 100 kg high-precision load cell sensor, this handbrake delivers authentic accurate force feedback and responsiveness.
Equipped with a 2-stage resistance system, the TB-1 simulates the feel of a real car handbrake’s increasing resistance, enhanced by adjustable damping and interchangeable rubber compounds to fine-tune resistance, elasticity, and fatigue resistance. The lever is dual-mode: you can quickly switch between horizontal (road car) and vertical (rally / drift) orientation to match your driving style or rig layout.
Designed for versatility, the TB-1 supports multiple mounting options. It comes with M6 bolts, using four threaded holes and six through-holes for secure mounting. Side mounting is possible with an optional L-plate bracket for extra flexibility. The handle is removable (22 mm diameter) to allow customization or replacement.
Its form factor is compact yet robust: dimensions are approximately 188 × 66 × 350 mm (Length × Width × Height), and it weighs about 1.3 kg net. Connectivity is via Type-C USB, compatible with PC and Simagic WheelBase platforms. The package includes the handbrake itself, USB cable, screw kit, installation guide, replaceable elastomer/rubber inserts, and warranty card.
Trak Racer, established since 2008, is honoured to be the global distributor of Simagic, delivering this cutting-edge handbrake along with hardware trusted by eSports racers and simulation professionals. We are also proud partners of the BWT Alpine F1® Team and Airbus Flight Sim, so when you choose the TB-1, you’re choosing simulation gear aligned with elite motorsport and aviation-grade fidelity.
Key Features & Specifications
| Feature | Detail |
|---|---|
| Full-Metal Construction | CNC-machined aluminium alloy body for durability and rigidity. |
| Load Cell Sensor | High-precision sensor measuring up to ~100 kg force. |
| 2-Stage Resistance System | Simulates realistic handbrake feel with increasing tension. |
| Adjustable Damping & Rubber Inserts | Customize resistance, elasticity, fatigue resistance; rubber compounds are interchangeable. |
| Dual-Mode Lever Orientation | Switch between horizontal (road car) and vertical (drift/rally) handle layouts. |
| Removable Handle | 22 mm diameter handle that is removable for customization. |
| USB-C Connection | Plug-and-play via Type-C USB, compatible with PC and Simagic bases. |
| Mounting Options | M6 bolts; 4 thread holes + 6 through holes; side mounting with optional L-plate bracket. |
| Dimensions | 188 mm × 66 mm × 350 mm (L × W × H). |
| Net Weight | 1.3 kg. |
| Package Includes | USB cable, screw kit, install guide, replaceable rubber/elastomer inserts, warranty card. |
