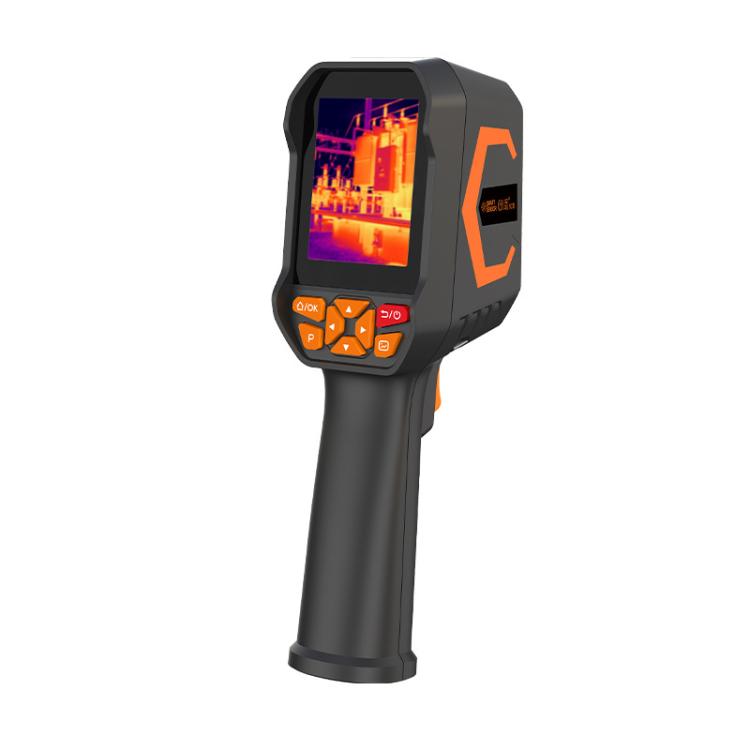

SMART SENSOR Industrial Intelligent Floor Heating Infrared Thermal Imaging Detector
1. Infrared resolution: 256×192
2. Pixel size: 12μm
3. Thermal sensitivity/NETD: 50mK @ 25°C
4. Field of view: 42x56°
5. Lens: 3.2mmF1.1
6. Visible light: 1080P; 55x83°
7. Operating wavelength: 8-14μm

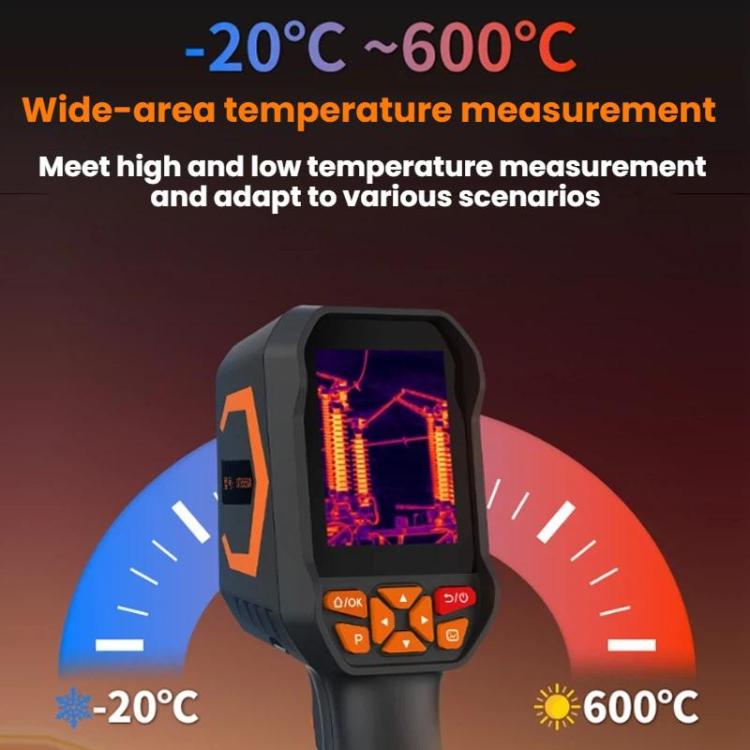

8. Temperature measurement Range: -20-600°C
9. Temperature measurement: supports full-screen high, low, center, and area temperature measurement
10. Temperature compensation: distance compensation within 5 meters
11. Temperature measurement units: °C/°F/K
12. Frame rate: 25Hz
13. Color palettes: iron red, white hot, black hot, rainbow, red hot, high contrast, lava, arctic, and cold blue

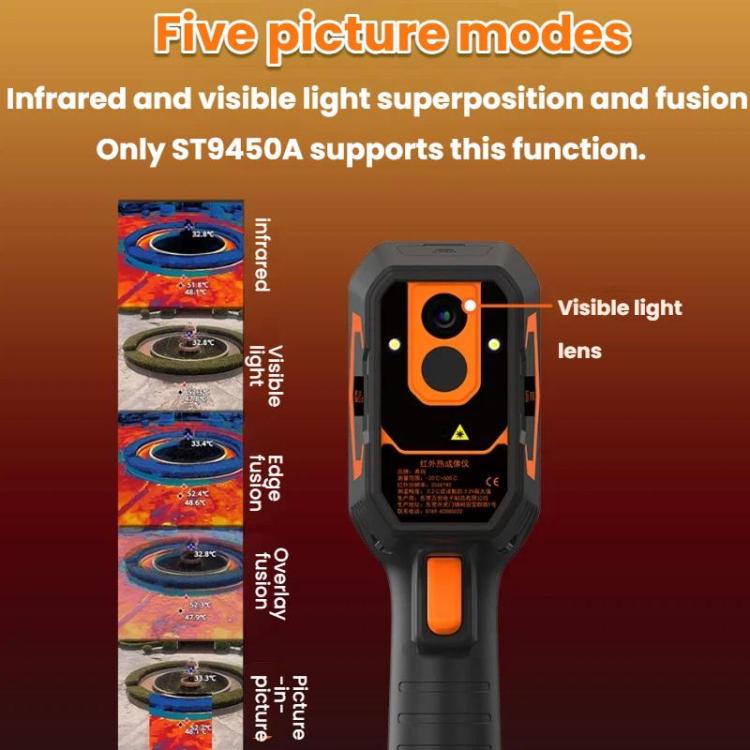

14. Image modes: edge blending, overlay blending, picture-in-picture, infrared only, visible light only
15. Image/video formats: JPEG/MP4
16. Temperature analysis: PC analysis tool
17. Emissivity: adjustable from 0.01 to 0.99

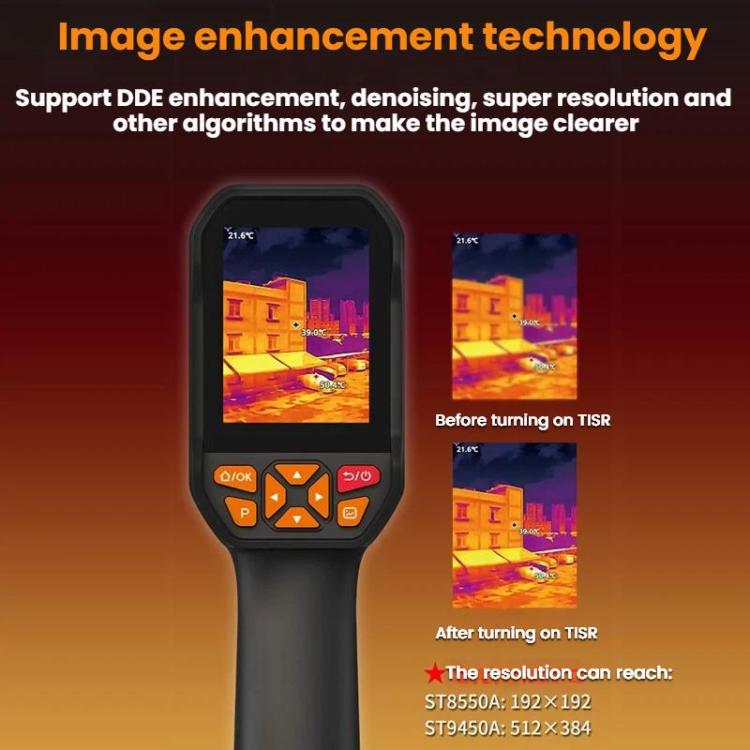

18. TisoView: supports DDE enhancement, denoising, super-resolution, and other technologies for sharper images. Resolutions reach up to 192x192 (ST8550A) and 512x384 (ST9450A).
19. Screen size: 2.8 inches
20. Screen brightness: adjustable in 10 levels
21. Alarm settings: high and low temperature alarm settings, beeping alarm
22. Data port: type-C (supports charging and data transfer)
23. Laser pointer: Supported
24. Fill light: LED

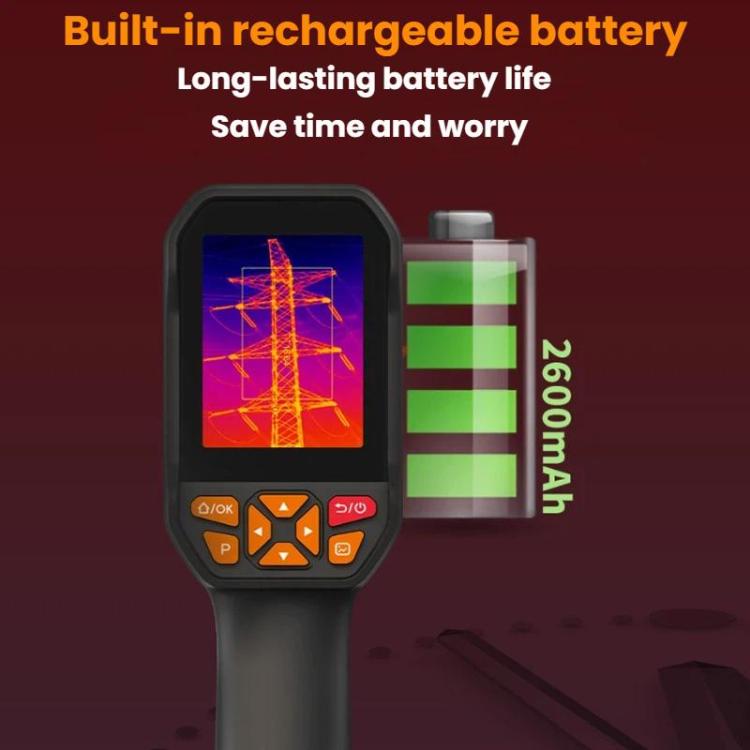

25. Battery: 2600mAh lithium battery
26. Storage: 8GB
27. Operating time: approximately 4 hours
28. Auto power off: settable timer for automatic power off after extended periods of inactivity
29. Language switching: supports English, French, Spanish, Portuguese, German, Russian, Arabic, Japanese, Korean, and Simplified and Traditional Chinese
30. Time Settings: year/month/day hour/minute/second
31. Weight: 354g
32. Dimensions: 225x62x81mm
Description:

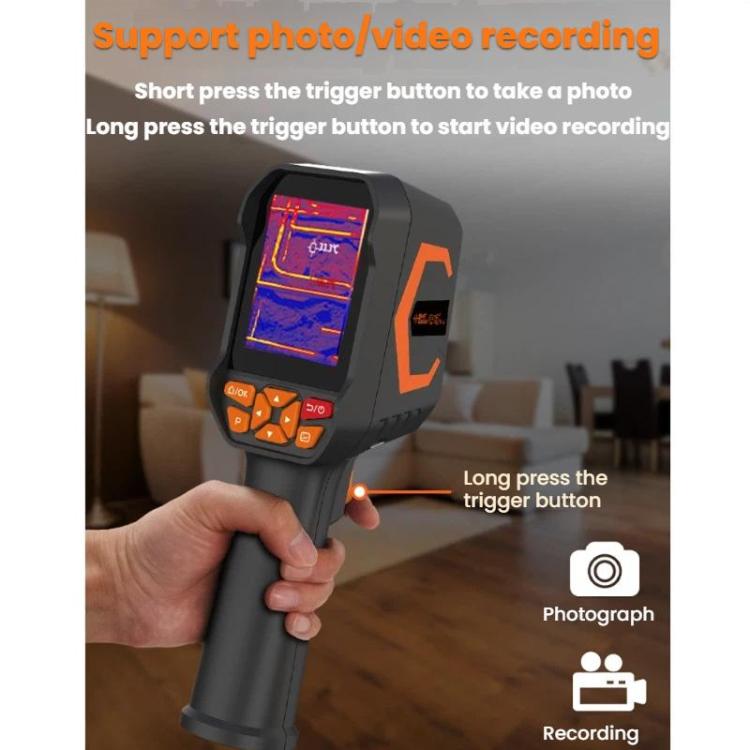

1. One-touch measurement: Short press trigger button takes photos, long press records videos
2. High-definition display with adjustable brightness, suitable for both bright and dark environments

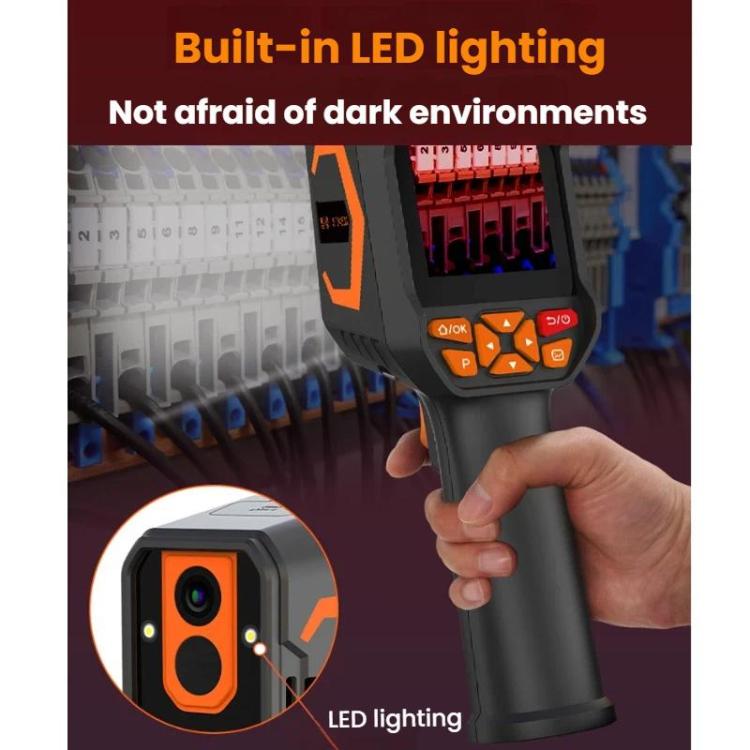

3. Built-in LED lighting for optimal performance in dark environments

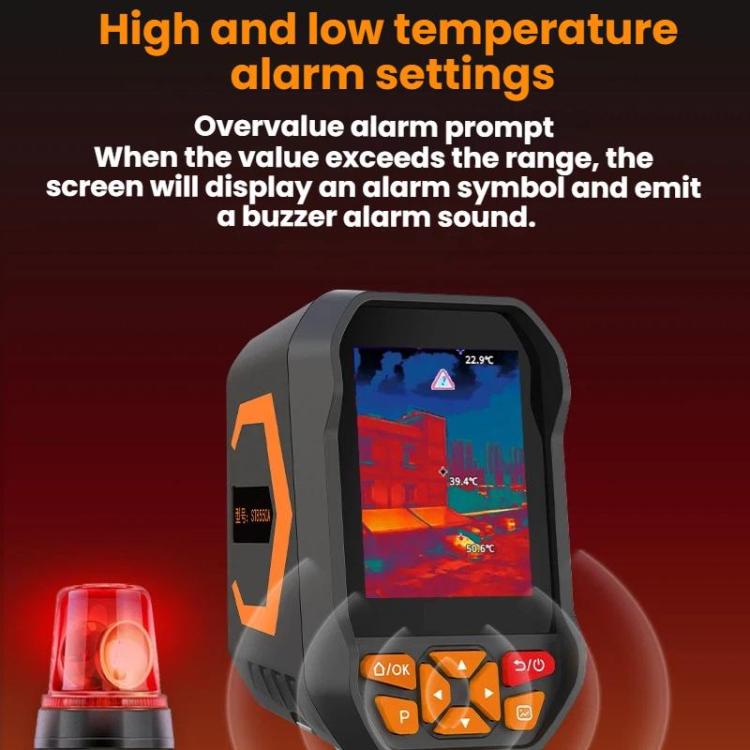

4. High and low temperature alarm settings, with alarm alerts. When out of range, the screen displays an alarm symbol and emits a beeping sound

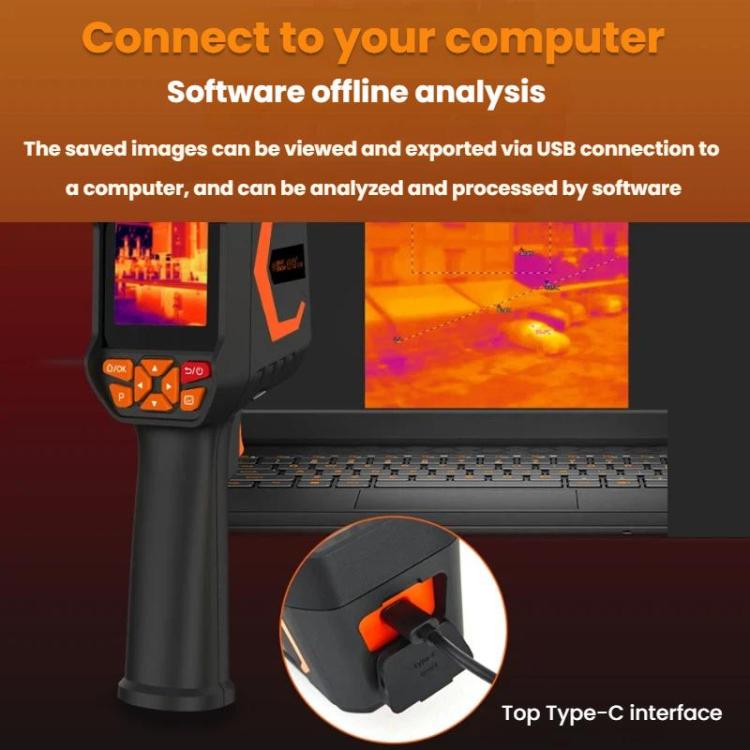

5. Saved images can be viewed and exported to a computer via USB connection and analyzed using software

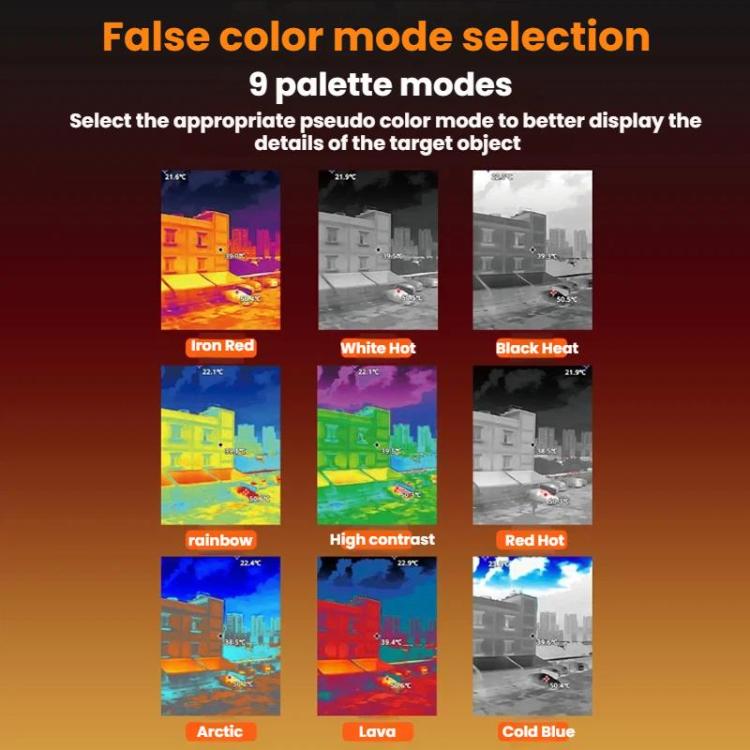

6. Nine color palette modes: Choose the appropriate pseudo-color mode to enhance object detail.

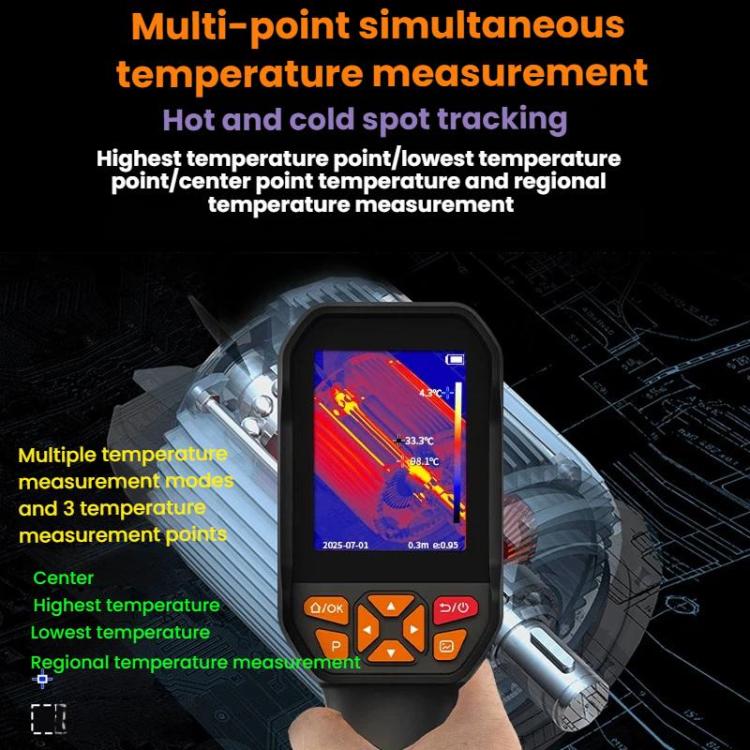

7. Simultaneous temperature measurement at multiple locations, tracking hot and cold spots.
8. Suitable for a variety of applications, including power equipment, fire emergency response, steel and metallurgy, scientific research, chemical production, and home floor heating.
Packaging:
Color box x 1
Cloth bag x 1
Factory inspection report x 1
Device x 1
Lanyard x 1
USB flash drive x 1
Data cable x 1
Certificate of conformity/warranty card x 1
Instruction manual x 1
