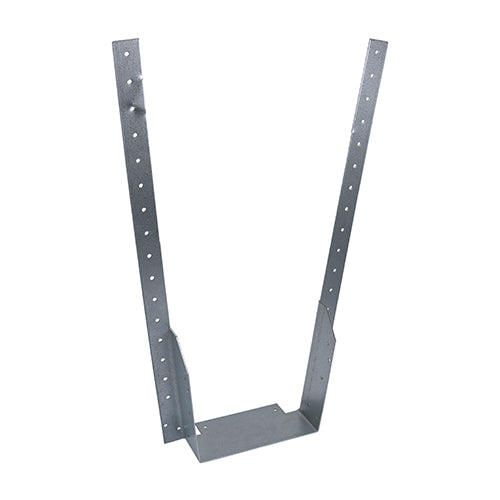

Timber Hangers – Long Leg – Galvanised - 150 × 150–250mm (10 Pack)
Designed for deeper timber-to-timber applications, this Long Leg Timber Hanger is ideal for loft conversions and under-slung floor joist installations where the hanger extends below the supporting beam. Manufactured from pre-galvanised carbon steel, it provides reliable structural support and corrosion resistance for internal and sheltered construction environments.
The extended leg design allows installation with joists up to 250mm deep, making it suitable for modern floor systems and structural timber framing projects.
Key Features
- Long leg design for deeper joists and under-slung installations.
- Suitable for 150mm wide joists from 150–250mm deep.
- Pre-galvanised steel construction for corrosion resistance.
- 50mm bearing for stable joist support.
- 46 nail holes compatible with 3.75mm nails for secure fixing.
- Manufactured from 1.2mm thick steel for strength and durability.
- Designed to meet Eurocode 5 requirements (Service Class 2).
Typical Applications
- Loft conversions requiring deeper floor joists.
- Under-slung joist installations where hangers extend below beams.
- Timber framing and floor construction in residential and commercial projects.
Specifications
| Finish | Galvanised |
|---|---|
| Material | Carbon Steel |
| Type | Long Leg Timber Hanger |
| Joist Size (W × H) | 150 × 150–250mm |
| Width (W) | 150mm |
| Leg Length (L) | 450mm |
| Bearing (B) | 50mm |
| Thickness | 1.2mm |
| Nail Holes | 46 (3.75mm) |
| Approval | BS 5268 |
| Eurocode / Service Class | Eurocode 5 / Service Class 2 |
| Safe Working Load – Short Term | 14.02kN |
| Safe Working Load – Medium Term | 13.35kN |
| Safe Working Load – Long Term | 11.68kN |
| Corrosion Rating | 2 – Occasionally damp/wet environments |
| Pack Type | Unit |
| Pack Quantity | 1 |
| Packs Received | 10 |
| Pack Dimensions | 50 × 150 × 450mm |
| Pack Weight | 0.5kg |
