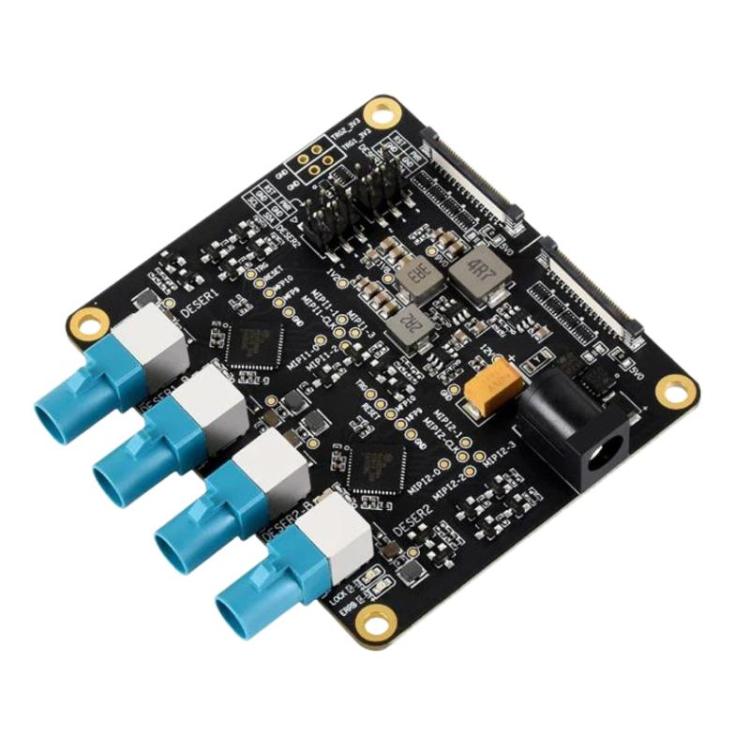

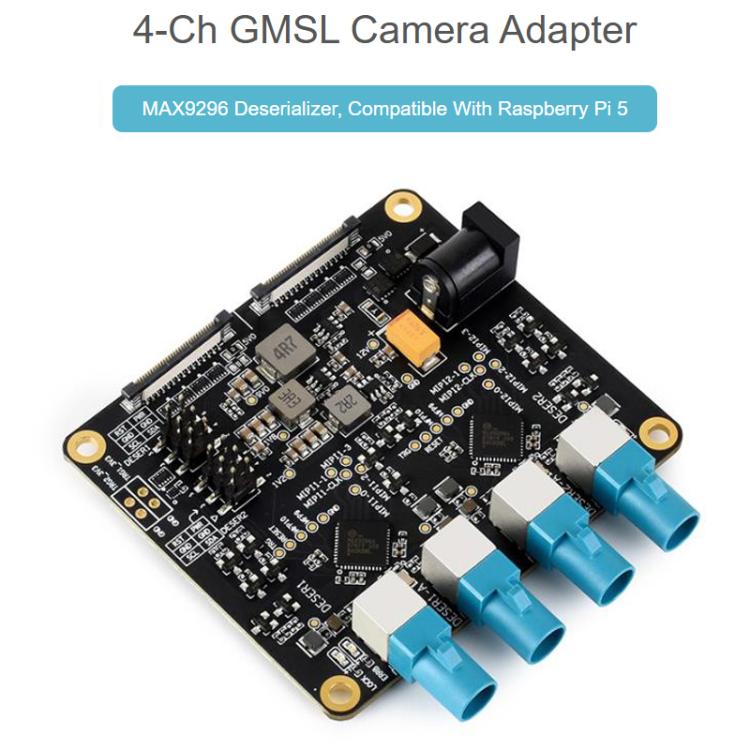

Waveshare 34128 4-Ch GMSL Camera Adapter Board, Equipped With MAX9296 Deserializer, For Raspberry Pi 5, EU Plug, UK Plug, US Plug
1. Support simultaneous connection of up to four GMSL cameras
2. Support up to 2 x 8M resolution (3840 x 2160) or 4 x 3M resolution (1920 x 1536) video signals
3. Adopt the MAX9296 deserializer solution
4. Support synchronous signal connection of cameras via GPIO
5. Support Raspberry Pi 5 motherboard
Parameters
1. Demultiplexer: MAXIM (ADI) MAX9296
2. Supports master control: Raspberry Pi 5
3. Supports serial converter models: MAX9295, MAX96717 and MAX96705, etc.
4. Input: GMSL 1/2 (FAKRA Z connector x 4)
5. Output: MIPI CSI (22PIN CSI interface x 2)
6. Supported: GMSL camera models: ISX031, etc.
7. Power input: 12V/1A (5.5 x 2.1mm)
8. Operating temperature: -20°C - 65°C
Packaging list:
- GMSL-Module-Board-4CH-A x 1
- 22-pin FPC connector x 2
- Power adapter 12V/2A x 1
