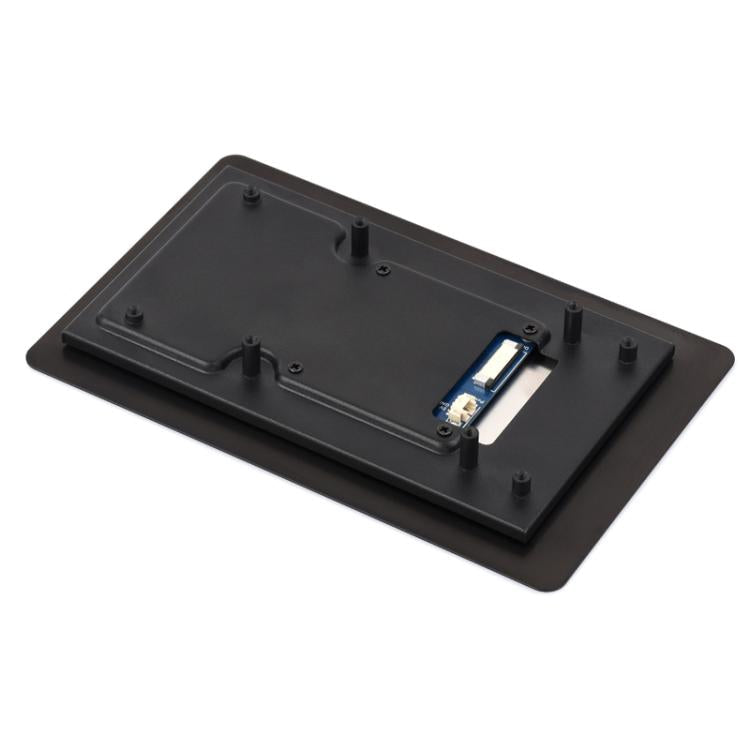

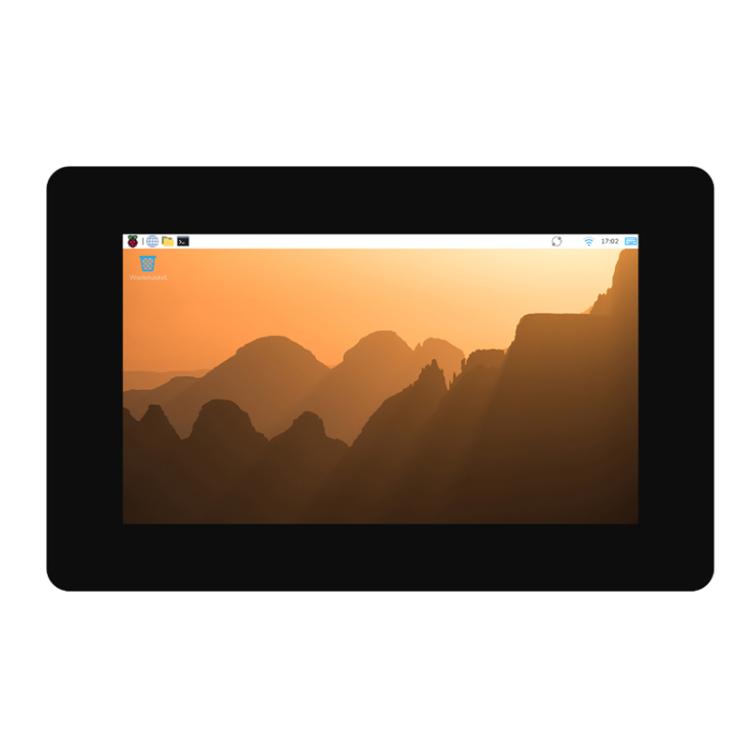

WAVESHARE 5-Inch DSI Capacitive Touchscreen IPS Tempered Glass Panel, Standard, With Case
1. Supports software-controlled backlight brightness
2. IPS display panel, excellent display performance, 178-degree viewing angle
3. Supports five-point touch; actual touch points depend on the software system
4. Tempered glass panel, hardness up to 6H
5. Fully laminated screen, high clarity, dustproof
6. Default display is portrait mode, resolution is 720 x 1280 (HxV), landscape mode can be configured via software settings
7. Supports Raspberry Pi OS, five-point touch; ESP32-P4 supports LVGL custom screen, five-point touch; RK3506 supports Buildroot, Ubuntu, etc., five-point touch; RK3576 supports Buildroot, Debian, Ubuntu, Android, etc., five-point touch

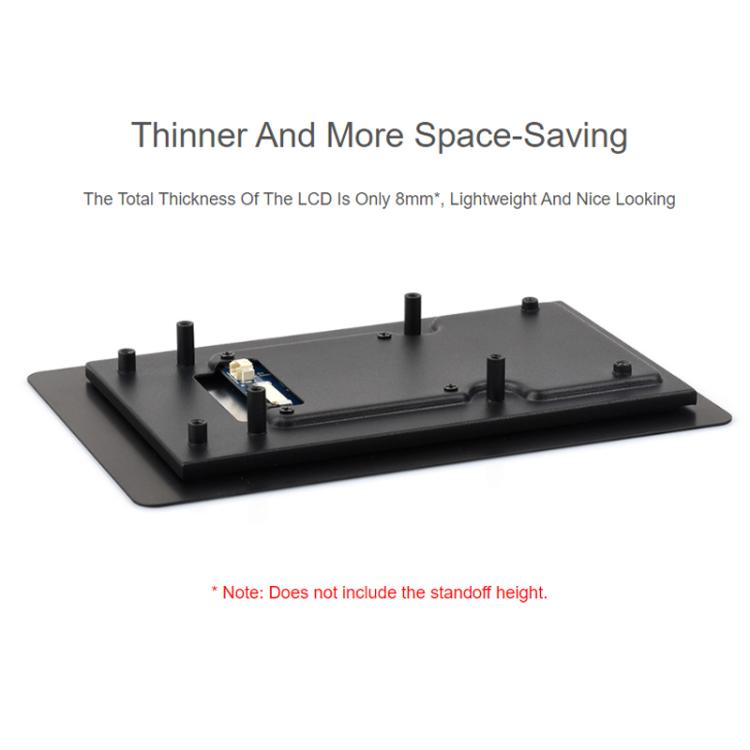

8. Note: The version with a case only supports Raspberry Pi 5
Standard version:
1. 5-DSI-TOUCH-B touchscreen x 1
2. MIPI-DSI-Cable-12cm x 1
3. MX1.25 2PIN to 2.54 3PIN cable x 1
4. FFC cable 22PIN 200mm (reverse direction) x 1
5. FFC cable 22PIN 100mm (reverse direction) x 1
6. MX1.25 2PIN to MX1.25 4PIN approx. 150mm x 1
7. Copper pillar case x 1
Casing version packaging:
1. 5-DSI-TOUCH-B touchscreen x 1
2. Black casing x 1
3. MIPI-DSI-Cable-12cm x 1
4. MX1.25 2PIN to 2.54 3PIN cable x 1
5. FFC cable 22PIN 200mm (reverse direction) x 1
6. 7. FFC cable 22PIN 100mm (reverse direction) x 1
8. MX1.25 2PIN to MX1.25 4PIN approx. 150mm x 1
9. DSI-Cable-12cm-C x 1
10. Silicone button x 1
11. Copper pillar bag x 1
12. Screw bag x 1
