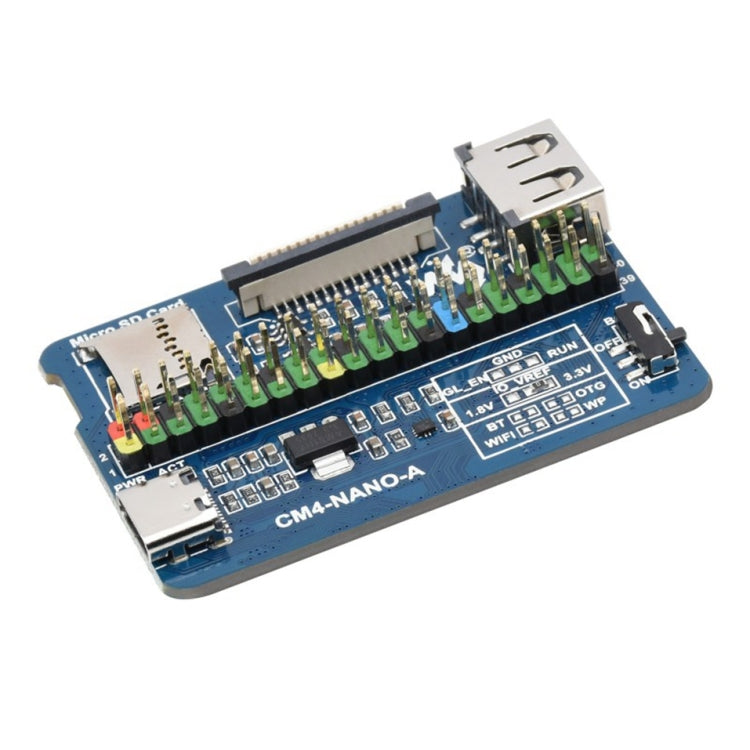

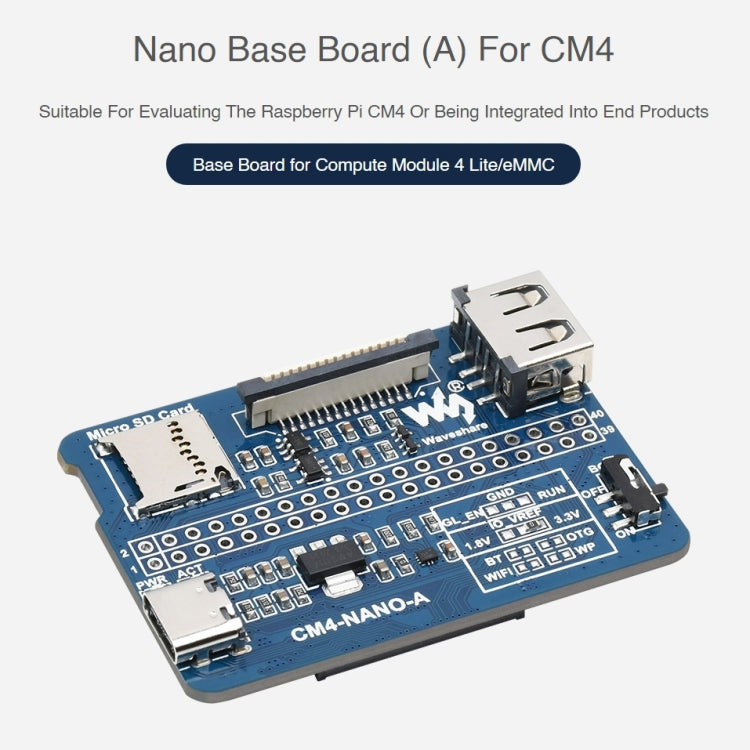

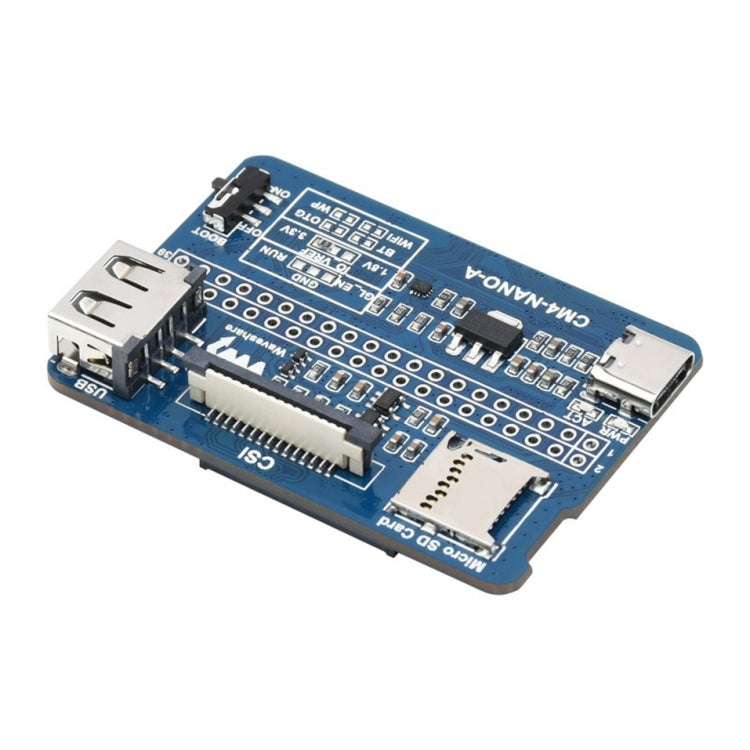

Waveshare Nano Base Board A for Raspberry Pi CM4, Nano Base Board A

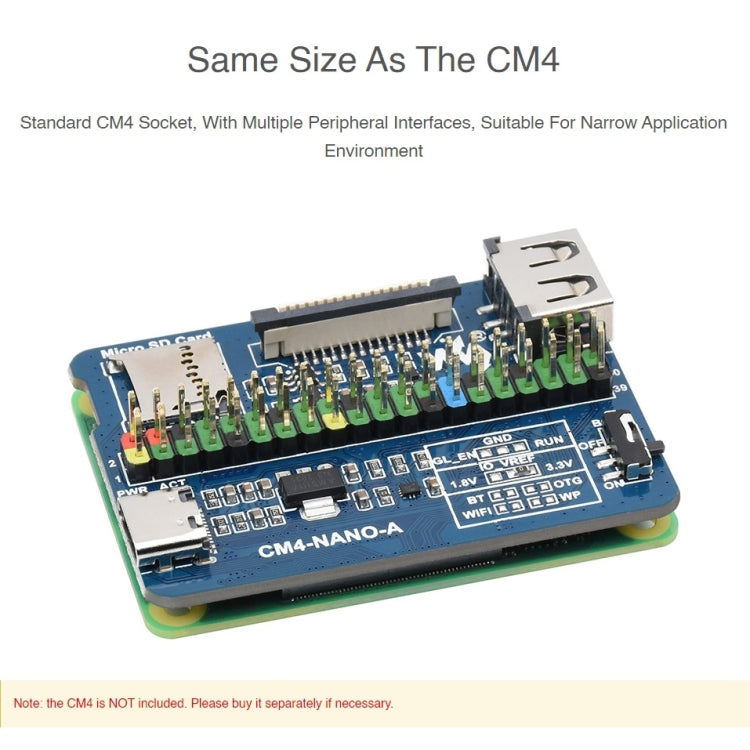

2. Standard CM4 socket, with multiple peripheral interfaces, suitable for narrow application environment

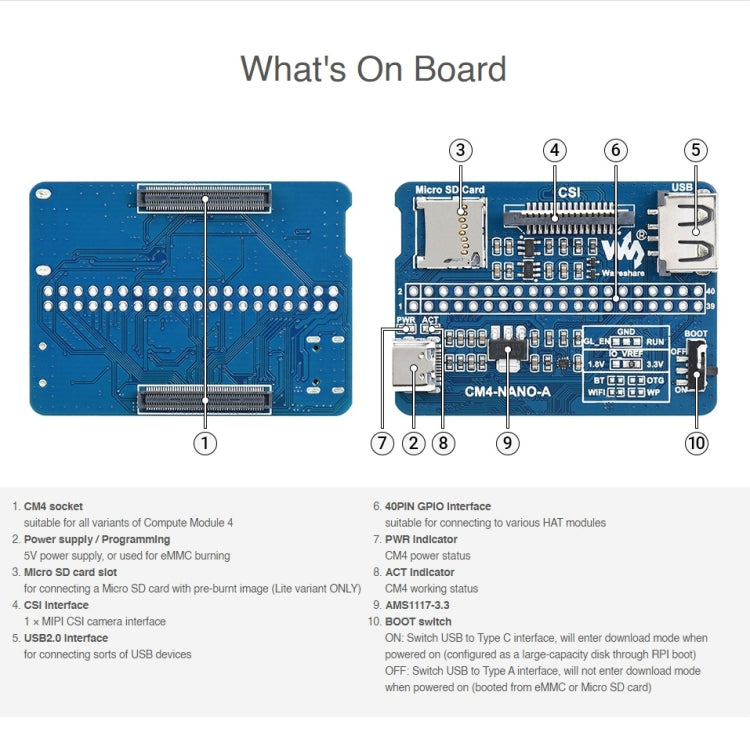

Specifications:

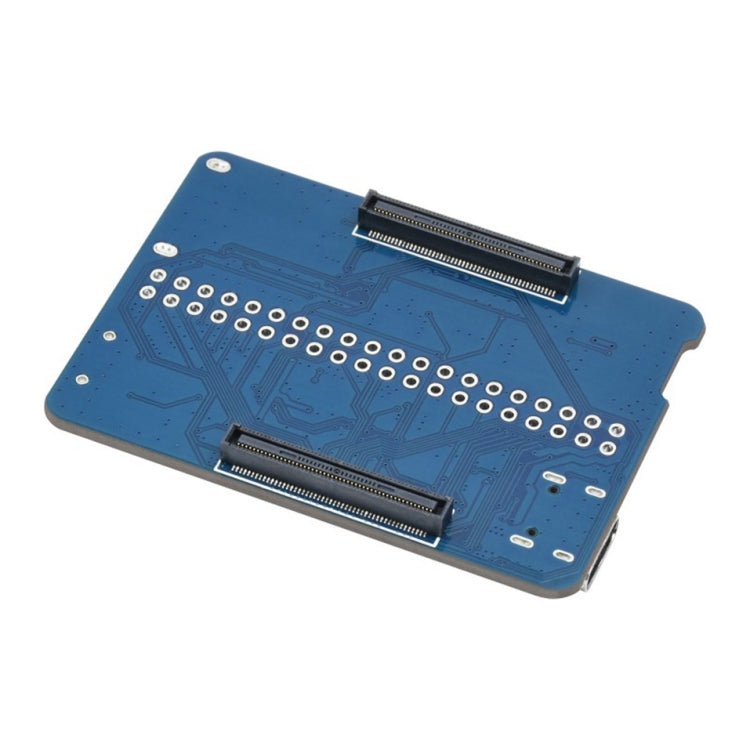

1. CM4 socket: Suitable for all variants of Compute Module 4
2. Connector: Raspberry Pi 40PIN GPIO interface x 1
3. USB: USB 2.0 Type A interface x 1
4. Camera: MIPI CSI-2 port x 1 (15pin 1.0mm FPC connector)
5. Storage: Micro SD card socket for Compute Module 4 Lite (without eMMC) variants
6. Power: 5V

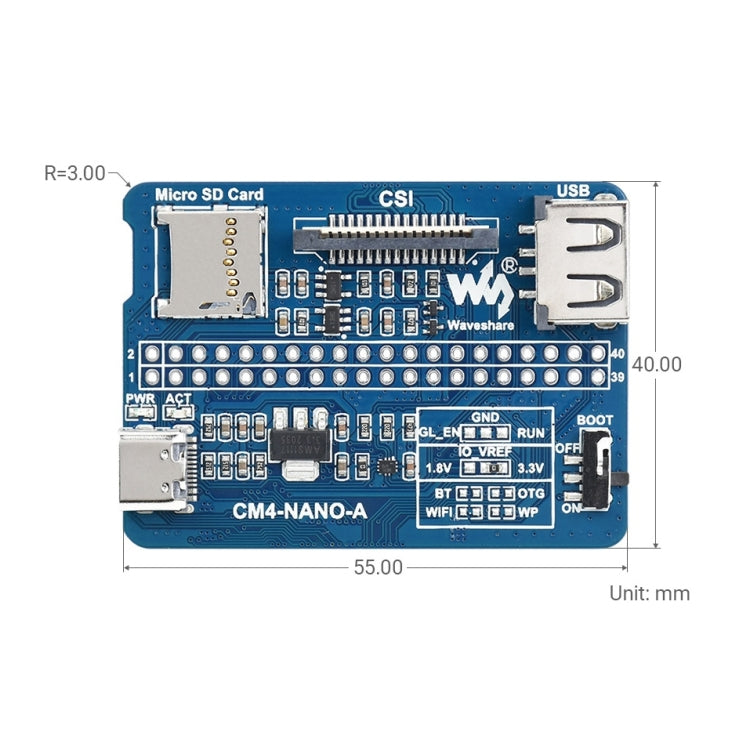

7. Size: 55 x 40mm
Package list
1. CM4-NANO-A x1
2. 2 x 20PIN color-coded straight pinheader x 2
| Package Weight |
|
