Waveshare RGB Full-color LED Matrix Panel, 3mm Pitch, 64 × 32 Pixels, Adjustable Brightness,, Standard Version, GOB Version

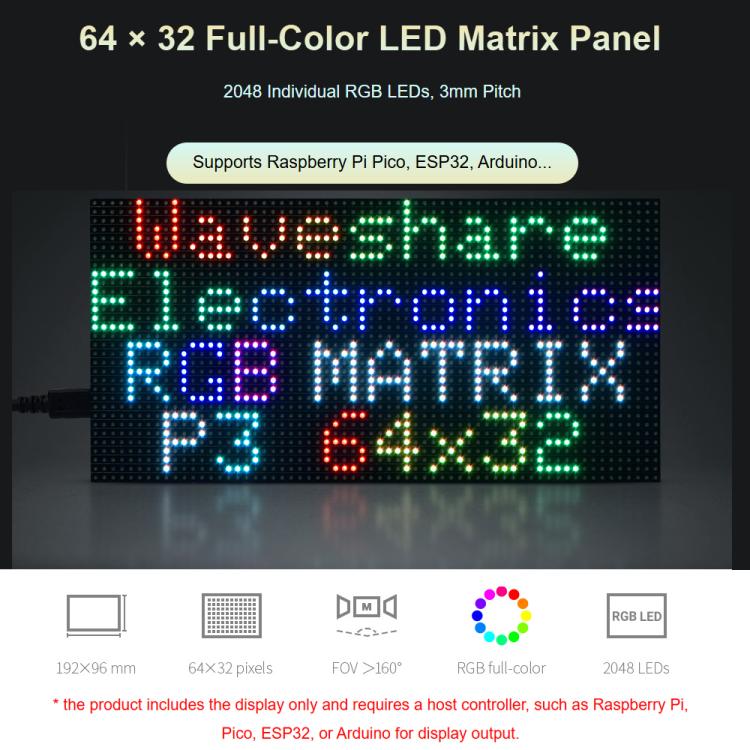

1. This product is a 64 × 32 resolution RGB full-color LED dot matrix module. It integrates 2048 LEDs, features dual HUB75 interfaces, and supports cascading expansion and quick integration. The GOB version utilizes enhanced packaging technology to improve protection performance and usage reliability.
2. Utilizes 2048 RGB LEDs for full-color display with adjustable brightness.
3. Resolution is 64 × 32 with a pixel pitch of 3mm, capable of displaying text, color images, or animations.

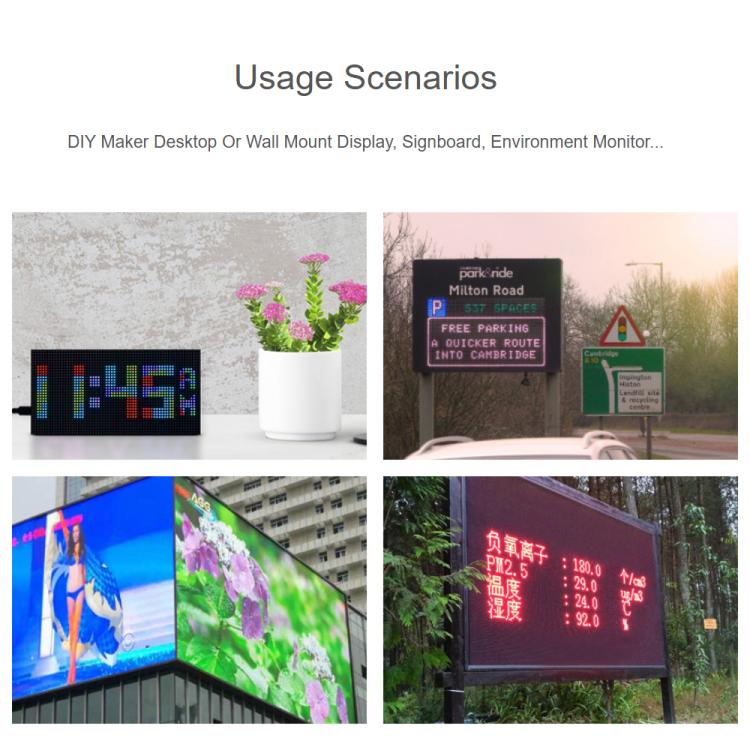

4. Dimensions are 192 × 96 (mm), offering a moderate size ideal for DIY desktop or wall-mounted display applications.

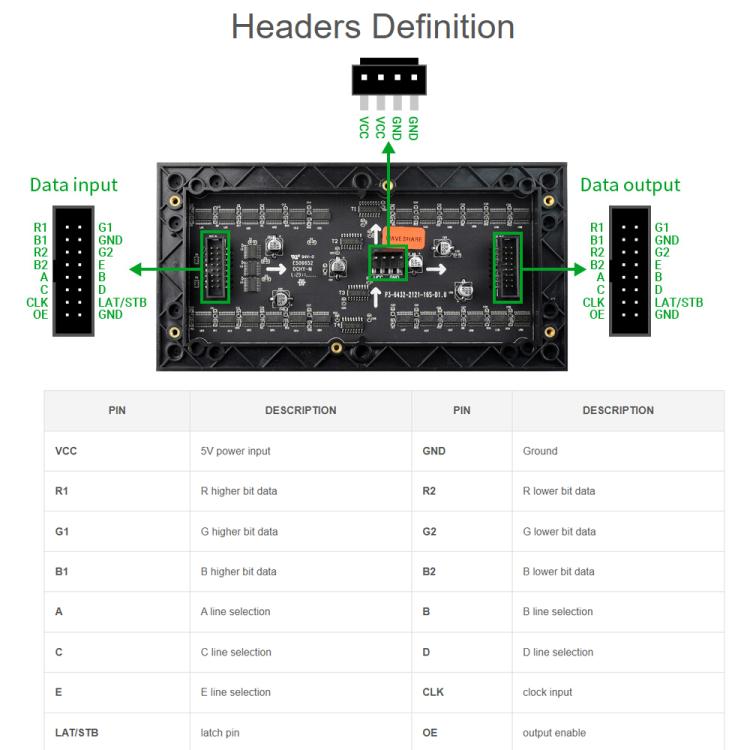

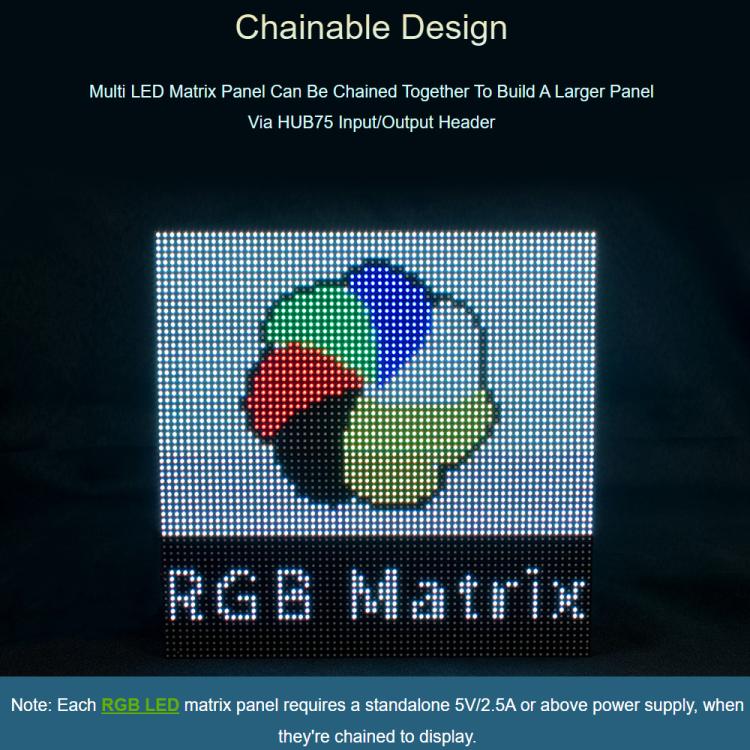

5. Onboard two HUB75 interfaces: one for input (to connect a controller) and one for output (to cascade multiple screens).

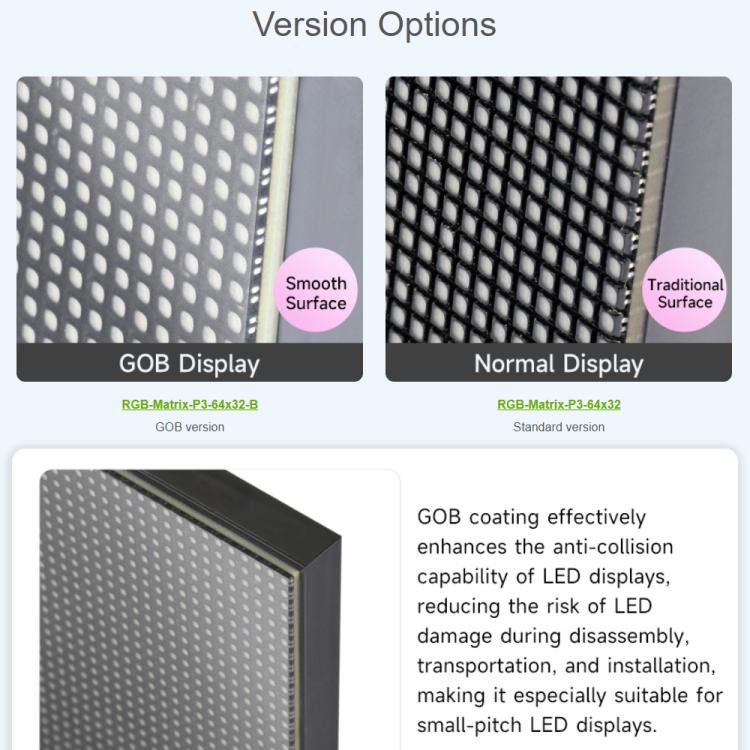

6. GOB technology achieves resistance to impact, water, moisture, and dust.
7. This is a bare screen requiring a main control board (such as Raspberry Pi Pico, ESP32, or Arduino) for display.
Parameters:

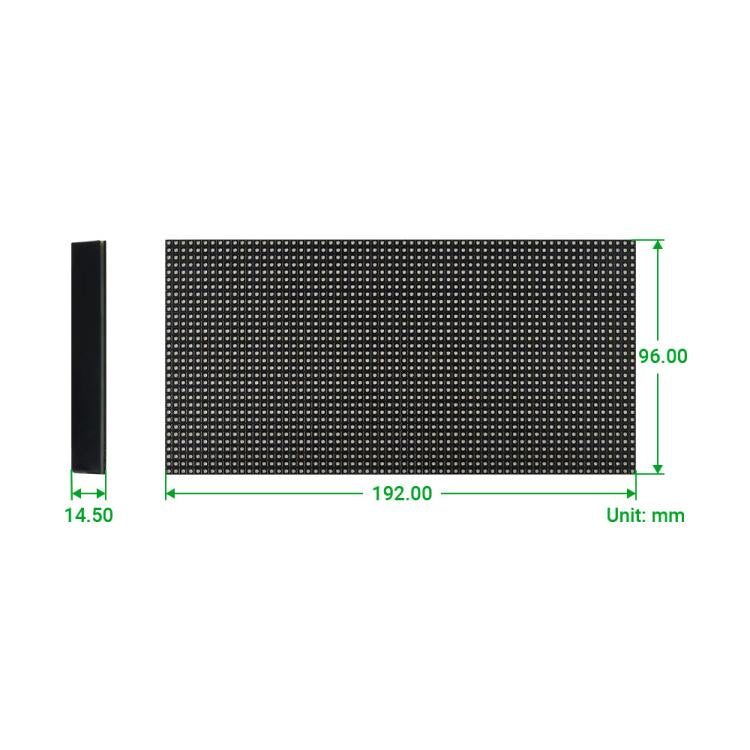

1. Product Dimensions: 192 × 96 (mm)
2. Resolution: 64 × 32 (2048 DOTS)
3. Pixel Pitch: 3mm
4. Pixel Composition: 1R1G1B
5. Viewing Angle: Greater than or equal to 160 degrees
6. Control Method: Synchronous Control
7. Drive Method: 1/16 Scan
8. Interface Type: HUB75
9. Supply Voltage: 5V / 2.5A (VH4 socket input)
10. Power Consumption: Less than or equal to 12W
