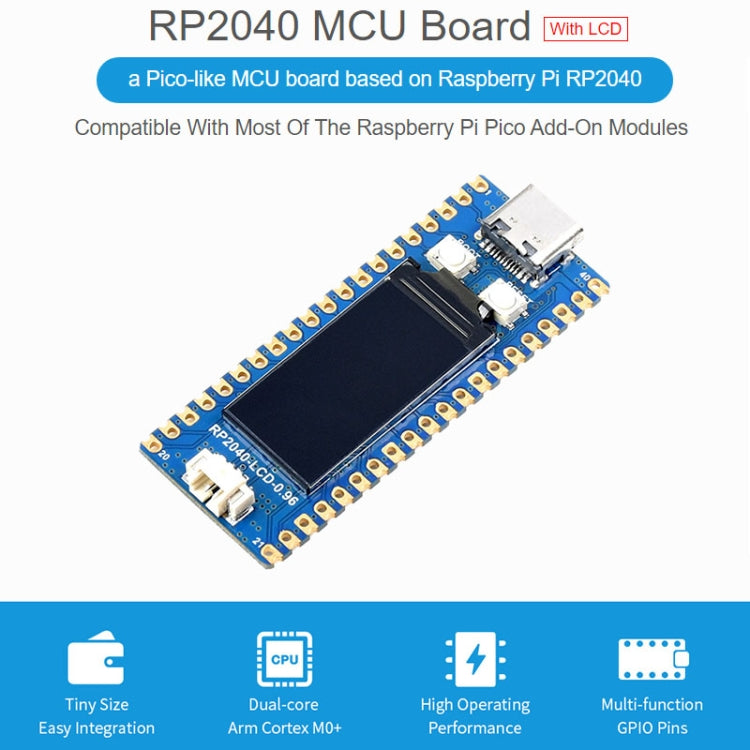

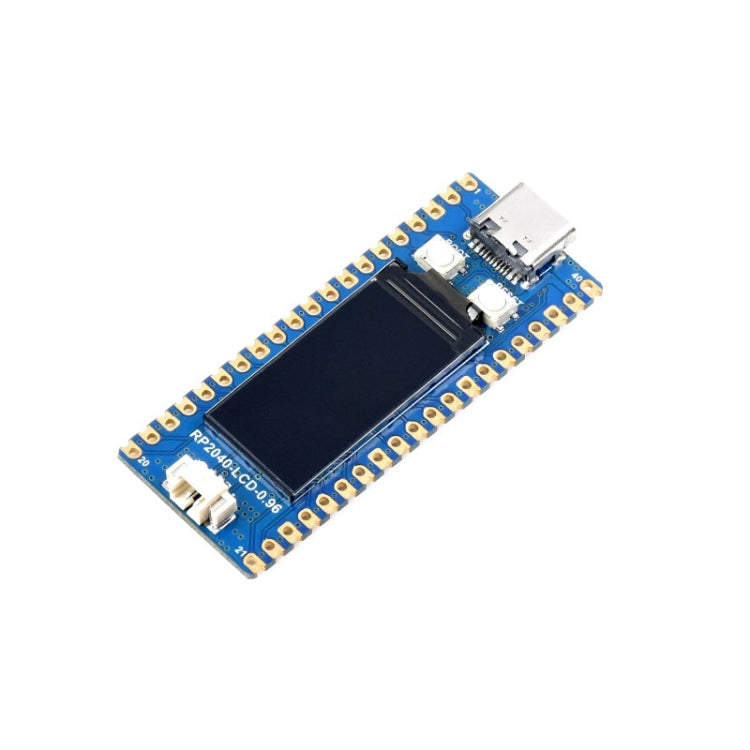

Waveshare RP2040-LCD-0.96 Pico-like MCU Board Based on Raspberry Pi MCU RP2040, with Pinheader, RP2040-LCD-0.96

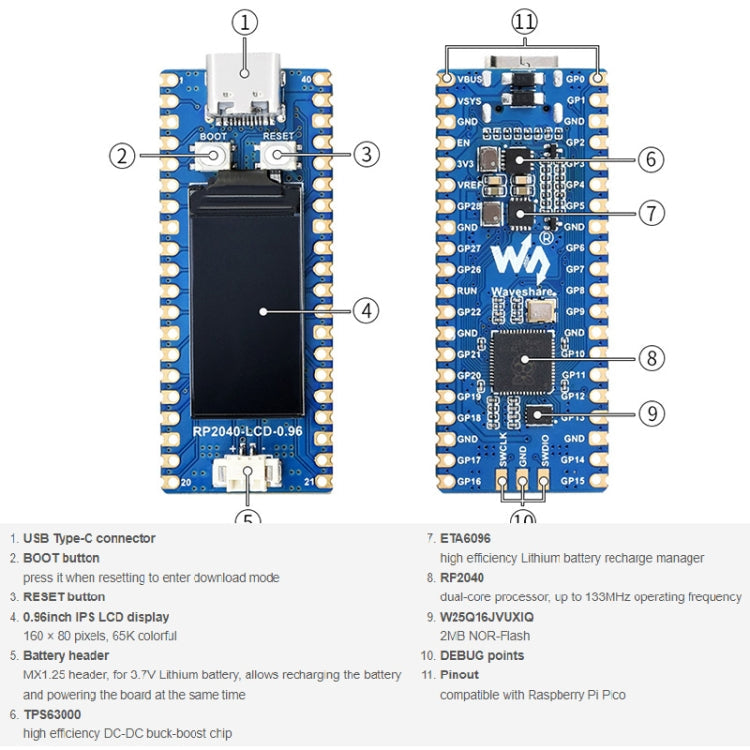

In additional, there are also onboard 0.96inch IPS display, Lithium battery recharge/discharge header, and high efficiency DC-DC buck-boost chip.
Key features include:
1. RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
2. Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
3. 264KB of SRAM, and 2MB of on-board Flash memory
4. USB-C connector, keeps it up to date, easier to use
5. 0.96 inch 160x80 pixels 65K colorful IPS LCD display
6. Lithium battery recharge/discharge header, suitable for mobile devices
7. Onboard DC-DC chip TPS63000, high efficiency DC-DC buck-boost chip, 1.8A current switch
8. Castellated module allows soldering direct to carrier boards (there should be dedicated cut-out for embedding the bottom components)
9. USB 1.1 with device and host support
10. Low-power sleep and dormant modes
11. Drag-and-drop programming using mass storage over USB

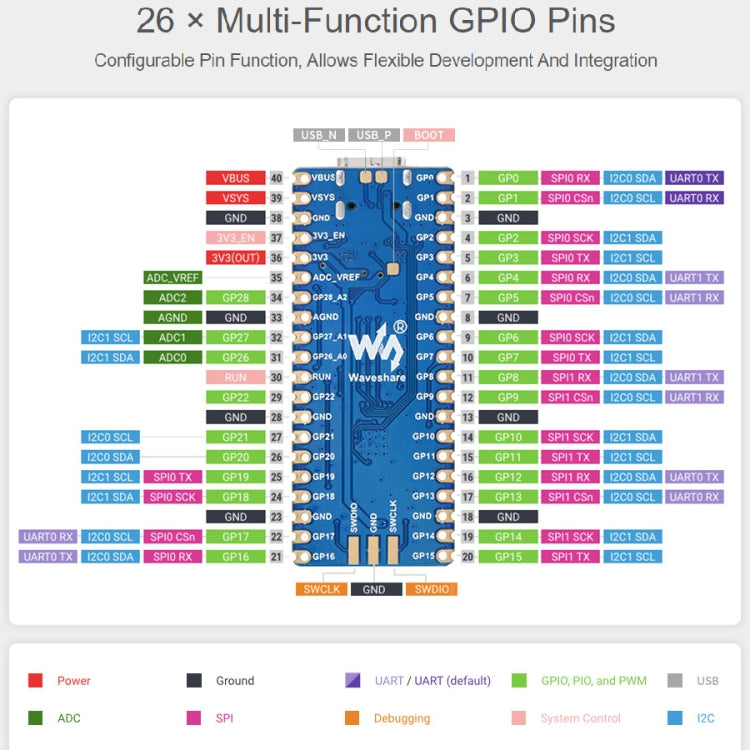

13. 26 x multi-function GPIO pins
14. 2 x SPI, 2 x I2C, 2 x UART, 3 x 12-bit ADC, 16 x controllable PWM channels
15. Accurate clock and timer on-chip
16. Temperature sensor
17. Accelerated floating-point libraries on-chip
18. 8 x Programmable I/O (PIO) state machines for custom peripheral support
