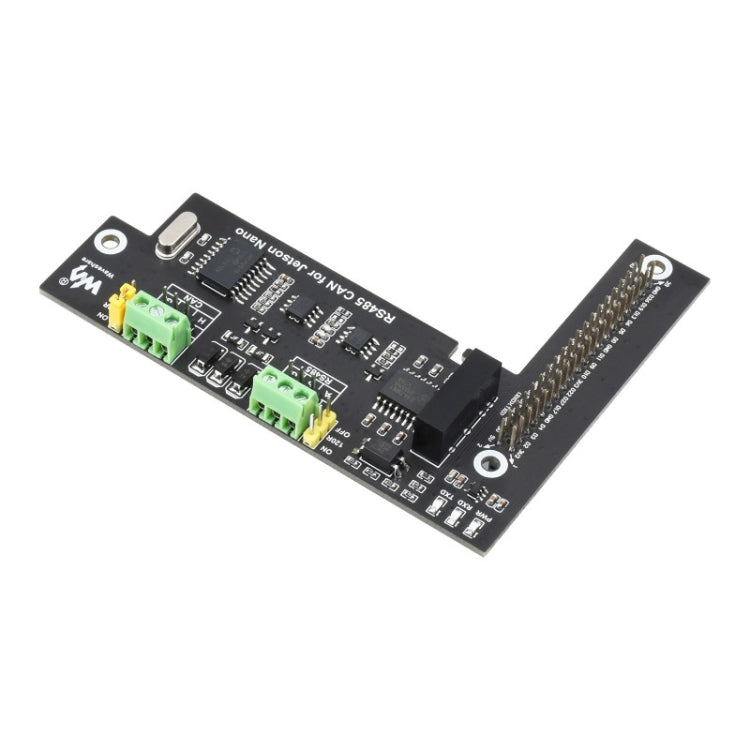

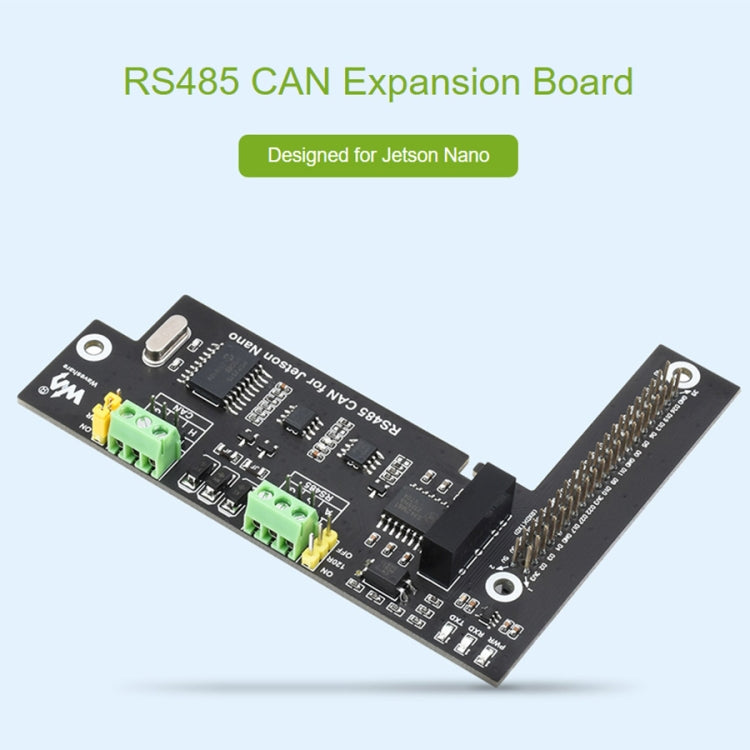

Waveshare RS485 CAN Expansion Board for Jetson Nano, Digital Isolation, Built-In Protection Circuit

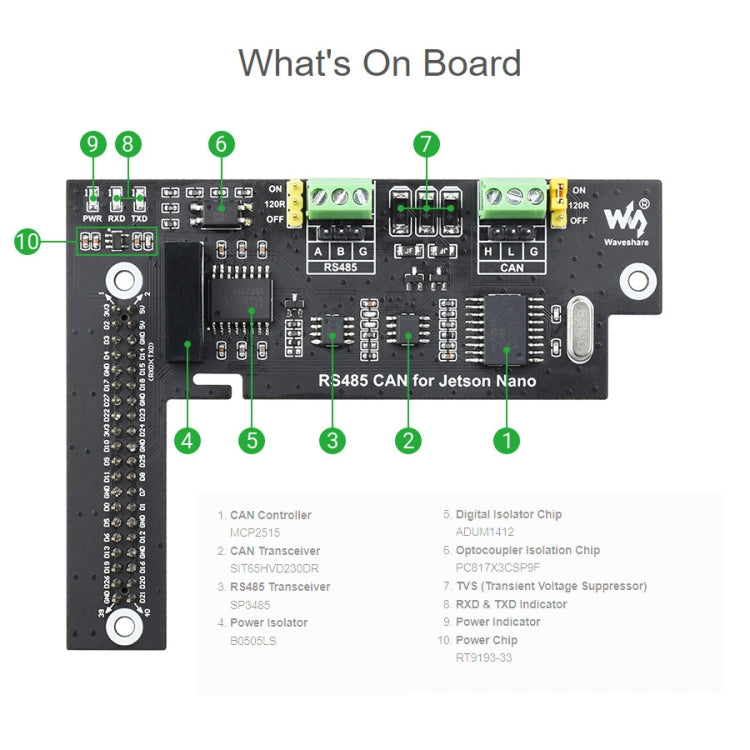

2. Onboard CAN controller MCP2515 via SPI interface, matching with SIT65HVD230DR transceiver

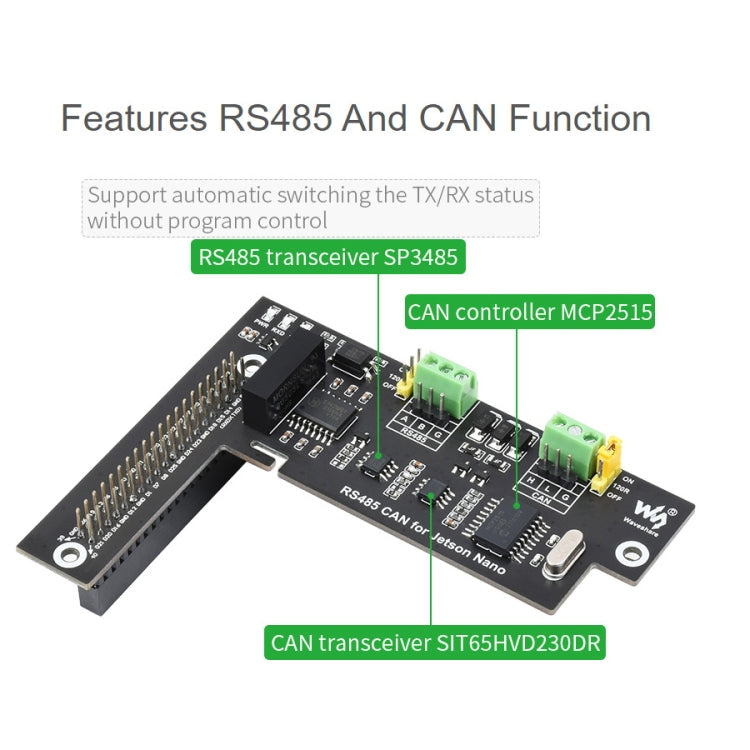

3. Features RS485 function, controlled via UART, half-duplex communication, supports automatic TX/RX control without programming, onboard transceiver SP3485

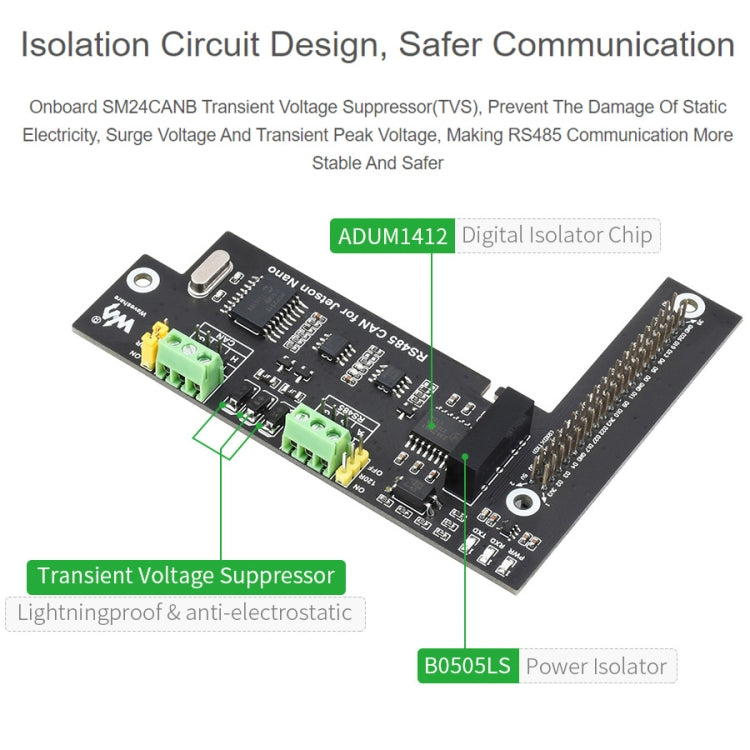

4. Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit for RS485 transceiving, light-ningproof & anti-electrostatic
5. Onboard digital isolation chip, safer signal isolation communication and better stability and anti-interference
6. Reserved control pins, allows to work with other control boards
7. Comes with development resources and manual (examples in python)
Specifications
1. CAN Controller: MCP2515
2. CAN transceiver: SIT65HVD230DR
3. RS485 transceiver: SP3485
4. Working voltage: 3.3V

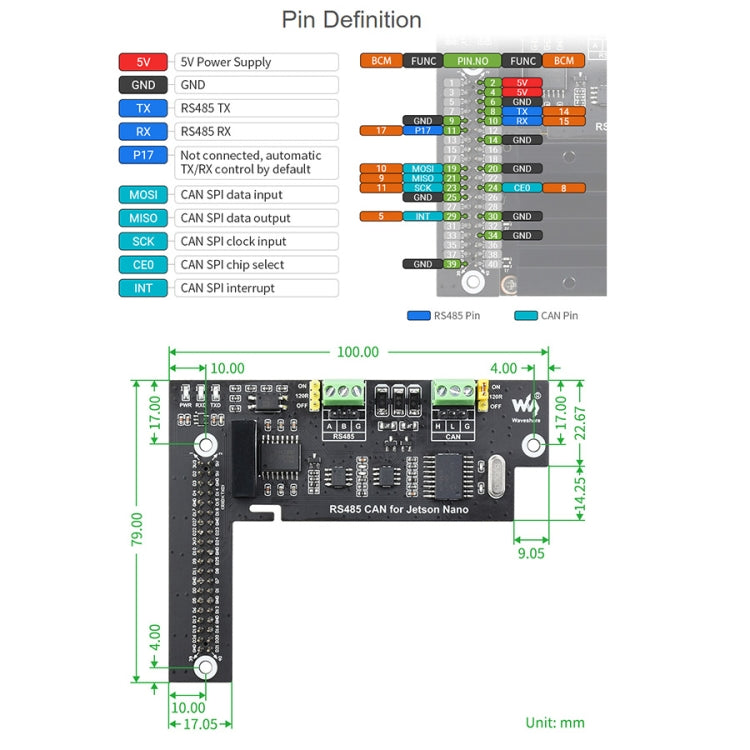

5. Mounting hole size: 3.0mm
6. Dimensions: 100 x 79 mm
Package List
1. RS485 CAN for Jetson Nano x1
2. Screws pack x1
